Toyota LEXUS SC430 — HORN

86510HORN ASSY, HIGH PITCHED

main86510-24080i200101-200508

main86510-24100i200508

KOREA SPEC

86510AHORN ASSY, SECURITY

main86510-24090i200101-200508

86520HORN ASSY, LOW PITCHED

main86520-24050i200101-200508

main86520-24060i200508

KOREA SPEC

9011906390

main90119-06390

9011908718

main90119-08718

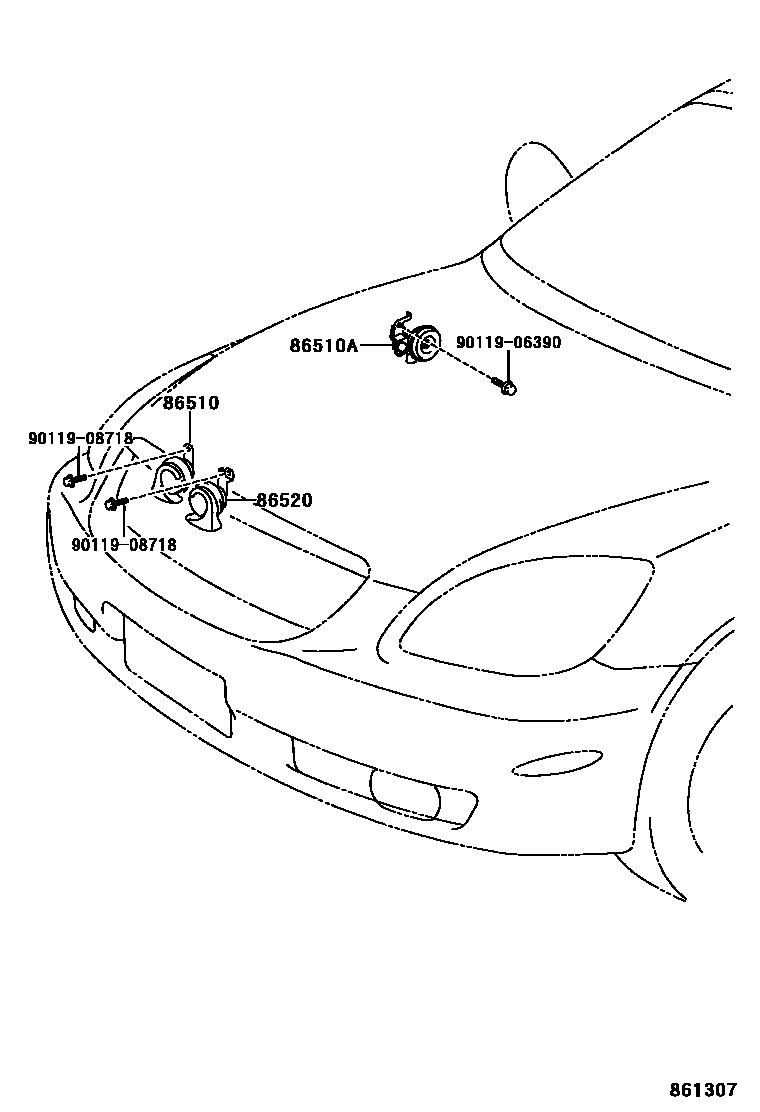

5 parts on this diagram · 1 diagram in section

HORN for Toyota LEXUS SC430

This section contains 5 genuine Toyota parts for the HORN system of the Toyota LEXUS SC430. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED.
