Toyota LEXUS SC430 — HEATING & AIR CONDITIONING - COMPRESSOR

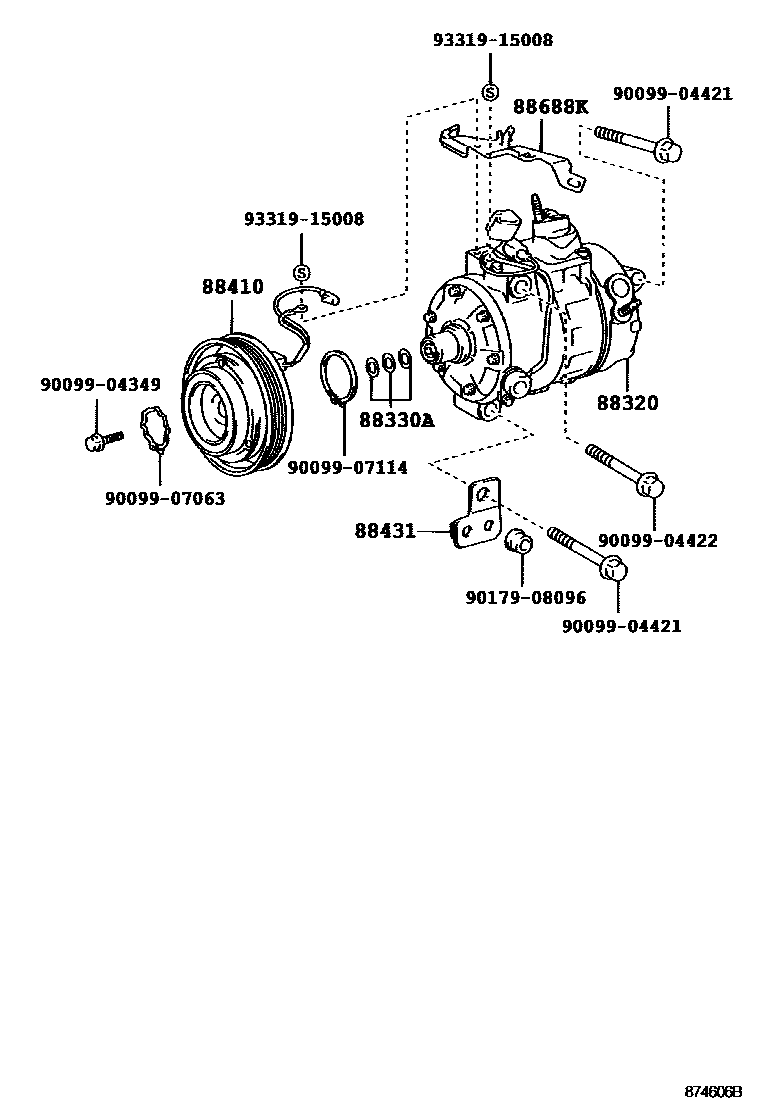

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-3A230i200101-200409

main88320-3A231i200409-200508

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200101-200508

88410CLUTCH ASSY, MAGNET

main88410-3A210i200508

main88410-50110i200101-200508

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88433-50010i200101-200508

88688KBRACKET, COOLER COMPRESSOR

main88688-3A600i200101-200508

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907063

main90099-07063

9009907114

main90099-07114

9017908096

main90179-08096

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota LEXUS SC430

This section contains 12 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota LEXUS SC430. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1, BRACKET, COOLER COMPRESSOR.

Toyota LEXUS SC430 HEATING & AIR CONDITIONING - COMPRESSOR — Parts Diagram | EPC Data
