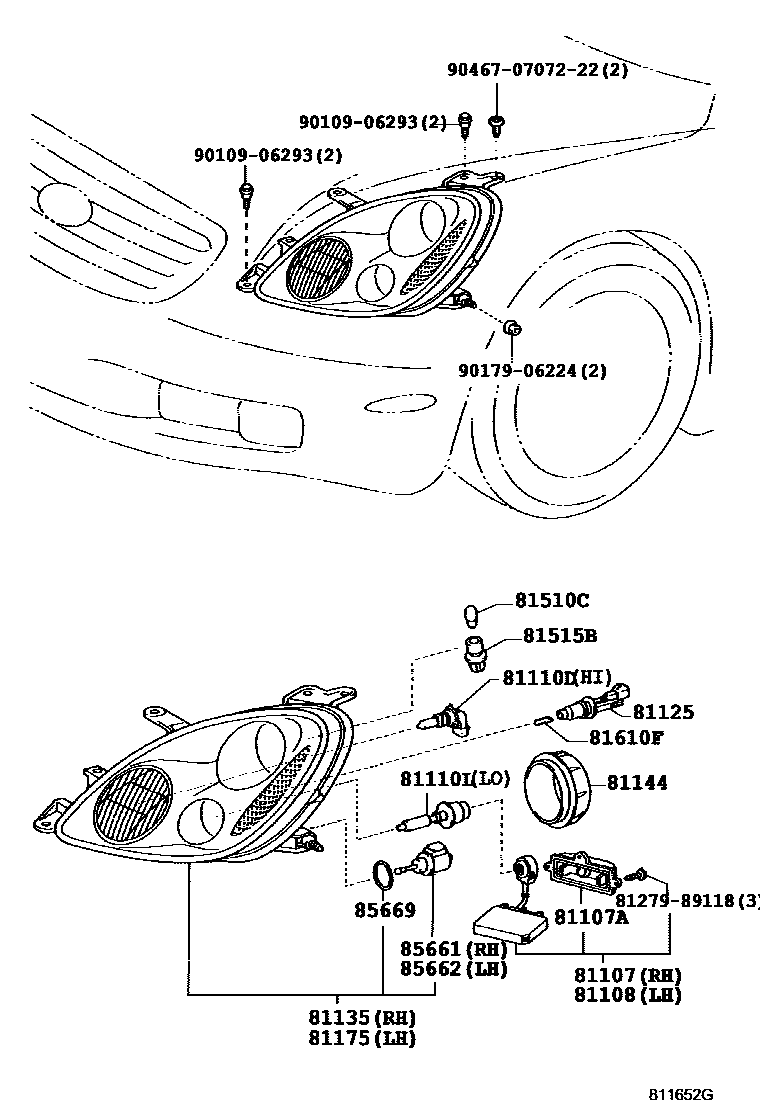

Toyota LEXUS SC430 — HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-24100i200101-200508

81107ACOVER, HEADLAMP LIGHT CONTROL COMPUTER

main81135-24100×2i200101-200508

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-24100i200101-200508

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2i200101-200508

12V 65W

main90981-13046×2i200608-201007

12V65W(SAE),60W(ECE)

81110LBULB, DISCHARGE HEADLAMP

main90981-20005×2i200101-200508

85V 35W

main90981-20013×2i200508-200604

45V 35W

main90981-20021×2i200605-200902

45V 35W

main90981-20024×2i200902-201007

42V 35W

81125CORD, HEADLAMP

main81125-24110×2i200101-200508

81135UNIT ASSY, HEADLAMP, RH

main81130-24100i200101-200508

main81130-24130i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO)

main81140-24150i200508-200608

main81140-24151i200608

81144COVER, HEADLAMP, NO.1

main81135-24160×2i200508

main90075-66006×2i200101-200508

81175UNIT ASSY, HEADLAMP, LH

main81070-24150i200508-200608

main81070-24151i200608

main81170-24100i200101-200508

main81170-24130i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO)

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200101-200508

12V 21W,AMBER

main90981-AF001×2i200508-201007

12V 30/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200101-200508

main90075-60060×2i200508

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200508-200607

12V 5W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48030i200508

main85661-50040i200101-200508

85662MOTOR, HEADLAMP LEVELING, LH

main85661-48030i200508

main85661-50040i200101-200508

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i200101-200508

8127989118WASHER, SIDE TURN SIGNAL LAMP

main81279-89118

9010906293

main90109-06293

9017906224

main90179-06224

904670707222

main90467-0707222

19 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota LEXUS SC430

This section contains 25 genuine Toyota parts for the HEADLAMP system of the Toyota LEXUS SC430. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COVER, HEADLAMP LIGHT CONTROL COMPUTER, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP.
