Toyota LEXUS SC430 — FRONT FENDER APRON & DASH PANEL

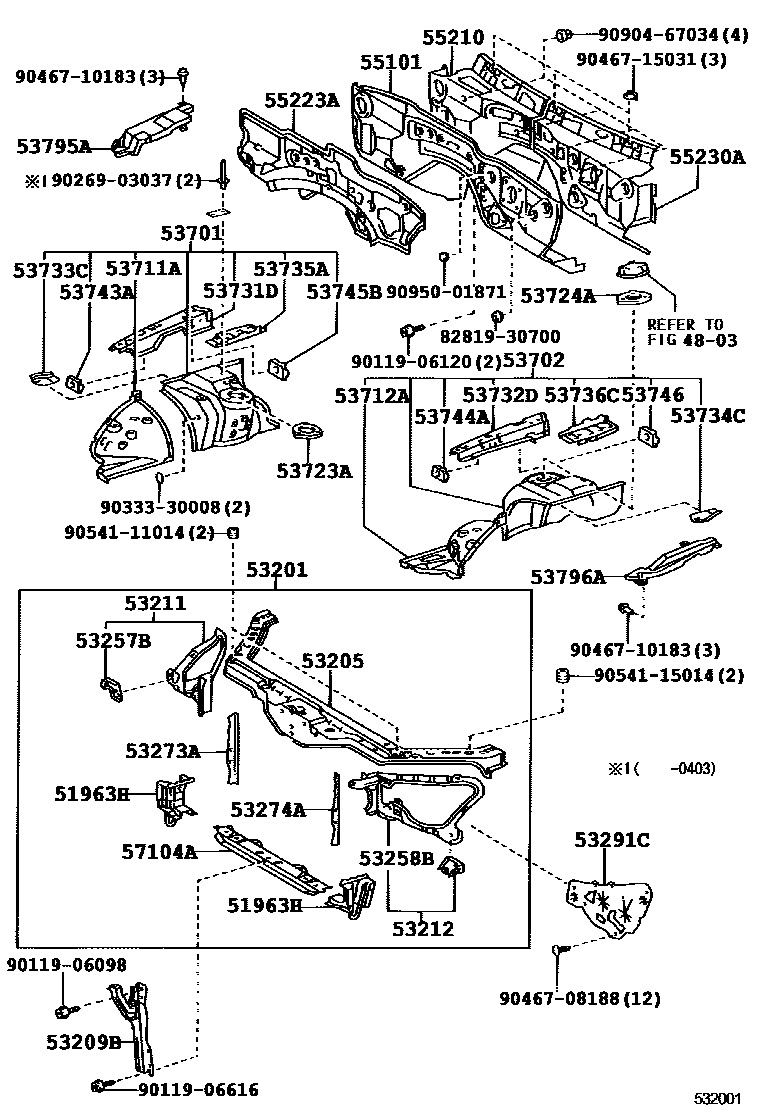

Parts diagram
4803
51963HHOOK, TRANSPORT W/REINFORCEMENT
main51963-24900i200101-200508
RH
main51964-24900i200101-200508
LH
53201SUPPORT SUB-ASSY, RADIATOR
main53201-24050i200101-200502
main53201-24051i200503-200508
main53201-24052i200603
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-24050i200101-200503
main53205-24051i200508-200602
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
main53209-24010i200101-200508
53211SUPPORT, RADIATOR, RH
main53211-24900i200101-200508
main53211-24901i200608
53212SUPPORT, RADIATOR, LH
main53212-24900i200101-200508
main53212-24901i200608
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
main53257-24010i200508-200602
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
main53258-24010i200101-200508
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
main53273-30030i200101-200508
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
main53274-30010i200101-200508
53291CSEAL, RADIATOR SUPPORT TO FRAME
main53291-24020×2i200101-200307
main53291-24021×2i200307-200508
main53291-24030×2i200508
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-24150i200101-200107
sub90173-10012
main53701-24151i200107-200508
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-24130i200101-200107
sub90173-10012
main53702-24131i200107-200508
53711AAPRON, FRONT FENDER, W/SUPPORT, FRONT RH
main53711-24040i200101-200508
53712AAPRON, FRONT FENDER, W/SUPPORT, FRONT LH
main53712-24050i200508
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
main53723-30030i200101-200508
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
main53723-30030i200101-200508
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-24040i200101-200508
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-24040i200101-200508
53733CPATCH, FRONT FENDER APRON
main53733-24020i200101-200508
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
main53734-24020i200101-200508
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
main53735-30070i200101-200508
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
main53736-30070i200101-200508
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-24020i200101-200508
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
main53744-24020i200101-200508
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
main53745-24010i200101-200508
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
main53746-24010i200101-200508
53795ACOVER, ENGINE ROOM, SIDE
main53795-24010i200101-200508
main53795-24011i200908
main53795-24020i200101-200403
TAIWAN SPEC
53796ACOVER, ENGINE ROOM SIDE, LH
main53796-24010i200508-200907
main53796-24011i200908
55101PANEL SUB-ASSY, DASH
main55101-24130i200101-200502
main55101-24131i200503-200508
55210INSULATOR ASSY, DASH PANEL
main55210-24060i200101-200508
main55210-24061i200908
55223AINSULATOR, DASH PANEL, OUTER
main55223-24030i200101-200508
55230AINSULATOR ASSY, DASH PANEL, NO.4
main55230-24010i200101-200508
main55230-24011i200908
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-24900i200101-200508
8281930700GROMMET, WIRING HARNESS
main82819-30700
9011906098
main90119-06098
9011906120
main90119-06120
9011906616
main90119-06616
9026903037
main90269-03037
9033330008
main90333-30008
9046708188
main90467-08188
9046710183
main90467-10183
9046715031
main90467-15031
9054111014
main90541-11014
9054115014
main90541-15014
9090467034
main90904-67034
9095001871
main90950-01871

48 parts on this diagram · 1 diagram in section
