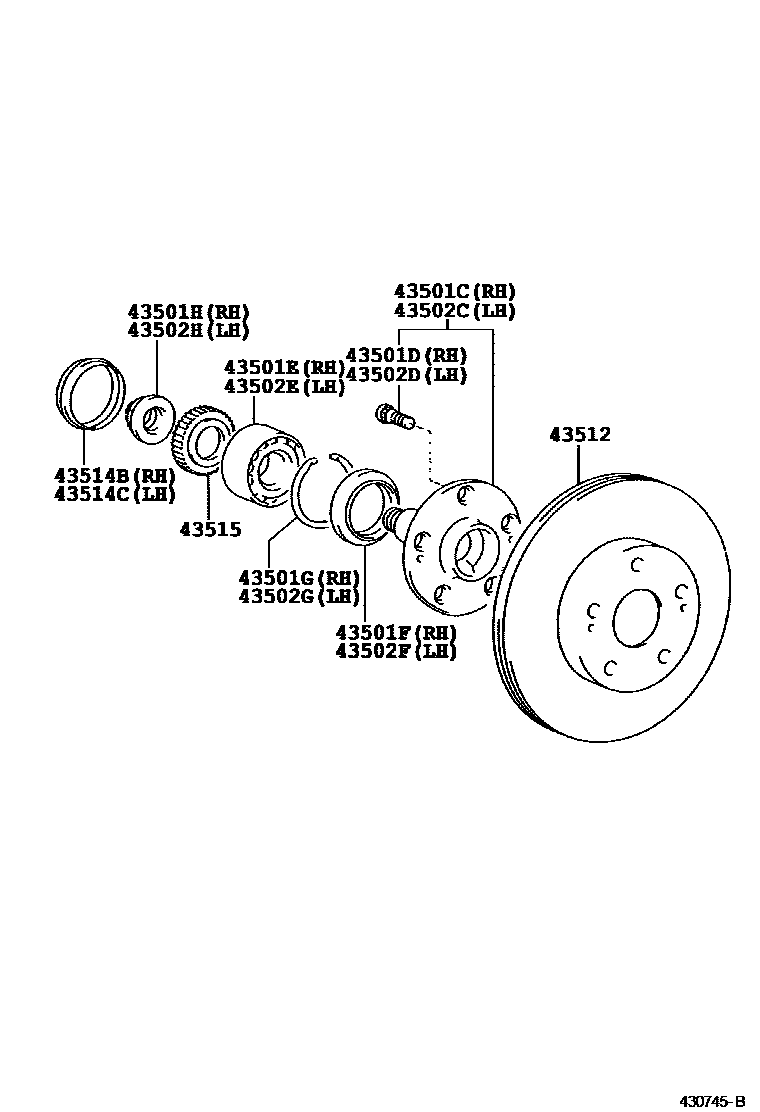

Toyota LEXUS SC430 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-30140i200101-200508

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070i200101-200508

43501EBEARING (FOR FRONT AXLE HUB RH)

main90903-63006i200101-200508

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50008i200101-200508

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001i200101-200508

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-24005i200101-200508

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-30140i200101-200508

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070i200101-200508

43502EBEARING (FOR FRONT AXLE HUB LH)

main90903-63006i200101-200508

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50008i200101-200508

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001i200101-200508

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-24005i200101-200508

43512DISC, FRONT

main43512-30180i200101-200202

main43512-30181i200202-200906

main43512-53020i200907

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010i200101-200508

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010i200101-200508

43515ROTOR, SKID CONTROL, FRONT

main43515-30020i200101-200508

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LEXUS SC430

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LEXUS SC430. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), SEAL, OIL (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
