Toyota LEXUS SC430 — CONSOLE BOX & BRACKET

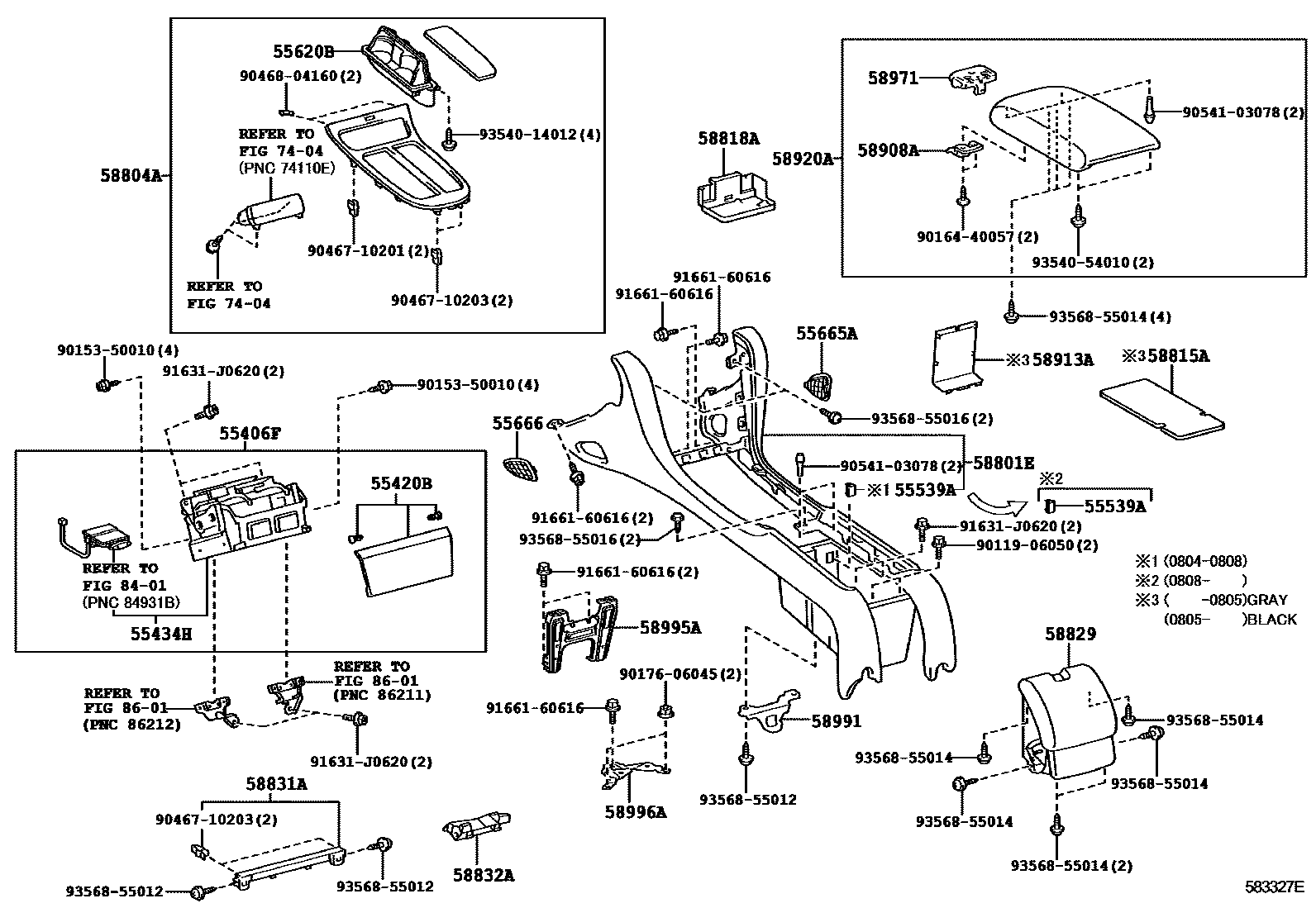

Parts diagram
55406FPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
main55406-24010-A0i200308-200311
PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),BLACK,TRIM0#
main55406-24010-B0i200101-200508
ECRU BROWN,TRIM0#
main55406-24010-B1i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.GRAY,TRIM33
main55406-24010-C0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
main55406-24010-E0i200908
USA POSSESSION SPEC & W(CD CHANGER);KOREA SPEC & W(CD CHANGER),MD.BROWN,TRIM0#,2#,5#
main55406-24010-E1i200908
USA POSSESSION SPEC & W(CD CHANGER);KOREA SPEC & W(CD CHANGER),DK.BROWN,TRIM4#
main55406-24030-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main55406-24080-E0i200908
MD.BROWN,TRIM0#,2#,5#
main55406-24080-E1i200908
DK.BROWN,TRIM4#
55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1
main55413-24170-B0i200101-200508
ECRU BROWN,TRIM0#
main55413-24170-B1i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.GRAY,TRIM33
main55413-24170-E0i200508
MD.BROWN,TRIM0#,2#,5#
main55413-24170-E1i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.BROWN,TRIM04
55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
main55406-24040i200508-200908
main55406-24090i200908
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-C0i200804
BLACK
55620BHOLDER, INSTRUMENT PANEL CUP
main55620-24030i200101-200508
55665ABEZEL, CONSOLE BOX REGISTER, LOWER RH
main55665-24010-A0i200508
ECRU,TRIM0#
main55665-24010-C0i200508
BLACK,TRIM2#
main55665-24010-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main55665-24010-E0i200101-200508
SADDLE TAN,TRIM21
main55665-24010-E1i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
main55665-24020-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
55666BEZEL, CONSOLE BOX REGISTER, LOWER LH
main55666-24010-A0i200101-200508
ECRU,TRIM0#
main55666-24010-C0i200101-200508
BLACK,TRIM20
main55666-24010-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main55666-24010-E0i200101-200508
SADDLE TAN,TRIM21
main55666-24010-E1i200508
CAMEL,TRIM4#
main55666-24020-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
58801EBOX SUB-ASSY, CONSOLE, UPPER
main58801-24050-A0i200508-200803
ECRU,TRIM0#
sub58801-24100
main58801-24050-C0i200101-200508
BLACK,TRIM20
sub58801-24100
main58801-24050-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
sub58801-24100
main58801-24050-E0i200508-200803
SADDLE TAN,TRIM5#
sub58801-24100
main58801-24050-E1i200508-200803
CAMEL,TRIM4#
sub58801-24100
main58801-24051-A0i200804-200808
ECRU,TRIM0#
main58801-24051-C0i200804-200808
BLACK,TRIM2#
main58801-24051-E0i200804-200808
SADDLE TAN,TRIM5#
main58801-24051-E1i200804-200808
CAMEL,TRIM4#
main58801-24052-A1i200808
ECRU,TRIM0#
main58801-24052-C2i200808
BLACK,TRIM2#
main58801-24052-E2i200808
SADDLE TAN,TRIM5#
main58801-24052-E3i200808
CAMEL,TRIM4#
main58801-24060-A0i200208-200310
W(MAYDAY),ECRU,TRIM0#
sub58801-24120
main58801-24060-C0i200208-200310
W(MAYDAY),BLACK,TRIM20
sub58801-24120
main58801-24060-E0i200208-200310
W(MAYDAY),SADDLE TAN,TRIM21
sub58801-24120
main58801-24070-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main58801-24080-E0i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
sub58801-24140
main58801-24090-C0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM24
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-24040-A0i200308-200311
PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),BLACK,TRIM0#
main58804-24040-B0i200101-200508
ECRU BROWN,TRIM0#
main58804-24040-B1i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.GRAY,TRIM33
main58804-24040-C0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
main58804-24040-E0i200508
MD.BROWN,TRIM0#,2#,5#
main58804-24040-E1i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.BROWN,TRIM04
main58804-24080-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
58815ACARPET, CONSOLE BOX
main58815-24010i200101-200508
main58815-24011i200805
58818ACOVER, CONSOLE BOX, FR
main58818-24030i200508
58829POCKET, CONSOLE BOX
main58806-24010-A0i200508-200805
ECRU,TRIM0#
main58806-24010-C0i200508-200805
BLACK,TRIM2#
main58806-24010-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
main58806-24010-E0i200508-200805
SADDLE TAN,TRIM5#
main58806-24010-E1i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
main58806-24011-A0i200805
ECRU,TRIM0#
main58806-24011-C0i200805
BLACK,TRIM2#
main58806-24011-E0i200805
SADDLE TAN,TRIM5#
main58806-24011-E1i200805
CAMEL,TRIM4#
main58806-24020-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-24010-A0i200205-200508
ECRU,TRIM0#
main58831-24010-A1i200808
ECRU,TRIM0#
main58831-24010-C0i200508-200808
BLACK,TRIM2#
main58831-24010-C1i200101-200205
BLACK,TRIM20
main58831-24010-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
main58831-24010-E0i200205-200508
SADDLE TAN,TRIM21
main58831-24010-E1i200808
SADDLE TAN,TRIM5#
main58831-24010-E2i200508-200808
CAMEL,TRIM4#
main58831-24010-E3i200808
CAMEL,TRIM4#
main58831-24020-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main58831-24030-A0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
58832AGARNISH, CONSOLE UPPER PANEL, REAR
main58832-24010-A0i200101-200508
ECRU,TRIM0#
main58832-24010-C0i200101-200508
BLACK,TRIM20
main58832-24010-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main58832-24010-E0i200508
SADDLE TAN,TRIM5#
main58832-24010-E1i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
main58832-24020-A0i200101-200508
W(SEAT HEATER),ECRU,TRIM0#
main58832-24020-C0i200101-200508
W(SEAT HEATER),BLACK,TRIM20
main58832-24020-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),RED,TRIM33
main58832-24020-E0i200508
W(SEAT HEATER),SADDLE TAN,TRIM5#
main58832-24020-E1i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),CAMEL,TRIM04
main58832-24030-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main58832-24040-A0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
main58832-24050-A0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),ECRU,TRIM24
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-30050i200101-200508
58913APANEL, BOX, NO.3
main58913-24010i200508-200805
main58913-24011i200805
58920AARMREST ASSY, REAR CONSOLE
main58920-24010-A0i200101-200508
ECRU,TRIM0#
main58920-24010-C0i200101-200508
BLACK,TRIM20
main58920-24010-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
main58920-24010-E0i200101-200508
SADDLE TAN,TRIM21
main58920-24040-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main58920-24070-A0i200508-200805
ECRU,TRIM0#
main58920-24070-C0i200508-200805
BLACK,TRIM2#
main58920-24070-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main58920-24070-E0i200508-200805
CAMEL,TRIM4#
main58920-24070-E1i200508-200805
SADDLE TAN,TRIM5#
main58920-24071-A0i200805
ECRU,TRIM0#
main58920-24071-C0i200805
BLACK,TRIM2#
main58920-24071-E0i200805
CAMEL,TRIM4#
main58920-24071-E1i200805
SADDLE TAN,TRIM5#
main58920-24080-E0i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
main58920-24090-A0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
58971LOCK, CONSOLE COMPARTMENT DOOR
main58971-30050-C0i200101-200508
BLACK,TRIM0#,20,21
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
main58991-24010i200101-200508
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-24040i200101-200508
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-24030i200101-200508
7404
8401
8601
9011906050
main90119-06050
9015350010
main90153-50010
9016440057
main90164-40057
9017606045
main90176-06045
9046710201
main90467-10201
9046710203
main90467-10203
9046804160
main90468-04160
9054103078
main90541-03078
91631J0620
main91631-J0620
9166160616
main91661-60616
9354014012
main93540-14012
9354054010
main93540-54010
9356855012
main93568-55012
9356855014
main93568-55014
9356855016
main93568-55016

39 parts on this diagram · 1 diagram in section
