Toyota LEXUS SC430 — ARMREST & VISOR

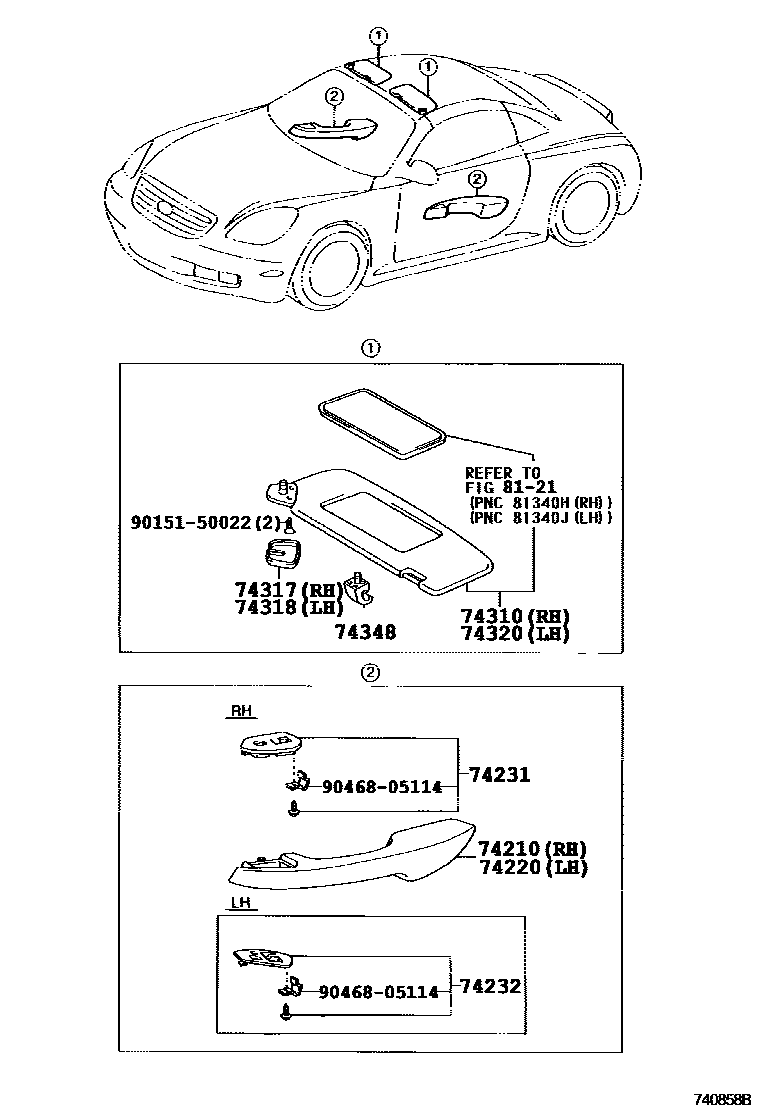

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-24100-A0i200101-200508
ECRU,TRIM0#
sub74210-24110
main74210-24100-C0i200101-200508
BLACK,TRIM20
sub74210-24110
main74210-24100-D1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
sub74210-24110
main74210-24100-E0i200101-200508
SADDLE TAN,TRIM21
sub74210-24110
main74210-24120-A0i200508-201007
ECRU,TRIM0#
main74210-24120-C0i200508-201007
BLACK,TRIM2#
main74210-24120-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main74210-24120-E0i200508-201007
CAMEL,TRIM4#
main74210-24120-E1i200508-201007
SADDLE TAN,TRIM5#
main74210-24130-E0i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
main74210-24150-A0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
74220ARMREST ASSY, FRONT, LH
main74220-24100-A0i200101-200508
ECRU,TRIM0#
sub74220-24110
main74220-24100-C0i200101-200508
BLACK,TRIM20
sub74220-24110
main74220-24100-D1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
sub74220-24110
main74220-24100-E0i200101-200508
SADDLE TAN,TRIM21
sub74220-24110
main74220-24120-A0i200508-201007
ECRU,TRIM0#
main74220-24120-C0i200508-201007
BLACK,TRIM2#
main74220-24120-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main74220-24120-E0i200508-201007
CAMEL,TRIM4#
main74220-24120-E1i200508-201007
SADDLE TAN,TRIM5#
main74220-24130-E0i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
main74220-24150-A0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-24090-A0i200508
ECRU,TRIM0#
sub74231-24901
main74231-24090-C0i200101-200508
BLACK,TRIM20
sub74231-24901
main74231-24090-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
sub74231-24901
main74231-24090-E0i200101-200508
SADDLE TAN,TRIM21
sub74231-24901
main74231-24090-E1i200508
CAMEL,TRIM4#
sub74231-24901
main74231-24100-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-24060-A0i200808-200809
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),ECRU,TRIM24
sub74232-24902
main74232-24060-C0i200508
BLACK,TRIM2#
sub74232-24902
main74232-24060-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
sub74232-24902
main74232-24060-E0i200508
SADDLE TAN,TRIM5#
sub74232-24902
main74232-24060-E1i200708-200711
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),CAMEL,TRIM04
sub74232-24902
main74232-24090-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
74310VISOR ASSY, RH
main74310-24190-A0i200101-200208
ECRU,TRIM0#,20,21
main74310-24191-A0i200508-200607
ECRU,TRIM0#,50
main74310-24191-C0i200608
EXCEPT USA,BLACK,TRIM2#,5#
main74310-24191-E0i200508-200607
DK. BROWN,TRIM4#
main74310-24192-A0i200608
ECRU,TRIM0#
main74310-24192-C0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33
main74310-24192-E0i200608
DK. BROWN,TRIM4#
main74310-24240i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA)
74317COVER, VISOR BRACKET, RH
main74317-24010i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA)
main74317-30010-A2i200508
ECRU,TRIM0#,50
main74317-30010-C0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
main74317-30010-E3i200508
DK.BROWN,TRIM4#
74318COVER, VISOR BRACKET, LH
main74317-24010i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA)
main74317-30010-A2i200608
ECRU,TRIM0#
main74317-30010-C0i200608
BLACK,TRIM2#,5#
main74317-30010-E3i200508
DK.BROWN,TRIM4#
74320VISOR ASSY, LH
main74320-24180-A0i200101-200208
ECRU,TRIM0#,20,21
main74320-24181-A0i200508-200607
ECRU,TRIM0#,50
main74320-24181-C0i200608
EXCEPT USA,BLACK,TRIM2#,5#
main74320-24181-E0i200508-200607
DK. BROWN,TRIM4#
main74320-24182-A0i200608
ECRU,TRIM0#
main74320-24182-C0i200608
BLACK,TRIM2#,5#
main74320-24182-E0i200608
DK. BROWN,TRIM4#
main74320-24230i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA)
74348HOLDER, VISOR
main74336-24020×2i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA)
main74348-12040-A1×2i200101-200508
ECRU,TRIM0#,20,21
main74348-12040-C0×2i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
main74348-12040-E3×2i200508
DK.BROWN,TRIM4#
8121
9015150022
main90151-50022
9046805114
main90468-05114

12 parts on this diagram · 1 diagram in section
