Toyota LEXUS SC430 — ABS & VSC
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
88263MRELAY, ABS SOLENOID
88263NRELAY, ABS MOTOR
89183ASENSOR, YAWRATE
89245ASENSOR, STEERING
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89630COMPUTER ASSY, TRANSLATE
89633ARELAY, TRACTION CONTROL OR VSC
9011906375
main90119-06375
9017906161
main90179-06161
9017906274
main90179-06274
9161560825
main91615-60825
91621J0612
main91621-J0612
91631J0612
main91631-J0612
91651B0616
main91651-B0616

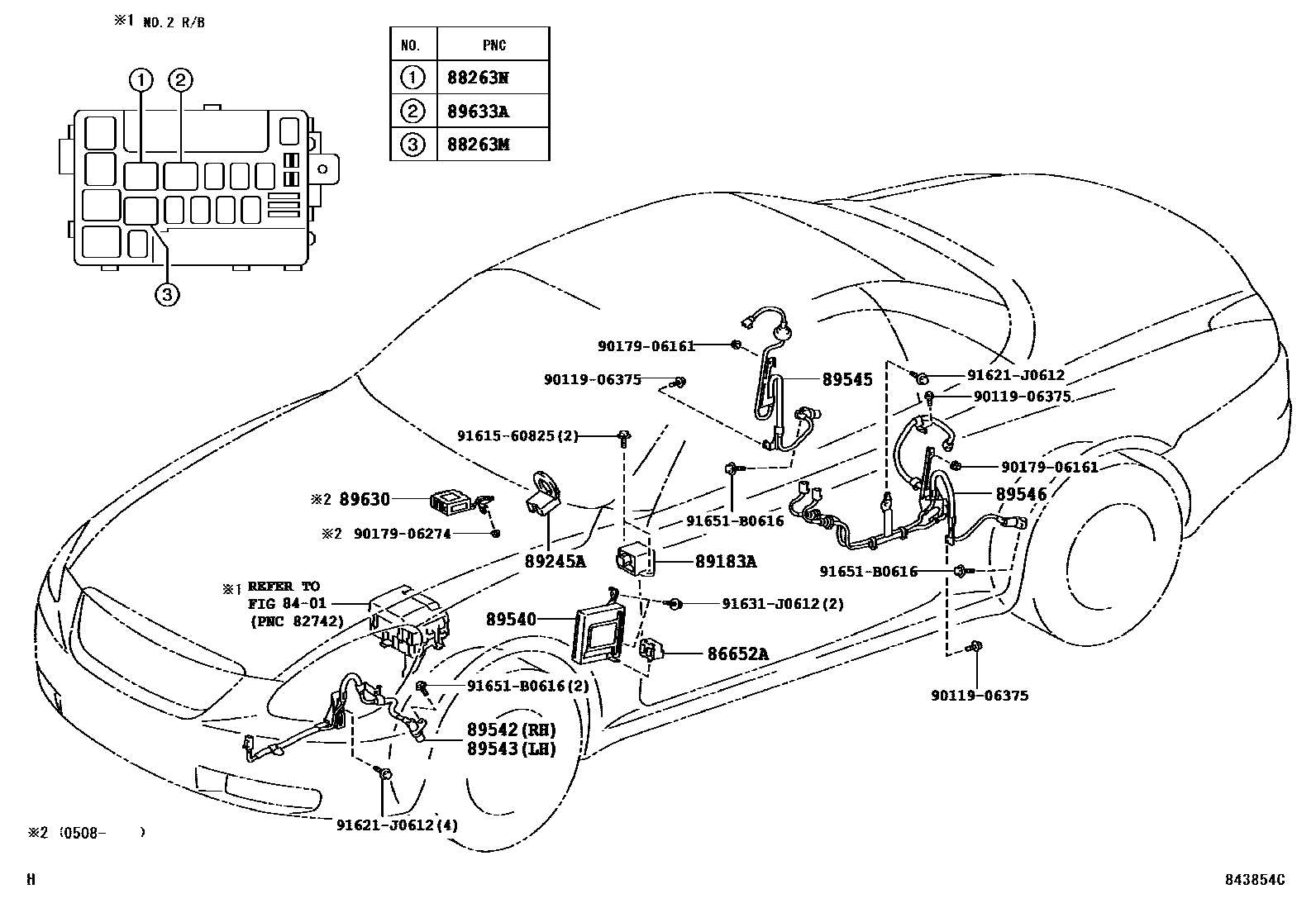

20 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota LEXUS SC430
This section contains 20 genuine Toyota parts for the ABS & VSC system of the Toyota LEXUS SC430. Key components include: SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, RELAY, ABS SOLENOID, RELAY, ABS MOTOR, SENSOR, YAWRATE.
