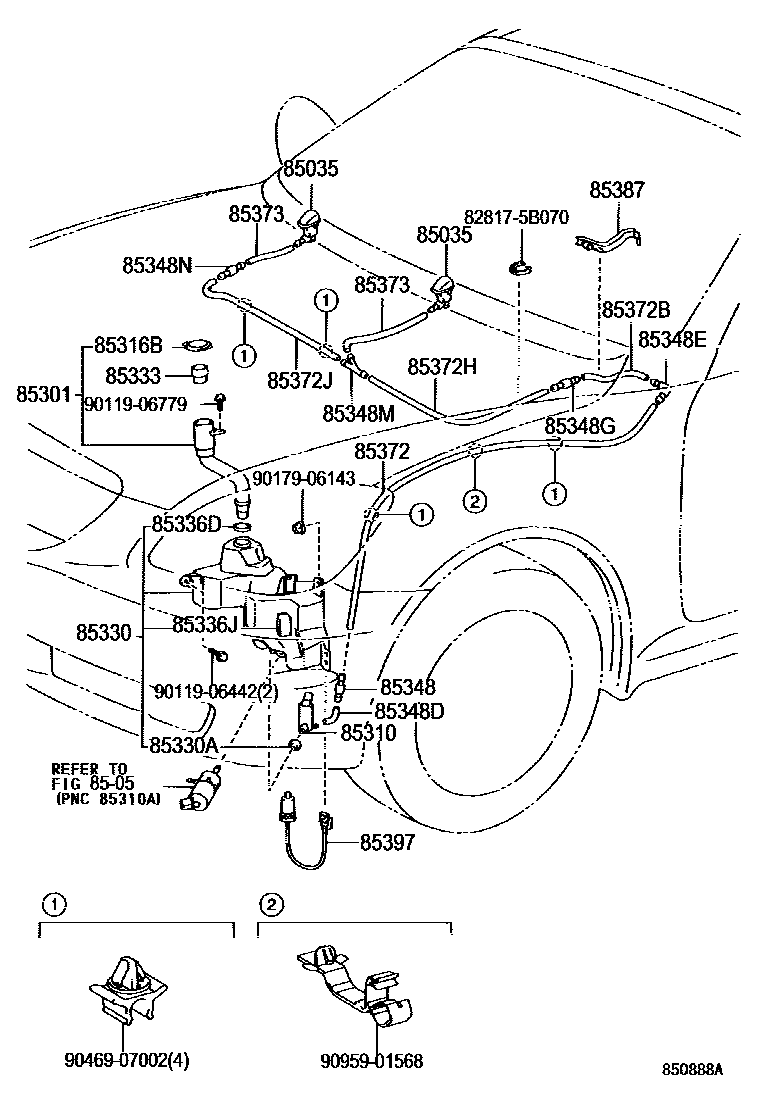

Toyota LEXUS SC430 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-24020-A0×2i200105-200508

WHITE PEARL CS.,065

main85381-24020-B0×2i200105-200508

SILVER ME.,1C0

main85381-24020-B1×2i200508-200802

PREMIUM SILVER,1F2

main85381-24020-B2×2i200508-200802

DK.GRAY MC.,1G0

main85381-24020-D0×2i200105-200208

SUPER RED 5,3P0

main85381-24020-D1×2i200105-200508

BLACKISH RED MC.,3P6

main85381-24020-D2×2i200508-200802

RED MC.CS.,3R1

main85381-24020-E0×2i200105-200508

BEIGE M.M.,4Q8

main85381-24020-E1×2i200508-200708

PREMIUM BEIGE,4S7

main85381-24020-E2×2i200508-200802

PREMIUM BROWN,4T2

main85381-24020-E3×2i200708-200802

BEIGE ME.,4T1

main85381-24020-G0×2i200105-200508

DARK GREEN MC.,6S6

main85381-24020-J1×2i200105-200508

DK.BLUE M.M.,8P4

main85381-24021-A1×2i200608-200802

WHITE PEARL CS.,077

main85381-24021-B1×2i200803

PREMIUM SILVER,1F2

main85381-24021-B2×2i200803

DK.GRAY MC.,1G0

main85381-24021-C2×2i200608-200802

BLACK,212

main85381-24021-D1×2i200803-200808

BLACKISH RED MC.,3P6

main85381-24021-D2×2i200803

RED MC.CS.,3R1

main85381-24021-D3×2i200808

SHELL M.M.,3R4

main85381-24021-E2×2i200803-200908

PREMIUM BROWN,4T2

main85381-24021-E3×2i200803

BEIGE ME.,4T1

main85381-24021-J3×2i200608-200802

DK.BLUE MC. CC.,8U0

main85381-24021-J4×2i200908

BLUE M.M.,8U4

main85381-24030-A0×2i200508-200608

WHITE PEARL CS.,065

main85381-24030-A1×2i200608-200802

WHITE PEARL CS.,077

main85381-24030-B0×2i200105-200508

SILVER ME.,1C0

main85381-24030-B2×2i200508-200802

PREMIUM SILVER,1F2

main85381-24030-B3×2i200508-200802

DK.GRAY MC.,1G0

main85381-24030-C0×2i200105-200508

*104,BLACK,202 ,3P0

main85381-24030-C1×2i200608-200802

BLACK,212

main85381-24030-D0×2i200105-200508

*104,SUPER RED 5,3P0

main85381-24030-D1×2i200105-200508

BLACKISH RED MC.,3P6

main85381-24030-D2×2i200508-200802

RED MC.CS.,3R1

main85381-24030-E0×2i200105-200508

BEIGE M.M.,4Q8

main85381-24030-E1×2i200508-200708

PREMIUM BEIGE,4S7

main85381-24030-E2×2i200508-200802

PREMIUM BROWN,4T2

main85381-24030-E3×2i200708-200802

BEIGE ME.,4T1

main85381-24030-G0×2i200105-200508

DARK GREEN MC.,6S6

main85381-24030-J1×2i200508-200608

DK.BLUE M.M.,8P4

main85381-24030-J3×2i200608-200802

DK.BLUE MC. CC.,8U0

main85381-24031-A0×2i200508-200608

WHITE PEARL CS.,065

main85381-24031-A1×2i200803

WHITE PEARL CS.,077

main85381-24031-B2×2i200803

PREMIUM SILVER,1F2

main85381-24031-B3×2i200803

DK.GRAY MC.,1G0

main85381-24031-C0×2i200508-200608

BLACK,202

main85381-24031-C1×2i200803

BLACK,212

main85381-24031-D0×2i200403-200508

SUPER RED 5,3P0

main85381-24031-D1×2i200803-200808

BLACKISH RED MC.,3P6

main85381-24031-D2×2i200803

RED MC.CS.,3R1

main85381-24031-D3×2i200808

SHELL M.M.,3R4

main85381-24031-E2×2i200803-200908

PREMIUM BROWN,4T2

main85381-24031-E3×2i200803

BEIGE ME.,4T1

main85381-24031-J1×2i200508-200608

DK.BLUE M.M.,8P4

main85381-24031-J3×2i200803

DK.BLUE MC. CC.,8U0

main85381-24031-J4×2i200908

BLUE M.M.,8U4

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-24020i200105-200508

main85301-24030i200105-200508

main85301-24040i200508

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33020i200105-200508

85316BCAP, WASHER, INLET

main85316-33050i200105-200508

85330JAR ASSY, WINDSHIELD WASHER

main85315-24100i200105-200508

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200105-200508

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470i200105-200508

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i200508

85336JPROTECTOR, WASHER JAR

main85336-42050i200105-200508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200105-200508

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-16192i200105-200508

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i200105-200508

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200105-200508

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-14390i200105-200508

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122i200105-200508

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i200105-200508

L=1600

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200105-200508

L=1450(*H,L=200)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200105-200508

L=1450(*H,L=580)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i200105-200508

L=1450(*H,L=560)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200105-200508

L=1450(*H,L=170)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-24200i200105-200508

85397SWITCH ASSY,LEVEL WARNING

main85397-24100i200105-200508

828175B070PROTECTOR, WIRING HARNESS, NO.1

main82817-5B070

9011906442

main90119-06442

9011906779

main90119-06779

9017906143

main90179-06143

9046907002

main90469-07002

9095901568

main90959-01568

29 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota LEXUS SC430

This section contains 29 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LEXUS SC430. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET.
