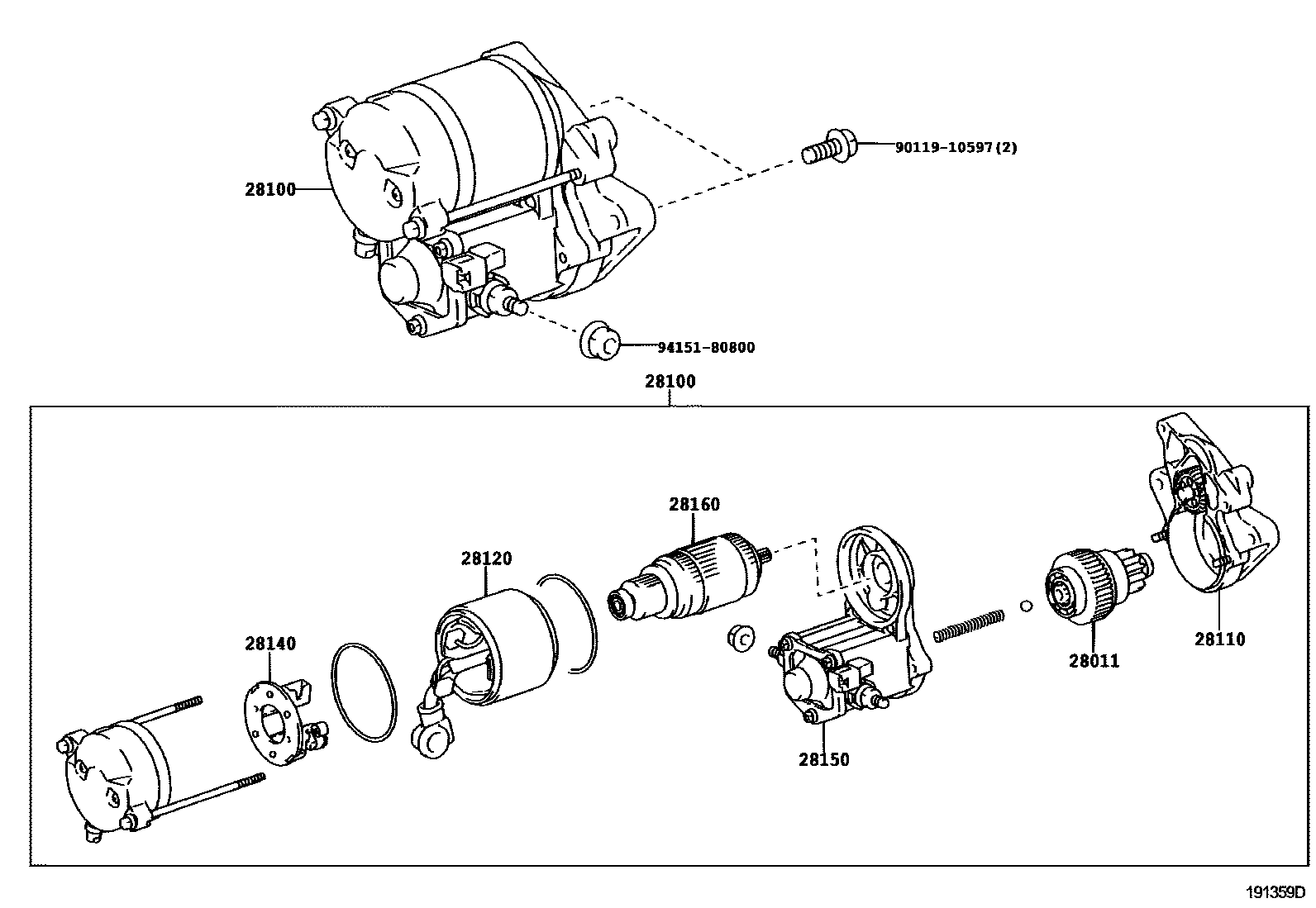

Toyota LEXUS SC430 — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.4KW
12V 1.4KW
12V 2.0KW
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
9011910597
main90119-10597
9415180800
main94151-80800
9 parts on this diagram · 2 diagrams in section
STARTER for Toyota LEXUS SC430
This section contains 9 genuine Toyota parts for the STARTER system of the Toyota LEXUS SC430. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH.
