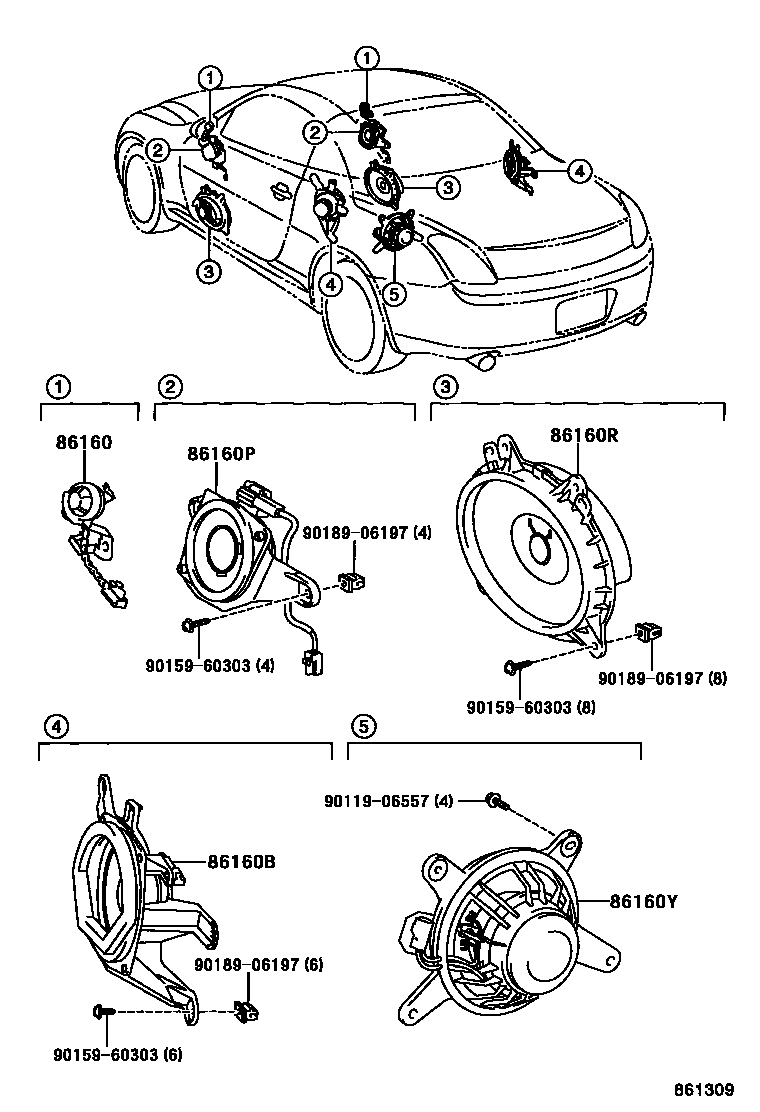

Toyota LEXUS SC430 — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0W380i200105-200107

MARK LEVINSON,RH

main86160-0W390i200508

main86160-24350i200105-200508

PIONEER,RH

main86160-24360i200105-200508

PIONEER,LH

86160BSPEAKER ASSY, REAR

main86160-0W430i200105-200107

MARK LEVINSON,RH

main86160-0W440i200508

main86160-24400i200105-200508

PIONEER,RH

main86160-24410i200105-200508

PIONEER,LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-0W400i200105-200107

MARK LEVINSON,RH

main86160-0W410i200508

main86160-24370i200105-200508

PIONEER,RH

main86160-24380i200105-200508

PIONEER,LH

86160RSPEAKER ASSY, STEREO COMPONENT

main86160-0W420×2i200508-200802

main86160-0W421×2i200803

main86160-24390×2i200105-200508

PIONEER

86160YSPEAKER ASSY, REAR NO.2

main86160-0W450i200105-200107

MARK LEVINSON

main86160-24420i200105-200508

PIONEER

9011906557

main90119-06557

9015960303

main90159-60303

9018906197

main90189-06197

8 parts on this diagram · 1 diagram in section

SPEAKER for Toyota LEXUS SC430

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota LEXUS SC430. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, STEREO COMPONENT, SPEAKER ASSY, REAR NO.2.
