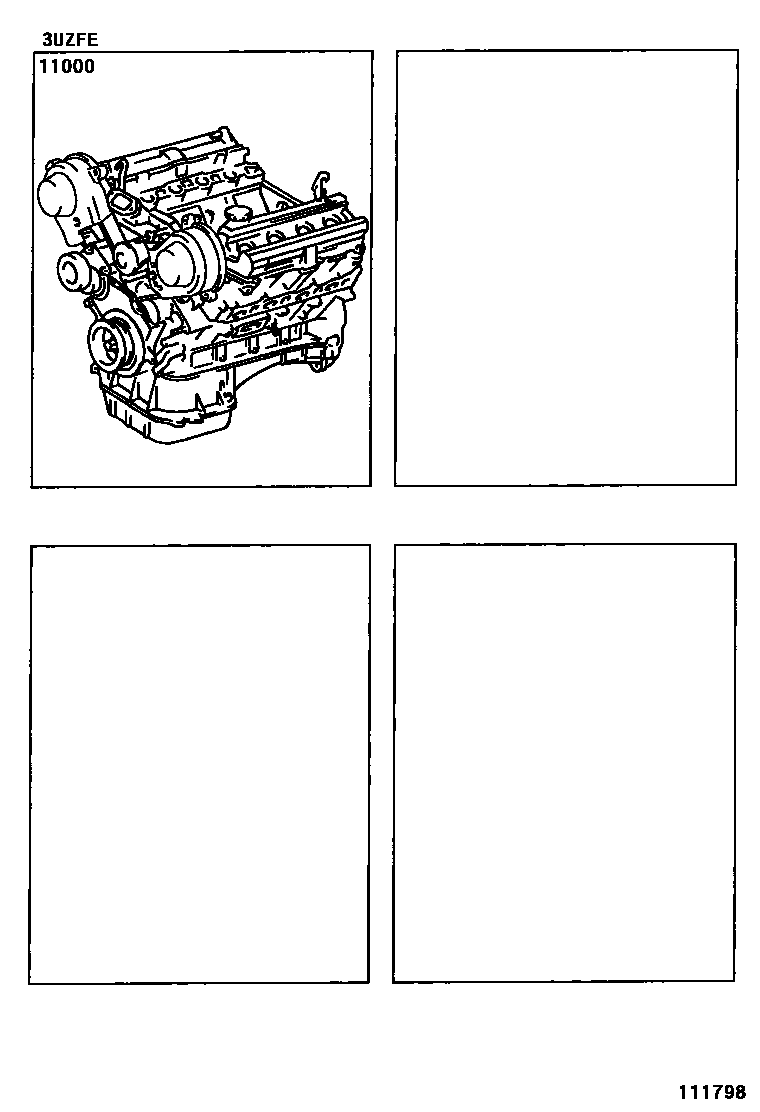

Toyota LEXUS SC430 — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-50600i200105-200402

main19000-50610i200105-200402

main19000-50720i200205-200402

main19000-50A30i200402-200508

main19000-50A40i200402-200508

main19000-50A50i200508-201006

HONG KONG SPEC

1 parts on this diagram · 1 diagram in section
