Toyota LEXUS SC430 — METER

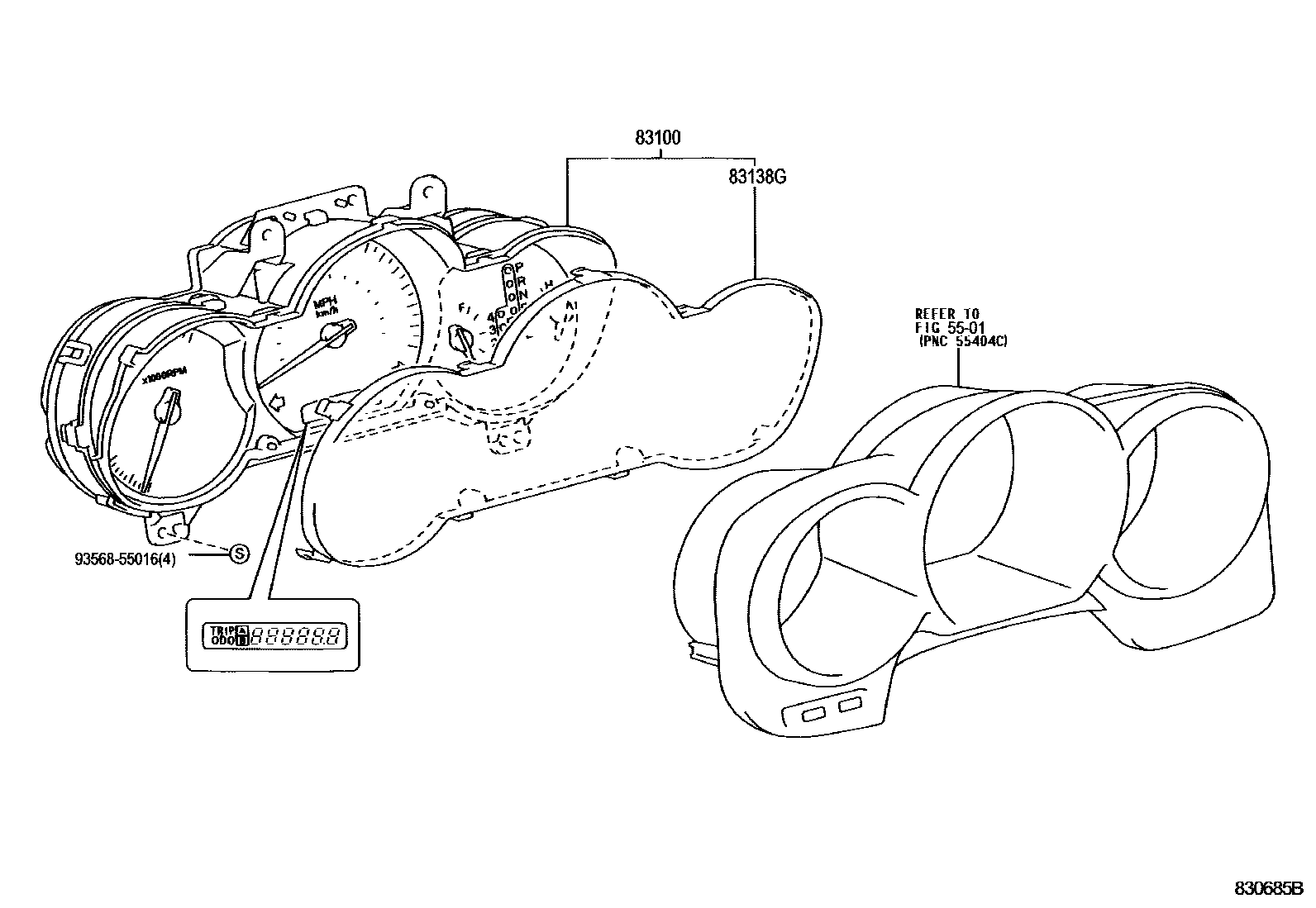

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

83100METER ASSY, COMBINATION

main83800-24140i200410-200508

IRELAND SPEC

main83800-24170i200105-200508

main83800-24180i200105-200508

main83800-24200i200105-200508

HONG KONG SPEC

main83800-24220i200205-200508

main83800-24260i200508-200608

IRELAND SPEC

main83800-24270i200508-200608

main83800-24290i200508-200608

HONG KONG SPEC

main83800-24300i200508-200608

main83800-24310i200508-200608

main83800-24360i200608-200708

IRELAND SPEC

main83800-24370i200608-200708

main83800-24380i200608-200708

HONG KONG SPEC

main83800-24390i200608-200708

main83800-24400i200608-200708

main83800-24410i200608-200708

main83800-24460i200708-201007

CYPRUS SPEC; IRELAND SPEC

main83800-24470i200708-201007

BEIJING SPEC; CHILE SPEC; CHINA SPEC

main83800-24480i200708-201007

main83800-24490i200708-201007

HONG KONG SPEC

main83800-24500i200708-200801

main83800-24510i200708-201007

main83800-24520i200801-201007

83138GGLASS, COMBINATION METER

main83852-24121i200105-200508

main83852-24230i200508-201007

9356855016

main93568-55016

4 parts on this diagram · 1 diagram in section

METER for Toyota LEXUS SC430

This section contains 4 genuine Toyota parts for the METER system of the Toyota LEXUS SC430. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, METER ASSY, COMBINATION, GLASS, COMBINATION METER.
