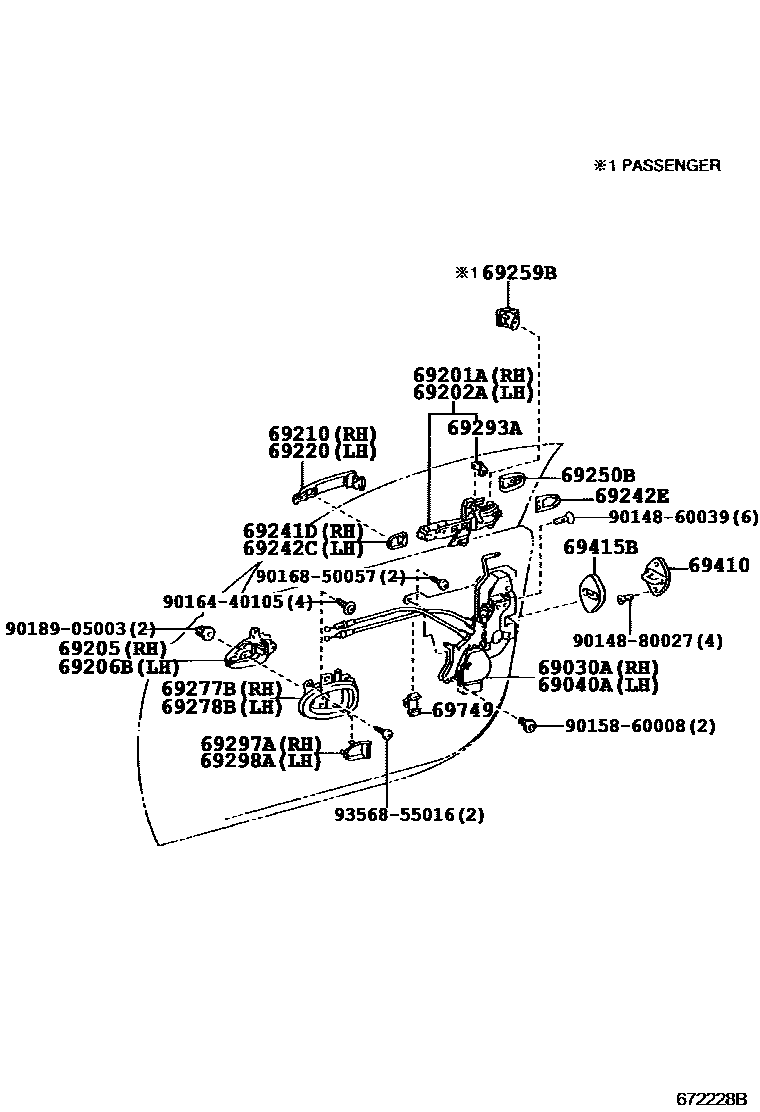

Toyota LEXUS SC430 — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
HONG KONG SPEC
W(DOUBLE-LOCK)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
HONG KONG SPEC
W(DOUBLE-LOCK)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
ENGLAND SPEC
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
ECRU,TRIM0#
BLACK,TRIM2#; BLACK,TRIM2#,5#
CAMEL,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
ECRU,TRIM0#
BLACK,TRIM2#; BLACK,TRIM2#,5#
CAMEL,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED,WHITE PEARL CS.,077
PLATED,PREMIUM SILVER,1F2
PLATED,DK.GRAY MC.,1G0
PLATED,BLACK,212
PLATED,BLACKISH RED MC.,3P6
PLATED,RED MC.CS.,3R1
PLATED,SHELL M.M.,3R4
PLATED,BEIGE ME.,4T1
PLATED,PREMIUM BROWN,4T2
PLATED,DK.BLUE MC. CC.,8U0
PLATED,BLUE M.M.,8U4
WHITE PEARL CS.,065
WHITE PEARL CS.,077
SILVER ME.,1C0
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
*104,BLACK,202 ,3P0
BLACK,212
*104,SUPER RED 5,3P0
BLACKISH RED MC.,3P6
RED MC.CS.,3R1
SHELL M.M.,3R4
BEIGE M.M.,4Q8
PREMIUM BEIGE,4S7
PREMIUM BROWN,4T2
BEIGE ME.,4T1
DARK GREEN MC.,6S6
DK.BLUE M.M.,8P4
DK.BLUE MC. CC.,8U0
BLUE M.M.,8U4
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED,WHITE PEARL CS.,077
PLATED,PREMIUM SILVER,1F2
PLATED,DK.GRAY MC.,1G0
PLATED,BLACK,212
PLATED,BLACKISH RED MC.,3P6
PLATED,RED MC.CS.,3R1
PLATED,RUSSIAN SPEC,SHELL M.M.,3R4
PLATED,BEIGE ME.,4T1
PLATED,PREMIUM BROWN,4T2
PLATED,DK.BLUE MC. CC.,8U0
PLATED,BLUE M.M.,8U4
WHITE PEARL CS.,065
WHITE PEARL CS.,077
SILVER ME.,1C0
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
*104,SUPER RED 5,3P0
BLACKISH RED MC.,3P6
RED MC.CS.,3R1
SHELL M.M.,3R4
BEIGE M.M.,4Q8
PREMIUM BEIGE,4S7
PREMIUM BROWN,4T2
BEIGE ME.,4T1
DARK GREEN MC.,6S6
DK.BLUE M.M.,8P4
DK.BLUE MC. CC.,8U0
BLUE M.M.,8U4
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69250BCOVER ASSY, DOOR OUTSIDE HANDLE
RUSSIAN SPEC,WHITE PEARL CS.,077,DRIVER SIDE
RUSSIAN SPEC,PREMIUM SILVER,1F2,DRIVER SIDE
RUSSIAN SPEC,DK.GRAY MC.,1G0,DRIVER SIDE
RUSSIAN SPEC,BLACK,212,DRIVER SIDE
RUSSIAN SPEC,BLACKISH RED MC.,3P6,DRIVER SIDE
RUSSIAN SPEC,RED MC.CS.,3R1,DRIVER SIDE
RUSSIAN SPEC,SHELL M.M.,3R4,DRIVER SIDE
RUSSIAN SPEC,BEIGE ME.,4T1,DRIVER SIDE
RUSSIAN SPEC,PREMIUM BROWN,4T2,DRIVER SIDE
RUSSIAN SPEC,DK.BLUE MC. CC.,8U0,DRIVER SIDE
RUSSIAN SPEC,BLUE M.M.,8U4,DRIVER SIDE
RUSSIAN SPEC,WHITE PEARL CS.,077,PASSENGER SIDE
RUSSIAN SPEC,PREMIUM SILVER,1F2,PASSENGER SIDE
RUSSIAN SPEC,DK.GRAY MC.,1G0,PASSENGER SIDE
RUSSIAN SPEC,BLACK,212,PASSENGER SIDE
RUSSIAN SPEC,BLACKISH RED MC.,3P6,PASSENGER SIDE
RUSSIAN SPEC,RED MC.CS.,3R1,PASSENGER SIDE
RUSSIAN SPEC,SHELL M.M.,3R4,PASSENGER SIDE
RUSSIAN SPEC,BEIGE ME.,4T1,PASSENGER SIDE
RUSSIAN SPEC,PREMIUM BROWN,4T2,PASSENGER SIDE
RUSSIAN SPEC,DK.BLUE MC. CC.,8U0,PASSENGER SIDE
RUSSIAN SPEC,BLUE M.M.,8U4,PASSENGER SIDE
WHITE PEARL CS.,065,DRIVER SIDE
WHITE PEARL CS.,077,DRIVER SIDE
SILVER ME.,1C0,DRIVER SIDE
PREMIUM SILVER,1F2,DRIVER SIDE
DK.GRAY MC.,1G0,DRIVER SIDE
BLACK,202,DRIVER SIDE
BLACK,212,DRIVER SIDE
SUPER RED 5,3P0,DRIVER SIDE
BLACKISH RED MC.,3P6,DRIVER SIDE
RED MC.CS.,3R1,DRIVER SIDE
SHELL M.M.,3R4,DRIVER SIDE
BEIGE M.M.,4Q8,DRIVER SIDE
PREMIUM BEIGE,4S7,DRIVER SIDE
PREMIUM BROWN,4T2,DRIVER SIDE
BEIGE ME.,4T1,DRIVER SIDE
DARK GREEN M.M.,6S6,DRIVER SIDE
DK.BLUE M.M.,8P4,DRIVER SIDE
DK.BLUE MC. CC.,8U0,DRIVER SIDE
BLUE M.M.,8U4,DRIVER SIDE
WHITE PEARL CS.,065,PASSENGER SIDE
WHITE PEARL CS.,077,PASSENGER SIDE
SILVER ME.,1C0,PASSENGER SIDE
PREMIUM SILVER,1F2,PASSENGER SIDE
DK.GRAY MC.,1G0,PASSENGER SIDE
BLACK,202,PASSENGER SIDE
BLACK,212,PASSENGER SIDE
SUPER RED 5,3P0,PASSENGER SIDE
BLACKISH RED MC.,3P6,PASSENGER SIDE
RED MC.CS.,3R1,PASSENGER SIDE
SHELL M.M.,3R4,PASSENGER SIDE
BEIGE M.M.,4Q8,PASSENGER SIDE
PREMIUM BEIGE,4S7,PASSENGER SIDE
PREMIUM BROWN,4T2,PASSENGER SIDE
BEIGE ME.,4T1,PASSENGER SIDE
DARK GREEN M.M.,6S6,PASSENGER SIDE
DK.BLUE M.M.,8P4,PASSENGER SIDE
DK.BLUE MC. CC.,8U0,PASSENGER SIDE
BLUE M.M.,8U4,PASSENGER SIDE
69259BRETAINER, DOOR OUTSIDE HANDLE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
ECRU,TRIM0#
BLACK,TRIM2#; BLACK,TRIM2#,5#
CAMEL,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
ECRU,TRIM0#
BLACK,TRIM2#; BLACK,TRIM2#,5#
CAMEL,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
ECRU,TRIM0#
BLACK,TRIM2#; BLACK,TRIM2#,5#
CAMEL,TRIM4#
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
ECRU,TRIM0#
BLACK,TRIM20,21
CAMEL,TRIM4#
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69749CLAMP, FRONT DOOR LOCK LINK
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9016440105
main90164-40105
9016850057
main90168-50057
9018905003
main90189-05003
9356855016
main93568-55016
28 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota LEXUS SC430
This section contains 28 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LEXUS SC430. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
