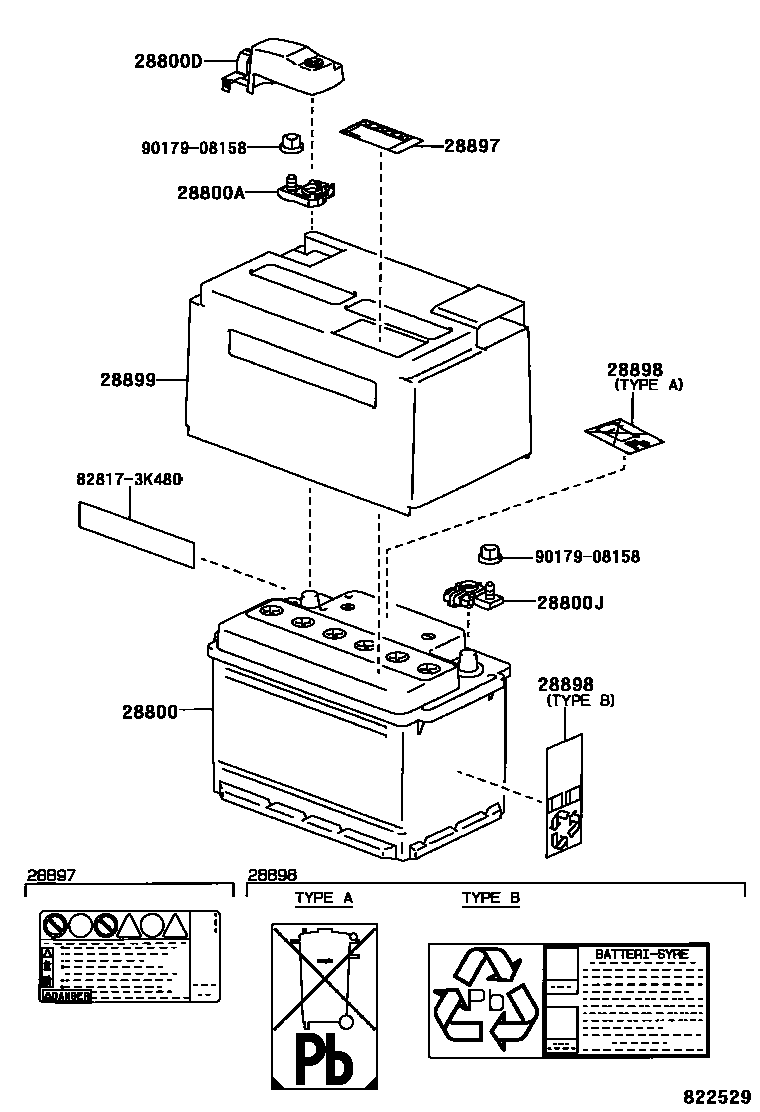

Toyota LEXUS SC430 — BATTERY & BATTERY CABLE

28800BATTERY

main28800-50110i200105-200508

LN3

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i200105-200508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30410i200105-200508

28800JTERMINAL, BATTERY NEGATIVE

main90982-06056i200105-200508

28897PLATE, BATTERY CAUTION

main28897-28010i200508

CHINA SPEC

main28897-50020i200105-200508

28898PLATE, BATTERY

main28898-16020i200105-200508

TYPE A:REFER TO ILLUSTRATION

main28898-46010i200105-200508

TYPE B:REFER TO ILLUSTRATION

28899INSULATOR, BATTERY

main28899-50040i200105-200508

828173K480PROTECTOR, WIRING HARNESS, NO.1

main82817-3K480

9017908158

main90179-08158

9 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota LEXUS SC430

This section contains 9 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota LEXUS SC430. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, PLATE, BATTERY CAUTION.
