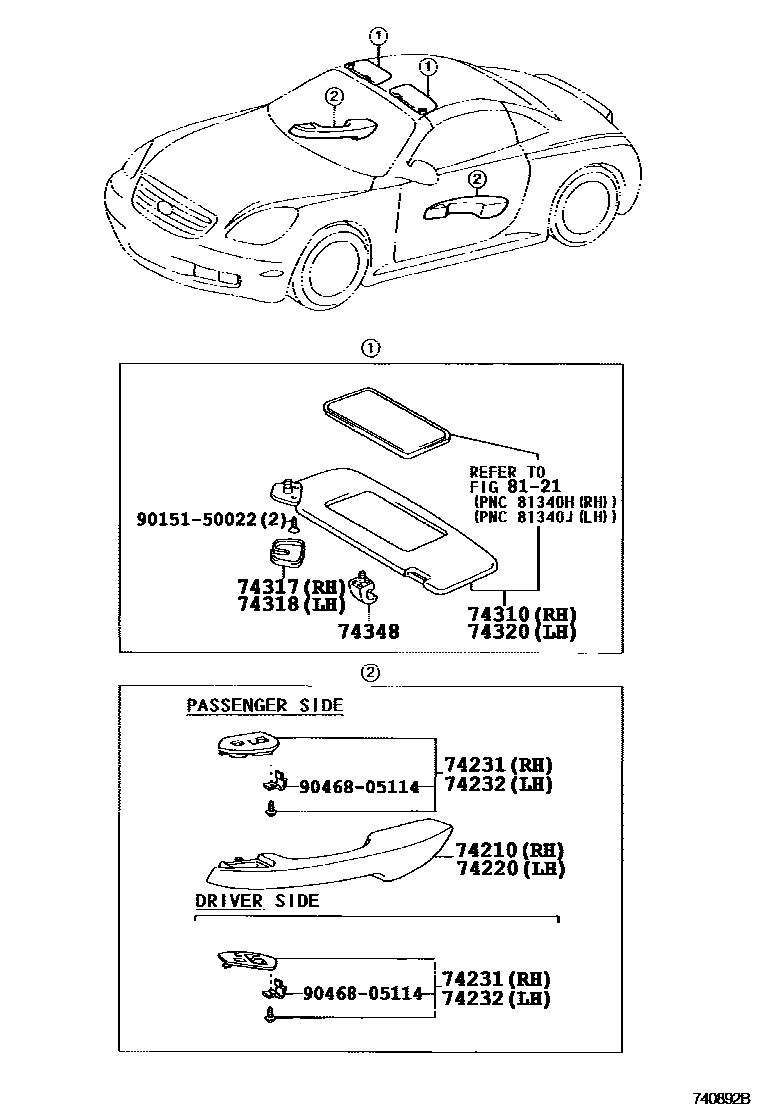

Toyota LEXUS SC430 — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-24100-A0i200105-200508

ECRU,TRIM0#

main74210-24100-C0i200105-200508

BLACK,TRIM20

main74210-24100-E0i200105-200508

SADDLE TAN,TRIM21

main74210-24120-A0i200508-201007

ECRU,TRIM0#

main74210-24120-C0i200508-201007

BLACK,TRIM2#

main74210-24120-E0i200508-201007

CAMEL,TRIM4#

main74210-24120-E1i200508-201007

SADDLE TAN,TRIM5#

74220ARMREST ASSY, FRONT, LH

main74220-24100-A0i200105-200508

ECRU,TRIM0#

main74220-24100-C0i200105-200508

BLACK,TRIM20

main74220-24100-E0i200105-200508

SADDLE TAN,TRIM21

main74220-24120-A0i200508-201007

ECRU,TRIM0#

main74220-24120-C0i200508-201007

BLACK,TRIM2#

main74220-24120-E0i200508-201007

CAMEL,TRIM4#

main74220-24120-E1i200508-201007

SADDLE TAN,TRIM5#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-24080-A0i200105-200508

ECRU,TRIM0#

main74231-24080-C0i200105-200508

BLACK,TRIM20

main74231-24080-E0i200105-200508

SADDLE TAN,TRIM21

main74231-24080-E1i200508

CAMEL,TRIM4#

main74231-24090-A0i200105-200508

ECRU,TRIM0#

main74231-24090-C0i200105-200508

BLACK,TRIM20

main74231-24090-E0i200105-200508

SADDLE TAN,TRIM21

main74231-24090-E1i200508

CAMEL,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-24060-A0i200508

ECRU,TRIM0#

main74232-24060-C0i200105-200508

BLACK,TRIM20

main74232-24060-E0i200105-200508

SADDLE TAN,TRIM21

main74232-24060-E1i200508

CAMEL,TRIM4#

main74232-24080-A0i200508

ECRU,TRIM0#

main74232-24080-C0i200508

BLACK,TRIM2#

main74232-24080-E0i200105-200508

SADDLE TAN,TRIM21

main74232-24080-E1i200508

CAMEL,TRIM4#

74310VISOR ASSY, RH

main74310-24191-A0i200708

TAIWAN SPEC,ECRU,TRIM0#

main74310-24191-C0i200708

TAIWAN SPEC,BLACK,TRIM2#

main74310-24191-E0i200708

TAIWAN SPEC,DK. BROWN,TRIM4#

main74310-24210-A0i200105-200208

ECRU,TRIM0#,20,21

main74310-24211-A0i200208-200508

ECRU,TRIM0#,20,21

main74310-24211-C0i200508

BLACK,TRIM2#

main74310-24211-E0i200508

DK. BROWN,TRIM4#

main74310-24220-A0i200105-200208

ECRU,TRIM0#,20,21

main74310-24221-A0i200208-200508

ECRU,TRIM0#,20,21

main74310-24221-C0i200508

BLACK,TRIM2#

main74310-24221-E0i200508

DK. BROWN,TRIM4#

main74310-24230-A0i200105-200208

W(AIR BAG CAUTION),ECRU,TRIM0#,20,21

main74310-24231-A0i200508

ECRU,TRIM0#,5#; HONG KONG SPEC,ECRU,TRIM0#

main74310-24231-C0i200508

BLACK,TRIM2#; HONG KONG SPEC,BLACK,TRIM2#

main74310-24231-E0i200508

DK. BROWN,TRIM4#; HONG KONG SPEC,DK. BROWN,TRIM4#

main74310-24250-A0i200508

CHINA SPEC,ECRU,TRIM0#; ECRU,TRIM0#

main74310-24250-C0i200508

BLACK,TRIM2#; CHINA SPEC,BLACK,TRIM2#

main74310-24250-E0i200508

CHINA SPEC,DK. BROWN,TRIM4#; DK. BROWN,TRIM4#

74317COVER, VISOR BRACKET, RH

main74317-30010-A2i200508

ECRU,TRIM0#; ECRU,TRIM0#,5#

main74317-30010-C0i200508

BLACK,TRIM2#

main74317-30010-E3i200508

DK.BROWN,TRIM4#

74318COVER, VISOR BRACKET, LH

main74317-30010-A2i200508

ECRU,TRIM0#; ECRU,TRIM0#,5#

main74317-30010-C0i200508

BLACK,TRIM2#

main74317-30010-E3i200508

DK.BROWN,TRIM4#

74320VISOR ASSY, LH

main74320-24181-A0i200708

TAIWAN SPEC,ECRU,TRIM0#

main74320-24181-C0i200708

TAIWAN SPEC,BLACK,TRIM2#

main74320-24181-E0i200708

TAIWAN SPEC,DK. BROWN,TRIM4#

main74320-24200-A0i200105-200208

W(AIR BAG CAUTION),ECRU,TRIM0#,20,21

main74320-24201-A0i200208-200508

W(AIR BAG CAUTION),ECRU,TRIM0#,20,21

main74320-24201-C0i200508

BLACK,TRIM2#

main74320-24201-E0i200508

DK. BROWN,TRIM4#

main74320-24210-A0i200105-200208

ECRU,TRIM0#,20,21

main74320-24211-A0i200508

ECRU,TRIM0#; ECRU,TRIM0#,5#; H0NG KONG SPEC,ECRU,TRIM0#

main74320-24211-C0i200508

BLACK,TRIM2#; H0NG KONG SPEC,BLACK,TRIM2#

main74320-24211-E0i200508

DK. BROWN,TRIM4#; H0NG KONG SPEC,DK. BROWN,TRIM4#

main74320-24220-A0i200205-200208

ECRU,TRIM0#,20,21

main74320-24221-A0i200208-200508

ECRU,TRIM0#,20,21

74348HOLDER, VISOR

main74348-12040-A1×2i200508

ECRU,TRIM0#; ECRU,TRIM0#,5#

main74348-12040-C0×2i200508

BLACK,TRIM2#

main74348-12040-E3×2i200508

DK.BROWN,TRIM4#

8121INTERIOR LAMP

→ Go to FIG 81-21

9015150022

main90151-50022

9046805114

main90468-05114

12 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota LEXUS SC430

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LEXUS SC430. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
