Toyota LEXUS SC430 — WINDSHIELD WIPER

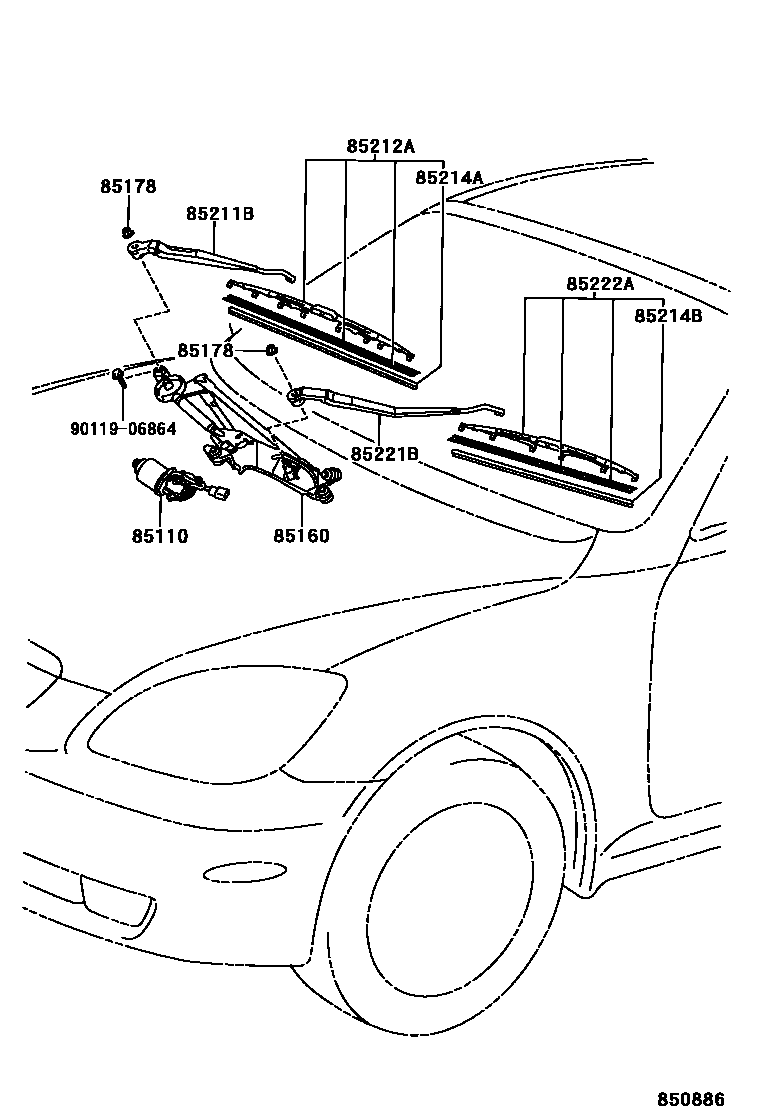

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-24080i200105-200508
main85110-24090i200105-200508
85160LINK ASSY, WINDSHIELD WIPER
main85150-24090i200105-200608
sub85150-24091
main85150-24091i200608
main85150-24100i200105-200608
sub85150-24101
main85150-24101i200608
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-10005i200105-200508
85211BARM, FRONT WIPER, RH
main85211-24100i200105-200608
sub85211-24101
main85211-24101i200608
main85211-24110i200105-200608
sub85211-24160
main85211-24120i200105-200608
sub85211-24121
main85211-24121i200608
main85211-24160i200608
85212ABLADE, FR WIPER, RH
main85212-24080i200105-200110
sub85212-53060
main85212-24090i200105-200608
main85212-24100i200105-200608
sub85212-30370
main85212-24110i200608-201007
main85212-24120i200608-201007
sub85212-53081
main85212-53060i200110-200605
sub85212-53061
main85212-53061i200606-200608
85214ARUBBER, WIPER, RH
main85214-24050i200105-200605
sub85214-24051
main85214-24051i200606-200608
main85214-30380i200608
main85214-50100i200105-200608
main85214-53090i200608
85214BRUBBER, WIPER, LH
main85214-24050i200105-200605
sub85214-24051
main85214-24051i200606-200608
main85214-30380i200608
main85214-50100i200105-200608
main85214-53090i200608
85221BARM, FRONT WIPER, LH
main85221-24110i200105-200608
sub85221-24160
main85221-24120i200105-200608
sub85221-24121
main85221-24121i200608
main85221-24160i200608
85222ABLADE, FR WIPER, LH
main85222-24090i200105-200608
main85222-24100i200105-200605
sub85222-24101
main85222-24101i200606-200608
sub85222-43021
main85222-24110i200608-201007
main85222-61010i200608-201007
sub85222-53060
9011906864
main90119-06864

10 parts on this diagram · 1 diagram in section
