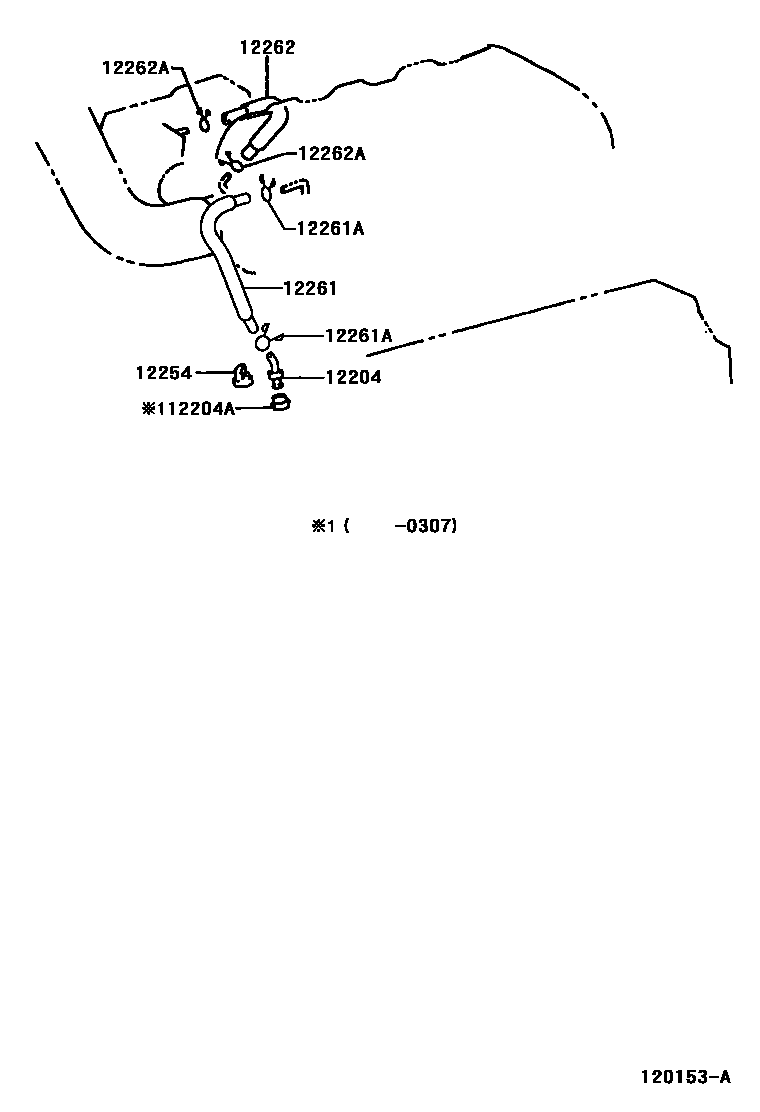

Toyota LEXUS SC430 — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-50020i3UZFE..UZZ40..5FC200105-200307

main12204-50030i3UZFE..UZZ40200307-200508

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i3UZFE..UZZ40..5FC200105-200307

12254COVER, VENTILATION VALVE

main12236-50010i3UZFE..UZZ40200105-200508

12261HOSE, VENTILATION

main12261-50050i3UZFE..UZZ40200105-200508

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15021i3UZFE..UZZ40200105-200508

12262HOSE, VENTILATION, NO.2

main12262-50060i3UZFE..UZZ40..5FC..ARL200105-200308

main12262-50090i3UZFE..UZZ40..5FC..(EUR,GCC)200105-200308

SINGAPORE SPEC

main12262-50090i3UZFE..UZZ40200308-200508

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-20010i3UZFE..UZZ40200105-200508

7 parts on this diagram · 1 diagram in section
