Toyota LEXUS SC430 — V-BELT

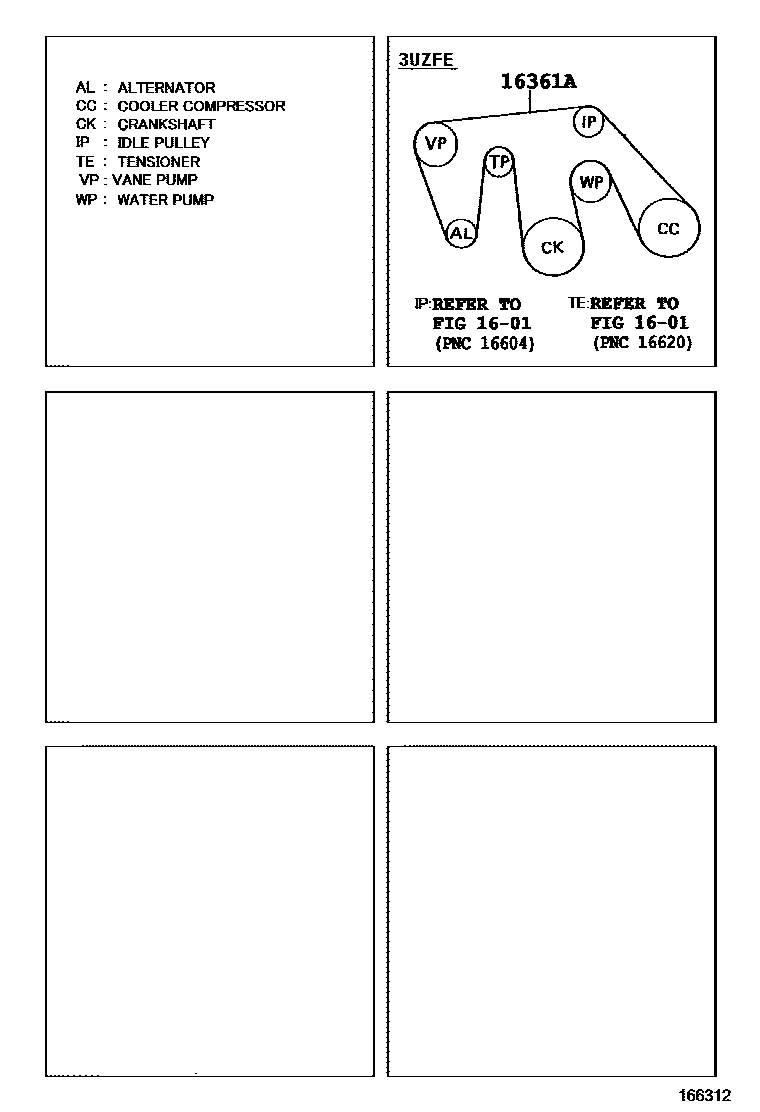

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02583i200402-200508

BANDO

main90916-02584i200105-200402

main90916-02584i200402-200508

MITUBOSI

main99366-D2230i200508-200908

main99366-H2230i200909

2 parts on this diagram · 1 diagram in section
