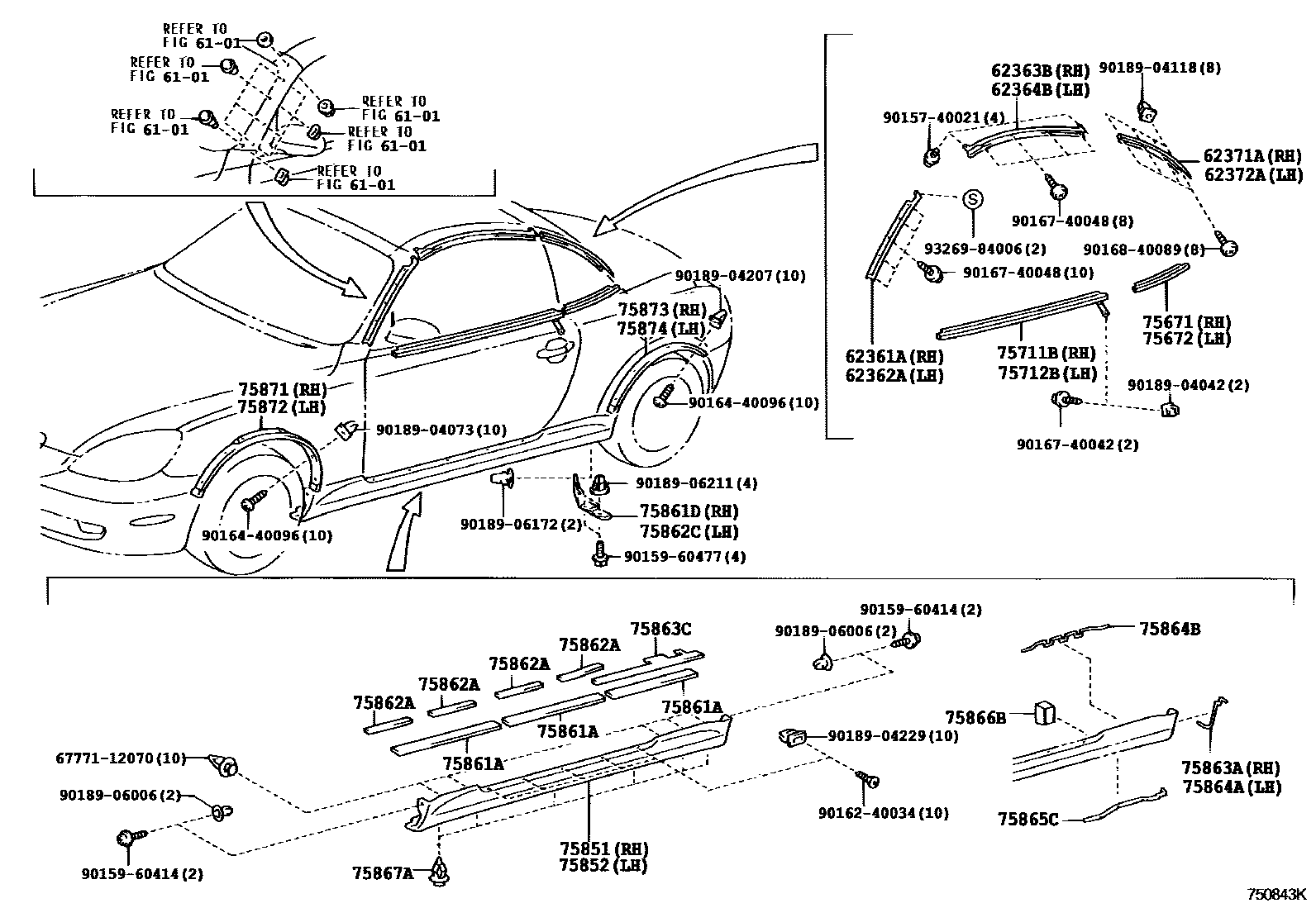

Toyota LEXUS SC430 — SIDE MOULDING
6101
62361ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62362ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62363BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH
62364BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH
62371ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH
62372ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH
75671MOULDING, QUARTER BELT, RH
75672MOULDING, QUARTER BELT, LH
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75861DPROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75862CPROTECTOR, ROCKER PANEL MOULDING, NO.2
75863ACOVER, ROCKER PANEL MOULDING END, REAR RH
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
RH
LH
75864ACOVER, ROCKER PANEL MOULDING END, REAR LH
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
6777112070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12070
9015740021
main90157-40021
9015960414
main90159-60414
9015960477
main90159-60477
9016240034
main90162-40034
9016440096
main90164-40096
9016740042
main90167-40042
9016740048
main90167-40048
9016840089
main90168-40089
9018904042
main90189-04042
9018904073
main90189-04073
9018904118
main90189-04118
9018904207
main90189-04207
9018904229
main90189-04229
9018906006
main90189-06006
9018906172
main90189-06172
9018906211
main90189-06211
9326984006
main93269-84006
46 parts on this diagram · 1 diagram in section
