Toyota LEXUS SC430 — ROOF SIDE VENTILATOR

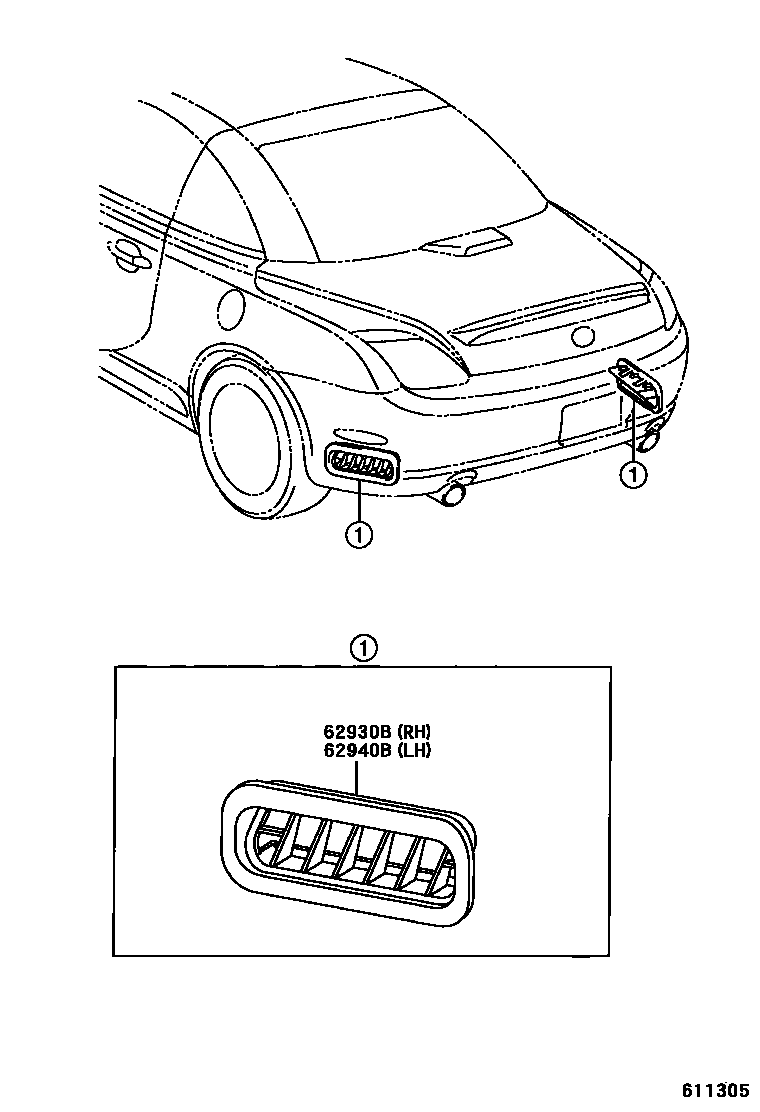

Parts diagram
62930BDUCT ASSY, QUARTER VENT, RH
main62940-24040i200105-201004
sub62940-24041
main62940-24041i201005
sub62940-24042
62940BDUCT ASSY, QUARTER VENT, LH
main62940-24040i200105-201004
sub62940-24041
main62940-24041i201005
sub62940-24042

2 parts on this diagram · 1 diagram in section
