Toyota LEXUS SC430 — METER

5501

83100METER ASSY, COMBINATION

main83800-24140iUZZ40..RHD..EUR200410-200508

IRELAND SPEC

main83800-24170iUZZ40..LHD..EUR200105-200508

main83800-24180iUZZ40..RHD..EUR200105-200508

main83800-24200iUZZ40..RHD..EUR200105-200508

HONG KONG SPEC

main83800-24220iUZZ40..GCC200205-200508

main83800-24260iUZZ40..EUR200508-200608

IRELAND SPEC

main83800-24270iUZZ40..RHD..EUR200508-200608

main83800-24290iUZZ40..RHD..EUR200508-200608

HONG KONG SPEC

main83800-24300iUZZ40..ARL200508-200608

sub83800-24530

main83800-24310iUZZ40..GCC200508-200608

main83800-24360iUZZ40..EUR200608-200708

IRELAND SPEC

main83800-24370iUZZ40..RHD..EUR200608-200708

main83800-24380iUZZ40..RHD..EUR200608-200708

HONG KONG SPEC

main83800-24390iUZZ40..ARL200608-200708

sub83800-24540

main83800-24400iUZZ40..GCC200608-200708

main83800-24410iUZZ40..LHD..EUR200608-200708

main83800-24460iUZZ40..LHD..EUR200708-201007

CYPRUS SPEC

main83800-24460iUZZ40..LHD..EUR200708-201007

IRELAND SPEC

main83800-24470iUZZ40..LHD..EUR200708-201007

CHILE SPEC

main83800-24470iUZZ40..LHD..EUR200708-201007

CHINA SPEC

main83800-24470iUZZ40..LHD..EUR200708-201007

BEIJING SPEC

main83800-24480iUZZ40..RHD..EUR200708-201007

main83800-24490iUZZ40..RHD..EUR200708-201007

HONG KONG SPEC

main83800-24500iUZZ40..ARL200708-200801

sub83800-24520

main83800-24510iUZZ40..GCC200708-201007

main83800-24520iUZZ40..ARL200801-201007

83138GGLASS, COMBINATION METER

main83852-24121iUZZ40200105-200508

main83852-24230iUZZ40200508-201007

9356855016

main93568-55016

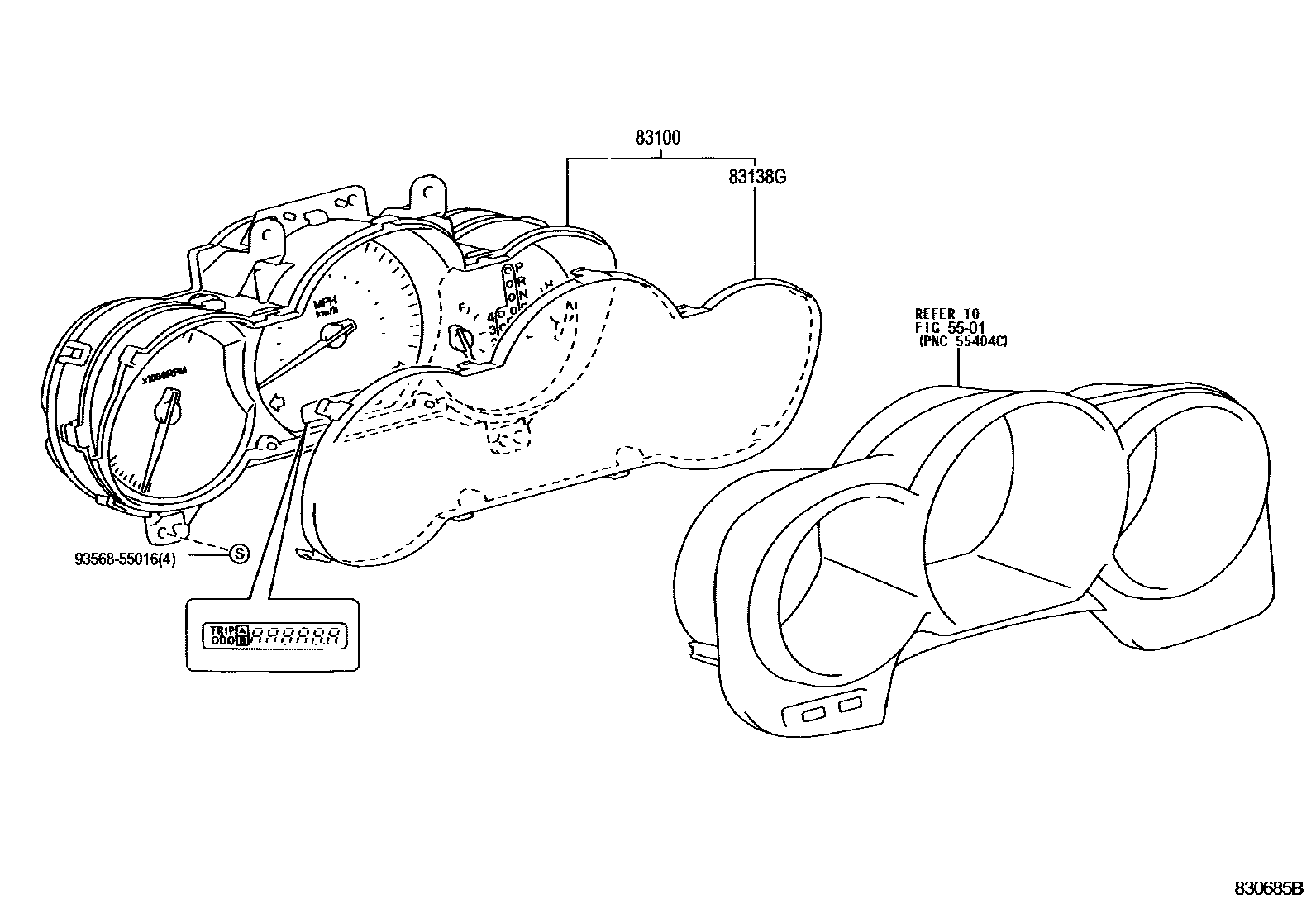

4 parts on this diagram · 1 diagram in section
