Toyota LEXUS SC430 — LOCK CYLINDER SET

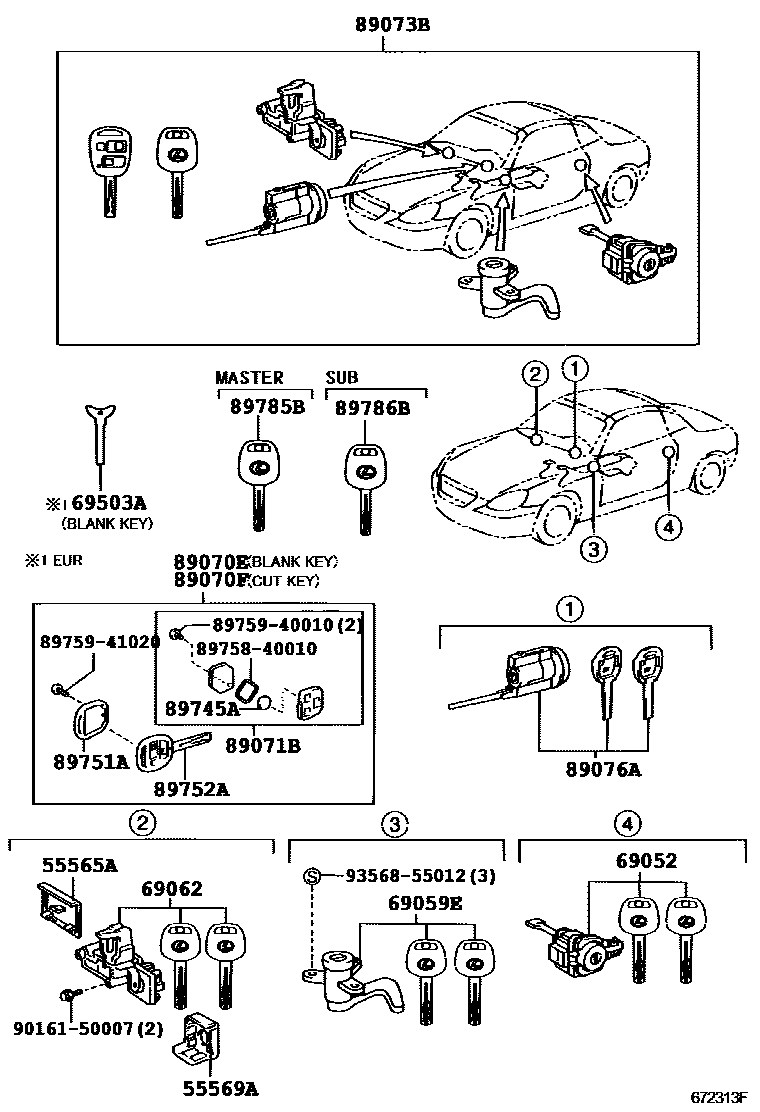

Parts diagram
55565AHANDLE, GLOVE COMPARTMENT DOOR LOCK
main55565-22020-A2i200105-200508
ECRU,TRIM0#
sub55565-22020
sub55565-24010
main55565-22020-C0i200105-200508
BLACK,TRIM20,21
sub55565-22020
sub55565-24010
main55565-24010-A0i200508
ECRU,TRIM0#
sub55565-24010
main55565-24010-C0i200508
BLACK,TRIM2#
sub55565-24010
main55565-24010-E0i200508
CAMEL,TRIM4#
sub55565-24010
55569ACOVER, GLOVE COMPARTMENT DOOR LOCK
main55569-22030-A2i200105-200508
ECRU,TRIM0#
sub55569-22030
sub55569-24010
main55569-22030-C0i200105-200508
BLACK,TRIM20,21
sub55569-22030
sub55569-24010
main55569-24010-A0i200508
ECRU,TRIM0#
sub55569-24010
main55569-24010-C0i200508
BLACK,TRIM2#
sub55569-24010
main55569-24010-E0i200508
CAMEL,TRIM4#
sub55569-24010
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-24070i200105-200508
69059ECYLINDER & KEY SET, CONSOLE COMPARTMENT LOCK
main69059-24010i200105-200508
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-24070i200105-200508
69503AKEY, BLANK
main90999-00233i200105-200405
MASTER KEY,CARD TYPE
89070ETRANSMITTER ASSY, DOOR CONTROL
main89070-24190i200105-200510
MASTER KEY
sub89070-24191
main89070-24191i200511-200908
MASTER KEY
sub89070-24192
main89070-24200i200105-200508
SUB KEY
sub89070-24201
main89070-24210i200105-200510
HONG KONG SPEC,MASTER KEY
sub89070-24211
main89070-24211i200511-200908
HONG KONG SPEC,MASTER KEY
main89070-24211i200708-200908
TAIWAN SPEC,MASTER KEY
main89070-24220i200105-200510
SINGAPORE SPEC
sub89070-24221
main89070-24221i200511-200606
SINGAPORE SPEC
sub89070-24222
main89070-24222i200607-200908
SINGAPORE SPEC
main89070-24300i200105-200508
HONG KONG SPEC,SUB KEY
sub89070-24301
main89070-24350i200508-200510
SUB KEY
sub89070-24351
main89070-24351i200511-200908
SUB KEY
sub89070-24352
main89070-24360i200508-200510
HONG KONG SPEC,SUB KEY
sub89070-24361
main89070-24361i200511-200908
HONG KONG SPEC,SUB KEY
main89070-24361i200708-200908
TAIWAN SPEC,SUB KEY
main89070-24370i200508-200510
CHINA SPEC,MASTER KEY
sub89070-24371
main89070-24371i200511-200705
BEIJING OR CHINA SPEC,MASTER KEY
sub89070-24372
main89070-24372i200706-200908
BEIJING OR CHINA SPEC,MASTER KEY
sub89070-24373
main89070-24380i200508-200510
CHINA SPEC,SUB KEY
sub89070-24381
main89070-24381i200511-200705
BEIJING OR CHINA SPEC,SUB KEY
sub89070-24382
main89070-24382i200706-200908
BEIJING OR CHINA SPEC,SUB KEY
sub89070-24383
main89070-24450i200508-200510
sub89070-24451
main89070-24451i200511-200908
sub89070-24452
main89070-24670i200908
MASTER KEY
sub89070-24671
main89070-24680i200908
SUB KEY
sub89070-24681
main89070-24690i200908
sub89070-24691
main89070-24700i200908
SINGAPORE SPEC
main89070-24720i200908
HONG KONG OR TAIWAN SPEC,MASTER KEY
main89070-24730i200908
HONG KONG OR TAIWAN SPEC,SUB KEY
main89070-24740i200908
BEIJING OR CHINA SPEC,MASTER KEY
sub89070-24741
main89070-24750i200908
BEIJING OR CHINA SPEC,SUB KEY
sub89070-24751
main89070-50750i200105-200508
sub89070-50751
main89070-50760i200205-200508
sub89070-50761
main89070-5A190i200208-200508
KOREA SPEC,MASTER KEY
sub89070-5A191
main89070-5A200i200208-200508
KOREA SPEC,SUB KEY
sub89070-5A201
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
main89070-24250i200105-200510
MASTER KEY
sub89070-24251
main89070-24251i200511-200908
MASTER KEY
sub89070-24252
main89070-24260i200105-200508
MASTER KEY & HONG KONG SPEC
sub89070-24261
main89070-24260i200508-200510
HONG KONG SPEC,MASTER KEY
sub89070-24261
main89070-24261i200708-200908
TAIWAN SPEC,MASTER KEY
main89070-24261i200511-200908
HONG KONG SPEC,MASTER KEY
main89070-24270i200105-200510
SINGAPORE SPEC
sub89070-24271
main89070-24271i200511-200607
SINGAPORE SPEC
sub89070-24272
main89070-24272i200608-200908
SINGAPORE SPEC
main89070-24280i200105-200508
SUB KEY
sub89070-24281
main89070-24290i200105-200508
SUB KEY & HONG KONG SPEC
sub89070-24291
main89070-24400i200508-200510
SUB KEY
sub89070-24401
main89070-24401i200511-200908
SUB KEY
sub89070-24402
main89070-24410i200508-200510
HONG KONG SPEC,SUB KEY
sub89070-24411
main89070-24411i200708-200908
TAIWAN SPEC,SUB KEY
main89070-24411i200511-200908
HONG KONG SPEC,SUB KEY
main89070-24420i200508-200510
CHINA SPEC,MASTER KEY
sub89070-24421
main89070-24421i200511-200705
CHINA SPEC,MASTER KEY
sub89070-24422
main89070-24422i200706-200908
CHINA SPEC,MASTER KEY
sub89070-24423
main89070-24430i200508-200510
CHINA SPEC,SUB KEY
sub89070-24431
main89070-24431i200511-200705
CHINA SPEC,SUB KEY
sub89070-24432
main89070-24432i200706-200908
CHINA SPEC,SUB KEY
sub89070-24433
main89070-24460i200508-200510
sub89070-24461
main89070-24461i200511-200908
sub89070-24462
main89070-24760i200908
BEIJING OR CHINA SPEC,SUB KEY
sub89070-24761
main89070-24800i200908
MASTER KEY
sub89070-24801
main89070-24810i200908
SUB KEY
sub89070-24811
main89070-24820i200908
sub89070-24821
main89070-24840i200908
SINGAPORE SPEC
main89070-24850i200908
HONG KONG OR SINGAPORE OR TAIWAN SPEC,MASTER KEY
main89070-24860i200908
HONG KONG OR TAIWAN SPEC,SUB KEY
main89070-24880i200908
BEIJING OR CHINA SPEC,MASTER KEY
sub89070-24881
main89070-5A060i200105-200508
sub89070-5A061
main89070-5A070i200205-200508
sub89070-5A071
main89070-5A210i200208-200508
MASTER KEY & KOREA SPEC
sub89070-5A211
main89070-5A220i200208-200508
SUB KEY & KOREA SPEC
sub89070-5A221
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-24030i200105-200508
SINGAPORE SPEC
main89071-24210i200908-201007
BEIJING OR CHINA SPEC,SUB KEY
main89071-24250i200908-201007
MASTER KEY
main89071-24260i200908-201007
SUB KEY
main89071-24270i200908-201007
main89071-24280i200908-201007
SINGAPORE SPEC
main89071-24300i200908-201007
BEIJING OR CHINA SPEC,MASTER KEY
main89071-24310i200908-201007
HONG KONG OR TAIWAN SPEC,MASTER KEY
main89071-24320i200908-201007
HONG KONG OR TAIWAN SPEC,SUB KEY
main89071-50241i200105-200908
MASTER KEY
main89071-50251i200105-200908
SUB KEY
main89071-50260i200105-200508
main89071-50270i200205-200508
main89071-50300i200105-200508
MASTER KEY & HONG KONG SPEC
main89071-50300i200508-200908
HONG KONG SPEC,MASTER KEY
main89071-50300i200708-200908
TAIWAN SPEC,MASTER KEY
main89071-50310i200708-200908
TAIWAN SPEC,SUB KEY
main89071-50310i200508-200908
HONG KONG SPEC,SUB KEY
main89071-50310i200105-200508
SUB KEY & HONG KONG SPEC
main89071-50370i200208-200508
MASTER KEY & KOREA SPEC
main89071-50390i200208-200508
SUB KEY & KOREA SPEC
main89071-50420i200508-200908
BEIJING OR CHINA SPEC,MASTER KEY
main89071-50430i200508-200908
BEIJING OR CHINA SPEC,SUB KEY
main89071-50440i200508-200908
89073BCYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
main69005-24330i200908
main69005-24340i200908
main69005-24380i200508
main69005-24400i200508
main69005-24420i200508-200908
main69005-24430i200508-200908
main89076-24030i200105-200508
sub89076-24031
main89076-24040i200105-200508
sub89076-24041
main89076-24050i200105-200508
sub89076-24051
main89076-24080i200205-200508
sub89076-24081
89076AIGN CYLINDER SET, LOCK W/TRANSMITTER HOUSING
main69057-24160i200508
sub69057-24180
main69057-24170i200508-200908
main69057-24180i200908
main89076-24060i200105-200507
sub89076-24061
main89076-24070i200105-200508
sub89076-24071
89745ABATTERY, TRANSMITTER
main89745-40010i200105-200508
main89745-40010i200208-200508
KOREA SPEC
89751ACOVER, TRANSMITTER HOUSING
main89751-24021i200508
HONG KONG SPEC,SUB KEY
main89751-24021i200708
TAIWAN SPEC,SUB KEY
main89751-24040i200105-200507
HONG KONG SPEC
sub89751-24041
main89751-24041i200708
TAIWAN SPEC,MASTER KEY
main89751-24041i200508
HONG KONG SPEC,MASTER KEY
main89751-24050i200105-200508
sub89751-24051
main89751-24051i200508
MASTER KEY
sub89751-24052
main89751-48011i200508
SUB KEY
sub89751-48012
main89751-48091i200508-200705
BEIJING OR CHINA SPEC,SUB KEY
sub89751-48092
main89751-48092i200706
BEIJING OR CHINA SPEC,SUB KEY
sub89751-48093
main89751-50090i200105-200508
SINGAPORE SPEC
sub89751-50091
main89751-50091i200508-200607
SINGAPORE SPEC
sub89751-50092
main89751-50092i200608
SINGAPORE SPEC
main89751-50100i200105-200508
sub89751-50101
main89751-50110i200208-200508
KOREA SPEC
sub89751-50111
main89751-53071i200508-200705
BEIJING OR CHINA SPEC,MASTER KEY
sub89751-53072
main89751-53072i200706
BEIJING OR CHINA SPEC,MASTER KEY
sub89751-53073
89752ACASE, TRANSMITTER HOUSING
main89752-24010i200508
SUB KEY(CUT)
main89752-24020i200508
SUB KEY(BLANK)
main89752-33070i200105-200508
MASTER KEY(BLANK)
main89752-33080i200105-200508
MASTER KEY(CUT)
main89752-50040i200105-200508
SUB KEY(CUT)
main89752-50050i200105-200508
SUB KEY(BLANK)
89785BTRANSMITTER, TRANSPONDER KEY MASTER
main89785-24050i200908
BLANK KEY
main89785-24060i200908
CUT KEY
main89785-50110i200105-200908
BLANK KEY
sub89785-60180
main89785-50130i200105-200908
CUT KEY
sub89785-60140
89786BTRANSMITTER, TRANSPONDER KEY SUB
main89786-24020i200908
BLANK KEY
main89786-24030i200908
CUT KEY
main89786-50110i200105-200908
BLANK KEY
sub89786-60150
main89786-50130i200105-200908
CUT KEY
sub89786-60200
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
9016150007
main90161-50007
9356855012
main93568-55012

21 parts on this diagram · 4 diagrams in section
