Toyota LEXUS SC430 — INTERIOR LAMP

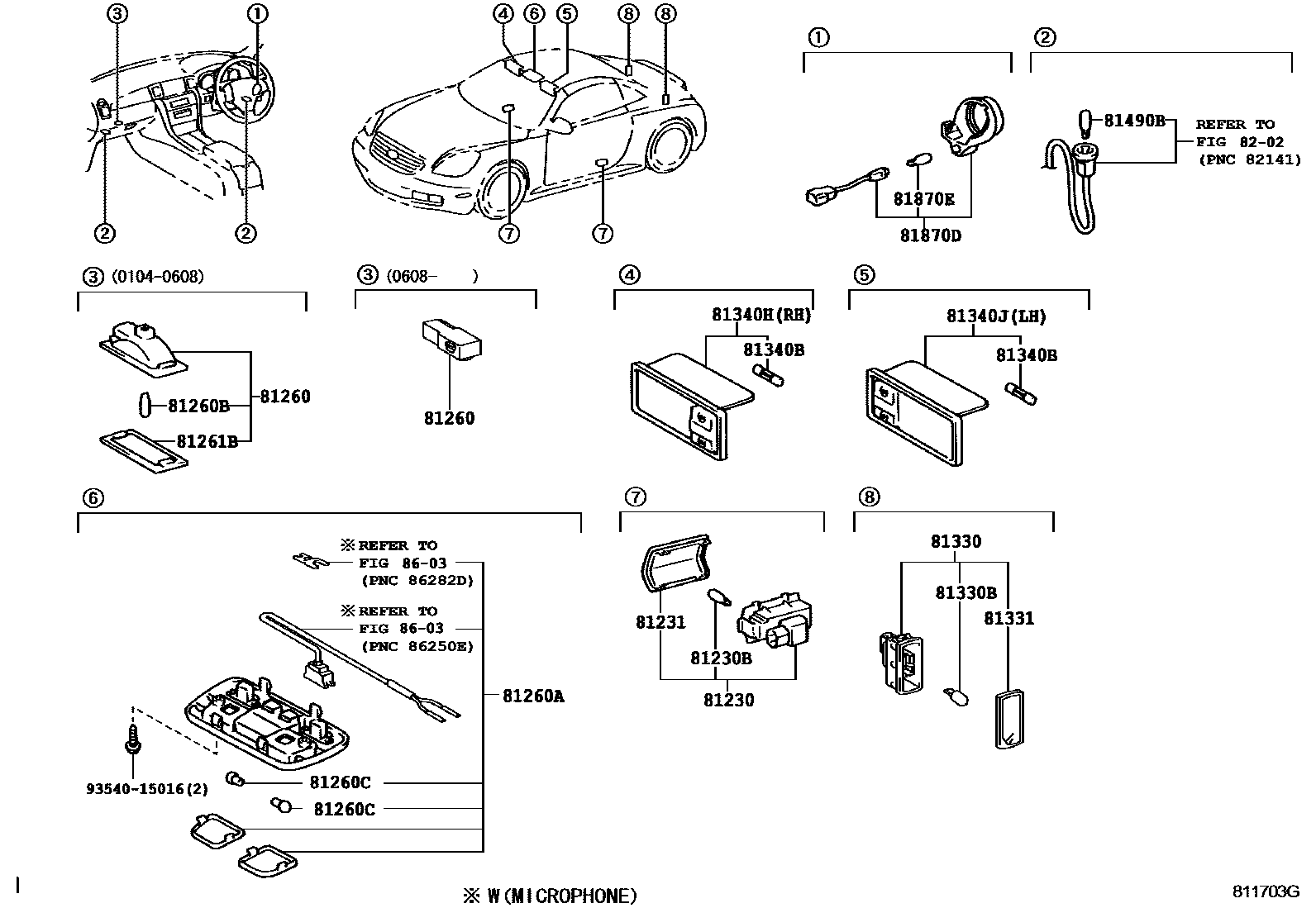

Parts diagram
81230LAMP ASSY, COURTESY
main81230-30160i200105-200508
main81230-30170i200105-200508
81230BBULB(FOR COURTESY LAMP)
main90981-11020i200105-200508
12V 3.8W
81231LENS, COURTESY LAMP
main81231-50050i200105-200508
main81231-50060i200105-200508
81260LAMP ASSY, GLOVE BOX
main81080-30010i200608
main81260-50010i200105-200608
81260ALAMP ASSY, MAP
main81260-24070-A0i200105-200208
ECRU,TRIM0#,20,21
sub81260-24071
main81260-24071-A0i200508
ECRU,TRIM0#,5#
main81260-24071-A0i200208-200508
ECRU,TRIM0#,20,21
main81260-24071-A0i200508
ECRU,TRIM0#
main81260-24071-C0i200508
BLACK,TRIM2#
main81260-24071-E0i200508
DK.BROWN,TRIM4#
main81260-24110-A0i200508
W(MICROPHONE),ECRU,TRIM0#,5#
main81260-24110-A0i200408-200508
W(MICROPHONE),ECRU,TRIM0#,20,21
main81260-24110-A0i200508
W(MICROPHONE),ECRU,TRIM0#
main81260-24110-C0i200508
W(MICROPHONE),BLACK,TRIM2#
main81260-24110-E0i200508
W(MICROPHONE),DK.BROWN,TRIM4#
main81260-24120-A0i200408-200508
W(MICROPHONE),ECRU,TRIM0#,20,21
main81260-24120-A0i200508
W(MICROPHONE),ECRU,TRIM0#
main81260-24120-C0i200508
W(MICROPHONE),BLACK,TRIM2#
main81260-24120-E0i200508
W(MICROPHONE),DK.BROWN,TRIM4#
81260BBULB(FOR GLOVE BOX)
main90981-11018i200105-200608
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
main90981-12005i200105-201007
12V 8W
81261BLENS,GLOVE BOX LAMP
main81261-50010i200105-200608
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81230-30140i200105-200508
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90981-11020i200105-200508
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
main81231-50010i200105-200508
81340BBULB (FOR VANITY LAMP)
main90981-14003i200105-201007
12V 1.5W
81340HLAMP ASSY, VANITY, RH
main81340-33090-A2i200105-200508
ECRU,TRIM0#,20,21
main81340-33090-A2i200508
ECRU,TRIM0#,5#
main81340-33090-A2i200508
ECRU,TRIM0#
main81340-33090-C0i200508
BLACK,TRIM2#
main81340-33090-E4i200508
DK.BROWN,TRIM4#
main81340-33130-A2i200708
TAIWAN SPEC,ECRU,TRIM0#
sub81340-60060
main81340-33130-C0i200708
TAIWAN SPEC,BLACK,TRIM2#
sub81340-60060
main81340-33130-E1i200708
TAIWAN SPEC,CAMEL/DK.BROWN,TRIM4#
sub81340-60060
81340JLAMP ASSY, VANITY, LH
main81350-33040-A2i200105-200508
ECRU,TRIM0#,20,21
main81350-33040-A2i200508
ECRU,TRIM0#,5#
main81350-33040-A2i200508
ECRU,TRIM0#
main81350-33040-C0i200508
BLACK,TRIM2#
main81350-33040-E4i200508
DK.BROWN,TRIM4#
main81350-33050-A2i200708
TAIWAN SPEC,ECRU,TRIM0#
sub81350-60010
sub81350-60020
main81350-33050-C0i200708
TAIWAN SPEC,BLACK,TRIM2#
sub81350-60010
sub81350-60020
main81350-33050-E1i200708
TAIWAN SPEC,CAMEL/DK.BROWN,TRIM4#
sub81350-60010
sub81350-60020
81490BBULB (FOR FOOT LAMP)
main90981-11041i200105-201007
14V 1.4W
81870DLAMP ASSY, KEY CYLINDER
main81870-30060i200105-200508
81870EBULB, KEY CYLINDER LAMP
main90981-11014i200105-200508
14V 1.4W
main90981-11018i200508-201007
12V 1.2W W/O SOCKET
8202
8603
9354015016
main93540-15016
