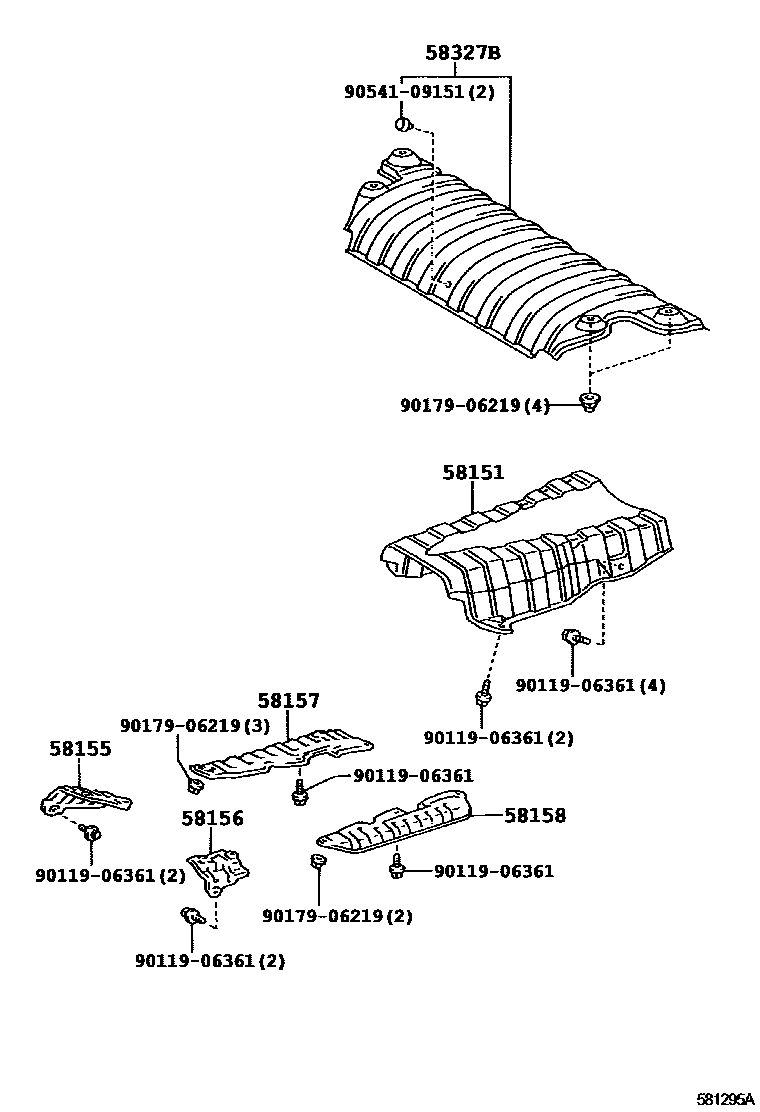

Toyota LEXUS SC430 — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-24050iUZZ40200105-200508

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30030iUZZ40200105-200508

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30071iUZZ40200105-200508

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30050iUZZ40200105-200508

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30040iUZZ40200105-200508

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-24020iUZZ40200105-200508

9011906361

main90119-06361

9017906219

main90179-06219

9054109151

main90541-09151

9 parts on this diagram · 1 diagram in section
