Toyota LEXUS SC430 — ENGINE OVERHAUL GASKET KIT

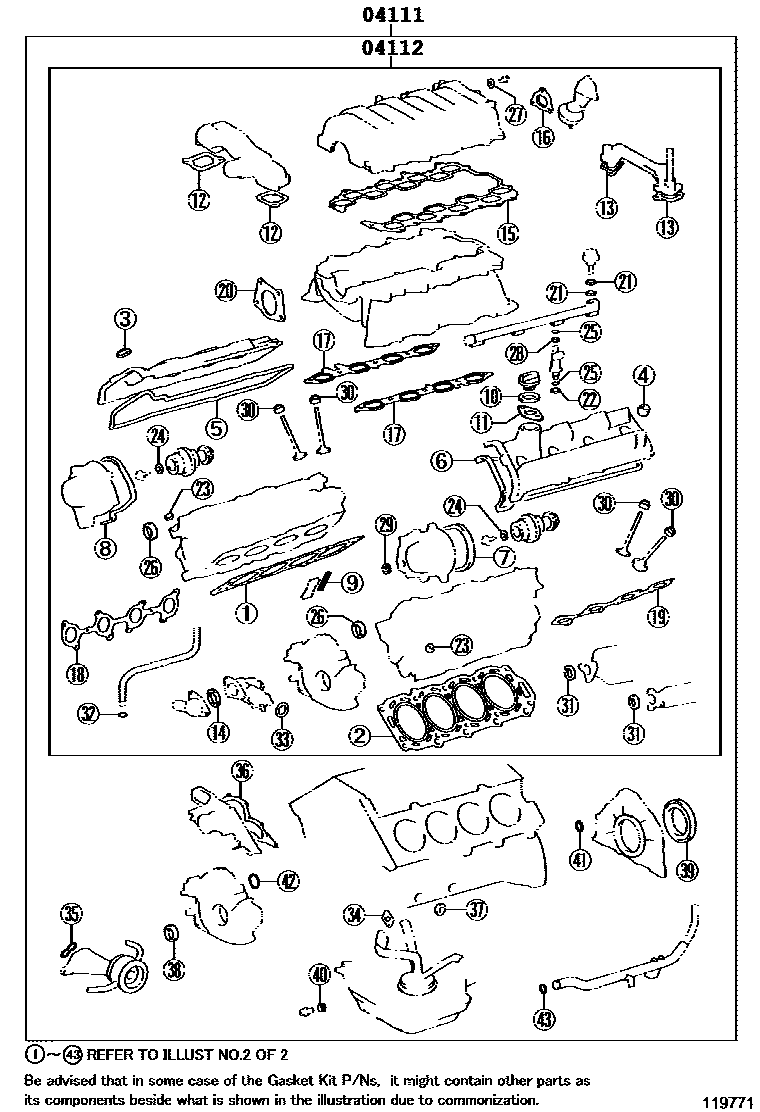

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-50160i200105-200405

main04111-50320i200405-200607

main04111-50460i200508-200606

main04111-50480i200502-200508

HONG KONG SPEC

main04111-50490i200502-200508

main04111-50511i200606-200907

main04111-50512i200907

04112GASKET KIT, ENGINE VALVE GRIND

main04112-50160i200105-200405

main04112-50300i200405-200607

main04112-50311i200606-200907

main04112-50312i200907

main04112-50450i200508-200606

main04112-50470i200502-200508

HONG KONG SPEC

2 parts on this diagram · 2 diagrams in section
