Toyota LEXUS SC430 — DISC WHEEL & WHEEL CAP

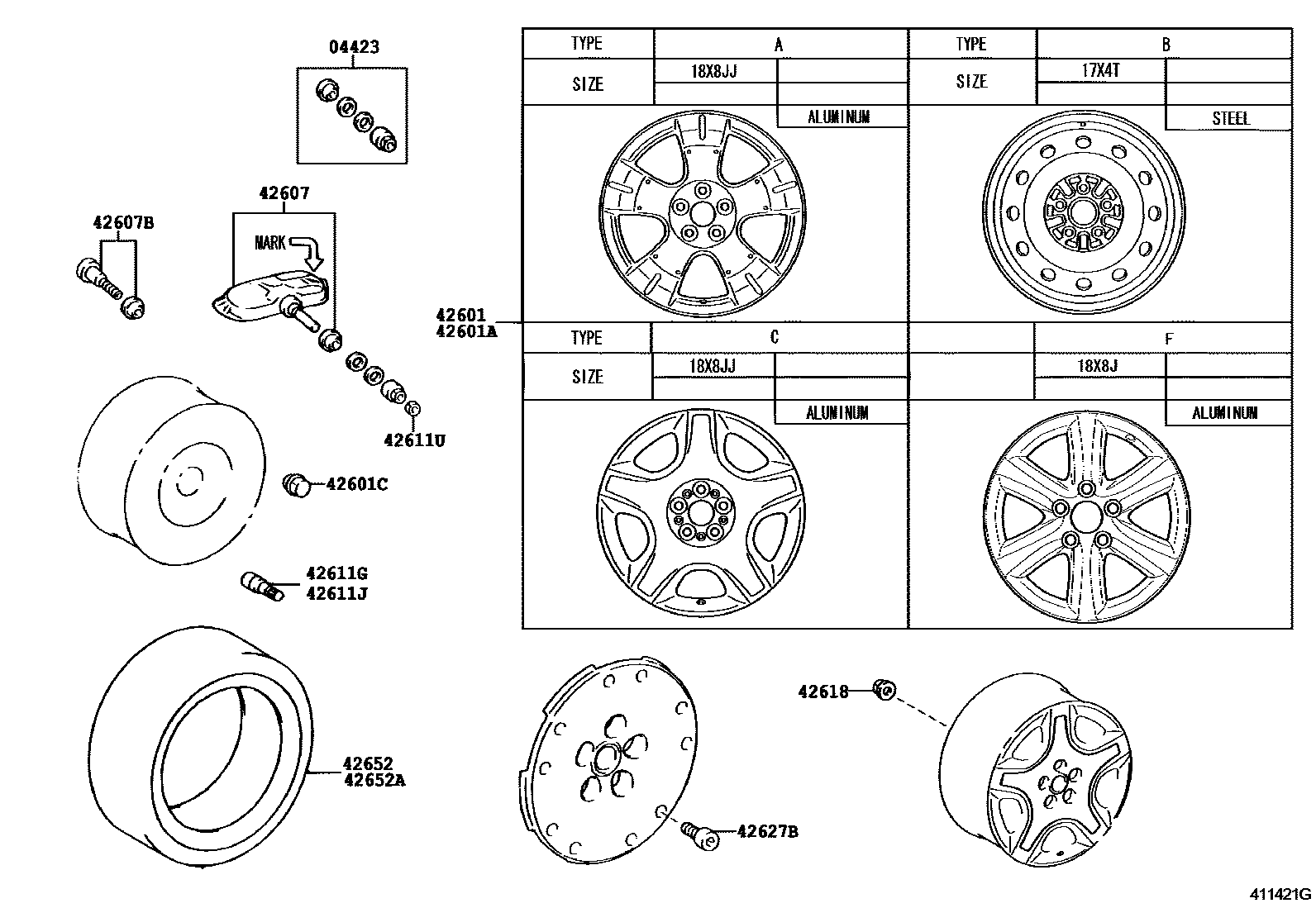

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-24010i200105-200306
sub04423-24030
main04423-24020i200206-200208
sub04423-24040
main04423-24030i200306-200608
main04423-33030i200608-201007
sub04423-33060
42601WHEEL, DISC
main42611-24420i200105-200410
18X8JJ,TYPE A:REFER ILLUST.
sub42611-24470
main42611-24470i200506-200508
18X8JJ,HONG KONG OR KOREA SPEC,TYPE A:REFER ILLUST.
sub42611-24500
main42611-24470i200411-200508
18X8JJ,TYPE A:REFER ILLUST.
sub42611-24500
main42611-24500i200508-200908
18X8JJ,CHINA OR HONG KONG SPEC,TYPE A:REFER ILLUST.
sub42611-24530
main42611-24500i200508-200908
18X8JJ,TYPE A:REFER ILLUST.
sub42611-24530
main42611-24500i200608-200908
18X8JJ,ISRAEL OR BEIJING SPEC,TYPE A:REFER ILLUST.
sub42611-24530
main42611-24510i200508-200908
18X8JJ,CHINA OR HONG KONG SPEC,TYPE C:REFER ILLUST.
sub42611-24520
main42611-24510i200608-200908
18X8JJ,ISRAEL OR BEIJING SPEC,TYPE C:REFER ILLUST.
sub42611-24520
main42611-24510i200708-200908
18X8JJ,CHILE SPEC,TYPE C:REFER ILLUST.
sub42611-24520
main42611-24510i200508-200908
18X8JJ,TYPE C:REFER ILLUST.
sub42611-24520
main42611-24520i200508-200908
18X8JJ,TYPE C:REFER ILLUST.
main42611-24530i200508-200908
18X8JJ,TYPE A:REFER ILLUST.
main42611-24540i200506-200508
18X8JJ,TYPE A:REFER ILLUST.
sub42611-24530
main4261A-24020i200908
18X8J,CHILE SPEC,TYPE F:REFER ILLUST.
sub4261A-24021
main4261A-24020i200908
18X8J,TAIWAN SPEC OR CHINA SPEC,TYPE F:REFER ILLUST.
sub4261A-24021
main4261A-24020i200908
18X8J,ISRAEL OR BEIJING SPEC,TYPE F:REFER ILLUST.
sub4261A-24021
main4261A-24020i200908
18X8J,TYPE F:REFER ILLUST.
sub4261A-24021
main4261A-24020i200908
18X8J,HONG KONG SPEC,TYPE F:REFER ILLUST.
sub4261A-24021
main4261A-24030i200908
18X8J,TYPE F:REFER ILLUST.
sub4261A-24031
main4261A-24030i200908
18X8J,RUSSIA SPEC,TYPE F:REFER ILLUST.
sub4261A-24031
main4261A-24040i200908
18X8J,CHROME PLATED,HONG KONG SPEC,TYPE F:REFER ILLUST.
sub4261A-24041
main4261A-24040i200908
18X8J,CHROME PLATED,TYPE F:REFER ILLUST.
sub4261A-24041
main4261A-24040i200908
18X8J,CHROME PLATED,CHILE SPEC,TYPE F:REFER ILLUST.
sub4261A-24041
main4261A-24040i200908
18X8J,CHROME PLATED,TAIWAN SPEC OR CHINA SPEC,TYPE F:REFER ILLUST.
sub4261A-24041
main4261A-24040i200908
18X8J,CHROME PLATED,ISRAEL OR BEIJING SPEC,TYPE F:REFER ILLUST.
sub4261A-24041
main4261A-24050i200908
18X8J,CHROME PLATED,TYPE F:REFER ILLUST.
sub4261A-24051
main4261A-24050i200908
18X8J,CHROME PLATED,RUSSIA SPEC,TYPE F:REFER ILLUST.
sub4261A-24051
42601AWHEEL, DISC (FOR SPARE)
main42611-24430i200708
17X4T,TAIWAN SPEC,TYPE B:REFER ILLUST.
sub42611-24431
main42611-24430i200908
17X4T,TYPE B:REFER ILLUST.
sub42611-24431
main42611-50090i200105-200908
17X4T,TYPE B:REFER ILLUST.
sub42611-50091
42601CNUT, HUB (FOR AXLE)
main90942-01033i200908
main90942-01058i200105-200908
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-24010i200105-200608
HONG KONG SPEC,WHITE:REFER ILLUST.
sub42607-24011
main42607-24020i200105-200608
HONG KONG SPEC,BLUE:REFER ILLUST.
sub42607-24021
main42607-24030i200105-200608
HONG KONG SPEC,RED:REFER ILLUST.
sub42607-24031
main42607-24040i200105-200608
HONG KONG SPEC,GOLD:REFER ILLUST.
sub42607-24041
main42607-24090i200105-200608
WHITE:REFER ILLUST.
sub42607-24091
main42607-24100i200105-200608
BLUE:REFER ILLUST.
sub42607-24101
main42607-24110i200105-200608
RED:REFER ILLUST.
sub42607-24111
main42607-24120i200105-200608
GOLD:REFER ILLUST.
sub42607-24121
main42607-33021i200708
TAIWAN SPEC
sub42607-33022
main42607-33021i200608
HONG KONG SPEC
sub42607-33022
main42607-50010i200608-200908
sub42607-50011
main42607-50011i200908
sub42607-50012
42607BVALVE SUB-ASSY, TIRE PRESSURE BALANCER
main42607-24130i200105-200508
TYPE A:REFER ILLUST.
sub90942-05028
main42607-24130i200508
CHINA SPEC,TYPE A:REFER ILLUST.
sub90942-05028
main42607-24130i200608
BEIJING SPEC,TYPE A:REFER ILLUST.
sub90942-05028
main42607-24130i200708
CHILE SPEC,TYPE A:REFER ILLUST.
sub90942-05028
42611GVALVE (FOR TUBELESS TIRE)
main90942-05028i200910
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200105-200508
42611UCAP, TIRE VALVE
main90942-05029i200208-200508
KOREA SPEC
main90942-05029i200105-200508
main90942-05029i200508
BEIJING OR CHINA SPEC
main90942-05037i200105-200508
42618RETAINER, WHEEL CAP
main42618-24010i200508-200908
42627BBOLT, WHEEL CAP SET
main42627-24010i200105-200908
42652TIRE
main42652-24200i200105-200407
245/40ZR18,*D/L
sub42652-24201
main42652-24201i200408-200508
245/40ZR18,*D/L
main42652-24270i200105-200407
245/40ZR18,*D/L
sub42652-24271
main42652-24271i200408-200508
245/40ZR18,*D/L
main42652-24280i200105-200206
245/40ZR18,*B/S
sub42652-24340
main42652-24290i200105-200206
245/40ZR18,*B/S
sub42652-24350
main42652-24310i200205-200407
245/40ZR18,*D/L
sub42652-24311
main42652-24311i200408-200508
245/40ZR18,*D/L
main42652-24331i200302-200408
245/40ZR18,*B/S
main42652-24332i200408-200508
245/40ZR18,*B/S,RUN FLAT
sub42652-24333
main42652-24332i200508-200603
245/40ZR18,*B/S
sub42652-24333
main42652-24333i200603-200908
245/40ZR18,*B/S
sub42652-24334
main42652-24340i200206-200302
245/40ZR18,*D/L,RUN FLAT
main42652-24341i200408-200508
245/40ZR18,*D/L,RUN FLAT
sub42652-24343
main42652-24341i200508-200603
245/40ZR18,*D/L
sub42652-24343
main42652-24342i200603-200807
245/40ZR18,*D/L
sub42652-24343
main42652-24343i200808-200908
245/40ZR18,*D/L
sub42652-24344
main42652-24350i200206-200407
245/40ZR18,*D/L,RUN FLAT
main42652-24351i200508-200605
245/40ZR18,*D/L
main42652-24351i200408-200508
245/40ZR18,*D/L,RUN FLAT
main42652-24352i200605-200807
245/40ZR18,*D/L
sub42652-24353
main42652-24353i200808-200908
245/40ZR18,*D/L
sub42652-24354
main42652-24370i200302-200408
245/40ZR18,*B/S
main42652-24371i200508-200603
245/40ZR18,*B/S
sub42652-24372
main42652-24371i200408-200508
245/40ZR18,*B/S,RUN FLAT
sub42652-24372
main42652-24372i200603-200908
245/40R18,*B/S
sub42652-24373
main42652-24410i200608-200807
245/40ZR18,*D/L,ISRAEL OR BEIJING SPEC
sub42652-24411
main42652-24410i200508-200807
245/40ZR18,*D/L
sub42652-24411
main42652-24411i200808-201007
245/40R18,*D/L
main42652-24411i200808-201007
245/40R18,*D/L,ISRAEL SPEC
main42652-30830i200508-200807
245/40R18,*D/L
sub42652-30831
main42652-30831i200808-201007
245/40R18,*D/L
main42652-30840i200508-200807
245/40R18,*D/L
sub42652-30841
main42652-30841i200808-200908
245/40R18,*D/L
sub42652-30842
main42652-30860i200706-200807
245/40R18,*D/L,BEIJING OR CHINA SPEC
sub42652-30861
main42652-30861i200808-200908
245/40R18,*D/L,BEIJING OR CHINA SPEC
42652ATIRE (FOR SPARE)
main42652-14740i200105-200908
T145/70R17
main42652-24320i200508-200908
T145/70R17,CHINA OR RUSSIA SPEC
main42652-24320i200205-201007
T145/70R17

13 parts on this diagram · 3 diagrams in section
