Toyota LEXUS SC430 — ARMREST & VISOR

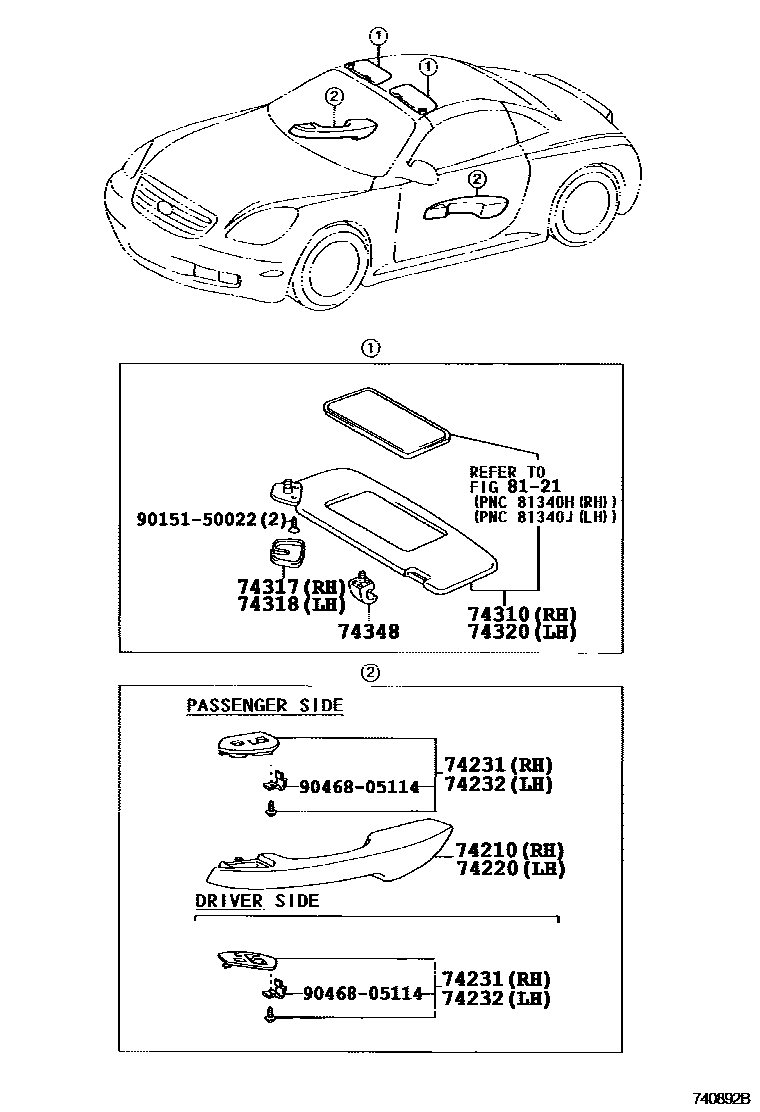

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-24100-A0i200105-200508
ECRU,TRIM0#
sub74210-24110
main74210-24100-C0i200105-200508
BLACK,TRIM20
sub74210-24110
main74210-24100-E0i200105-200508
SADDLE TAN,TRIM21
sub74210-24110
main74210-24120-A0i200508-201007
ECRU,TRIM0#
main74210-24120-C0i200508-201007
BLACK,TRIM2#
main74210-24120-E0i200508-201007
CAMEL,TRIM4#
main74210-24120-E1i200508-201007
SADDLE TAN,TRIM5#
74220ARMREST ASSY, FRONT, LH
main74220-24100-A0i200105-200508
ECRU,TRIM0#
sub74220-24110
main74220-24100-C0i200105-200508
BLACK,TRIM20
sub74220-24110
main74220-24100-E0i200105-200508
SADDLE TAN,TRIM21
sub74220-24110
main74220-24120-A0i200508-201007
ECRU,TRIM0#
main74220-24120-C0i200508-201007
BLACK,TRIM2#
main74220-24120-E0i200508-201007
CAMEL,TRIM4#
main74220-24120-E1i200508-201007
SADDLE TAN,TRIM5#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-24080-A0i200105-200508
ECRU,TRIM0#
sub74231-24900
main74231-24080-C0i200105-200508
BLACK,TRIM20
sub74231-24900
main74231-24080-C0i200508
BLACK,TRIM2#
sub74231-24900
main74231-24080-E0i200105-200508
SADDLE TAN,TRIM21
sub74231-24900
main74231-24080-E1i200508
CAMEL,TRIM4#
sub74231-24900
main74231-24090-A0i200105-200508
ECRU,TRIM0#
sub74231-24901
main74231-24090-C0i200105-200508
BLACK,TRIM20
sub74231-24901
main74231-24090-C0i200508
BLACK,TRIM2#
sub74231-24901
main74231-24090-E0i200105-200508
SADDLE TAN,TRIM21
sub74231-24901
main74231-24090-E1i200508
CAMEL,TRIM4#
sub74231-24901
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-24060-A0i200105-200508
ECRU,TRIM0#
sub74232-24902
sub74232-24090
main74232-24060-C0i200105-200508
BLACK,TRIM20
sub74232-24902
sub74232-24090
main74232-24060-C0i200508
BLACK,TRIM2#
sub74232-24902
sub74232-24090
main74232-24060-E0i200105-200508
SADDLE TAN,TRIM21
sub74232-24902
sub74232-24090
main74232-24060-E1i200508
CAMEL,TRIM4#
sub74232-24902
sub74232-24090
main74232-24080-A0i200105-200508
ECRU,TRIM0#
sub74232-24901
main74232-24080-C0i200508
BLACK,TRIM2#
sub74232-24901
main74232-24080-C0i200105-200508
BLACK,TRIM20
sub74232-24901
main74232-24080-E0i200105-200508
SADDLE TAN,TRIM21
sub74232-24901
main74232-24080-E1i200508
CAMEL,TRIM4#
sub74232-24901
74310VISOR ASSY, RH
main74310-24191-A0i200708
TAIWAN SPEC,ECRU,TRIM0#
main74310-24191-C0i200708
TAIWAN SPEC,BLACK,TRIM2#
main74310-24191-E0i200708
TAIWAN SPEC,DK. BROWN,TRIM4#
main74310-24210-A0i200105-200208
ECRU,TRIM0#,20,21
sub74310-24211
main74310-24211-A0i200208-200508
ECRU,TRIM0#,20,21
main74310-24211-A0i200508
ECRU,TRIM0#
main74310-24211-C0i200508
BLACK,TRIM2#
main74310-24211-E0i200508
DK. BROWN,TRIM4#
main74310-24220-A0i200105-200208
ECRU,TRIM0#,20,21
sub74310-24221
main74310-24221-A0i200208-200508
ECRU,TRIM0#,20,21
main74310-24221-A0i200508
ECRU,TRIM0#
main74310-24221-C0i200508
BLACK,TRIM2#
main74310-24221-E0i200508
DK. BROWN,TRIM4#
main74310-24230-A0i200105-200208
W(AIR BAG CAUTION),ECRU,TRIM0#,20,21
sub74310-24231
main74310-24231-A0i200508
HONG KONG SPEC,ECRU,TRIM0#
main74310-24231-A0i200508
ECRU,TRIM0#,5#
main74310-24231-A0i200208-200508
W(AIR BAG CAUTION),ECRU,TRIM0#,20,21
main74310-24231-C0i200508
HONG KONG SPEC,BLACK,TRIM2#
main74310-24231-C0i200508
BLACK,TRIM2#
main74310-24231-E0i200508
HONG KONG SPEC,DK. BROWN,TRIM4#
main74310-24231-E0i200508
DK. BROWN,TRIM4#
main74310-24250-A0i200508
CHINA SPEC,ECRU,TRIM0#
main74310-24250-A0i200508
ECRU,TRIM0#
main74310-24250-C0i200508
CHINA SPEC,BLACK,TRIM2#
main74310-24250-C0i200508
BLACK,TRIM2#
main74310-24250-E0i200508
DK. BROWN,TRIM4#
main74310-24250-E0i200508
CHINA SPEC,DK. BROWN,TRIM4#
74317COVER, VISOR BRACKET, RH
main74317-30010-A2i200508
ECRU,TRIM0#,5#
sub74317-30010
main74317-30010-A2i200508
ECRU,TRIM0#
sub74317-30010
main74317-30010-A2i200105-200508
ECRU,TRIM0#,20,21
sub74317-30010
main74317-30010-C0i200508
BLACK,TRIM2#
sub74317-30010
main74317-30010-E3i200508
DK.BROWN,TRIM4#
sub74317-30010
74318COVER, VISOR BRACKET, LH
main74317-30010-A2i200508
ECRU,TRIM0#
sub74317-30010
main74317-30010-A2i200105-200508
ECRU,TRIM0#,20,21
sub74317-30010
main74317-30010-A2i200508
ECRU,TRIM0#,5#
sub74317-30010
main74317-30010-C0i200508
BLACK,TRIM2#
sub74317-30010
main74317-30010-E3i200508
DK.BROWN,TRIM4#
sub74317-30010
74320VISOR ASSY, LH
main74320-24181-A0i200708
TAIWAN SPEC,ECRU,TRIM0#
main74320-24181-C0i200708
TAIWAN SPEC,BLACK,TRIM2#
main74320-24181-E0i200708
TAIWAN SPEC,DK. BROWN,TRIM4#
main74320-24200-A0i200105-200208
W(AIR BAG CAUTION),ECRU,TRIM0#,20,21
sub74320-24201
main74320-24201-A0i200208-200508
W(AIR BAG CAUTION),ECRU,TRIM0#,20,21
main74320-24201-A0i200508
ECRU,TRIM0#
main74320-24201-C0i200508
BLACK,TRIM2#
main74320-24201-E0i200508
DK. BROWN,TRIM4#
main74320-24210-A0i200105-200208
ECRU,TRIM0#,20,21
sub74320-24221
main74320-24211-A0i200508
ECRU,TRIM0#
main74320-24211-A0i200208-200508
ECRU,TRIM0#,20,21
main74320-24211-A0i200508
ECRU,TRIM0#,5#
main74320-24211-A0i200508
H0NG KONG SPEC,ECRU,TRIM0#
main74320-24211-C0i200508
H0NG KONG SPEC,BLACK,TRIM2#
main74320-24211-C0i200508
BLACK,TRIM2#
main74320-24211-E0i200508
H0NG KONG SPEC,DK. BROWN,TRIM4#
main74320-24211-E0i200508
DK. BROWN,TRIM4#
main74320-24220-A0i200205-200208
ECRU,TRIM0#,20,21
sub74320-24221
main74320-24221-A0i200208-200508
ECRU,TRIM0#,20,21
74348HOLDER, VISOR
main74348-12040-A1i200508
ECRU,TRIM0#,5#
sub74348-12040
main74348-12040-A1i200508
ECRU,TRIM0#
sub74348-12040
main74348-12040-A1i200105-200508
ECRU,TRIM0#,20,21
sub74348-12040
main74348-12040-C0i200508
BLACK,TRIM2#
sub74348-12040
main74348-12040-E3i200508
DK.BROWN,TRIM4#
sub74348-12040
8121
9015150022
main90151-50022
9046805114
main90468-05114

12 parts on this diagram · 1 diagram in section
