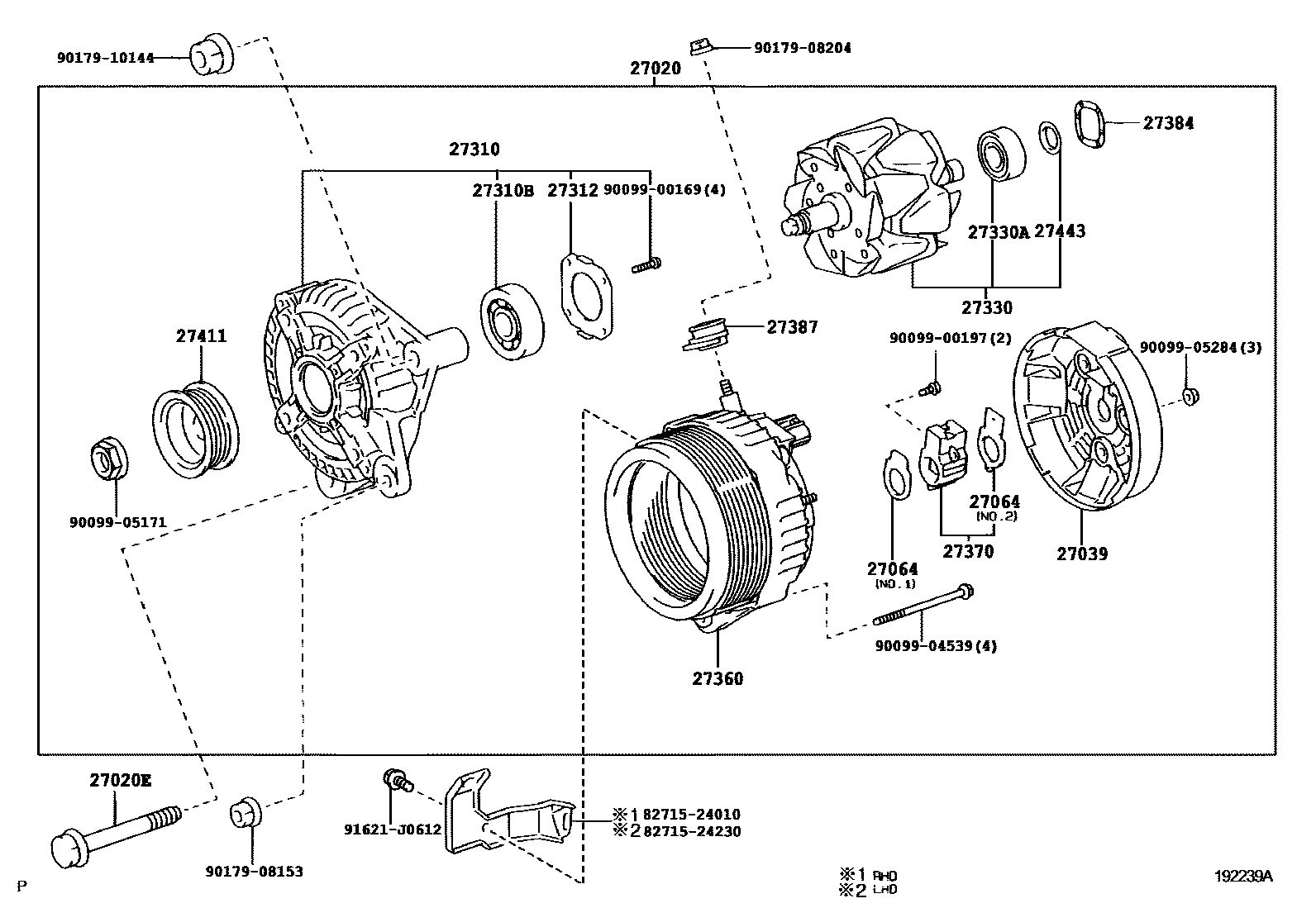

Toyota LEXUS SC430 — ALTERNATOR

27020ALTERNATOR ASSY

main27060-50280i3UZFE..UZZ40200105-200508

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90119-10791i3UZFE..UZZ40200105-200508

27039COVER, ALTERNATOR REAR END

main27039-50310i3UZFE..UZZ40200105-200508

27064SEAL, ALTERNATOR PLATE

main27064-20130i3UZFE..UZZ40200105-200508

NO.2

main27064-42010i3UZFE..UZZ40200105-200508

NO.1

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-50310i3UZFE..UZZ40200105-200508

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i3UZFE..UZZ40200105-200508

sub90099-10223

main90099-10223i3UZFE..UZZ40200508

27312PLATE, RETAINER

main27312-72100i3UZFE..UZZ40200105-200508

27330ROTOR ASSY, ALTERNATOR

main27330-20130i3UZFE..UZZ40200105-200508

sub27330-33090

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3UZFE..UZZ40200105-200508

27360COIL ASSY, ALTERNATOR

main27360-50230i3UZFE..UZZ40200508

main27360-50320i3UZFE..UZZ40200105-200508

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i3UZFE..UZZ40200105-200508

main27370-58460i3UZFE..UZZ40200508-201007

27384WASHER

main27384-50030i3UZFE..UZZ40200105-200508

27387INSULATOR, TERMINAL

main27387-50310i3UZFE..UZZ40200105-200508

27411PULLEY, ALTERNATOR

main27411-50050i3UZFE..UZZ40200105-200508

27443COVER, ALTERNATOR BEARING

main27443-63020i3UZFE..UZZ40200105-200508

8271524010BRACKET,WIRING HARNESS CLAMP

main82715-24010

8271524230BRACKET,WIRING HARNESS CLAMP

main82715-24230

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9017908153

main90179-08153

9017908204

main90179-08204

9017910144

main90179-10144

91621J0612

main91621-J0612

26 parts on this diagram · 1 diagram in section
