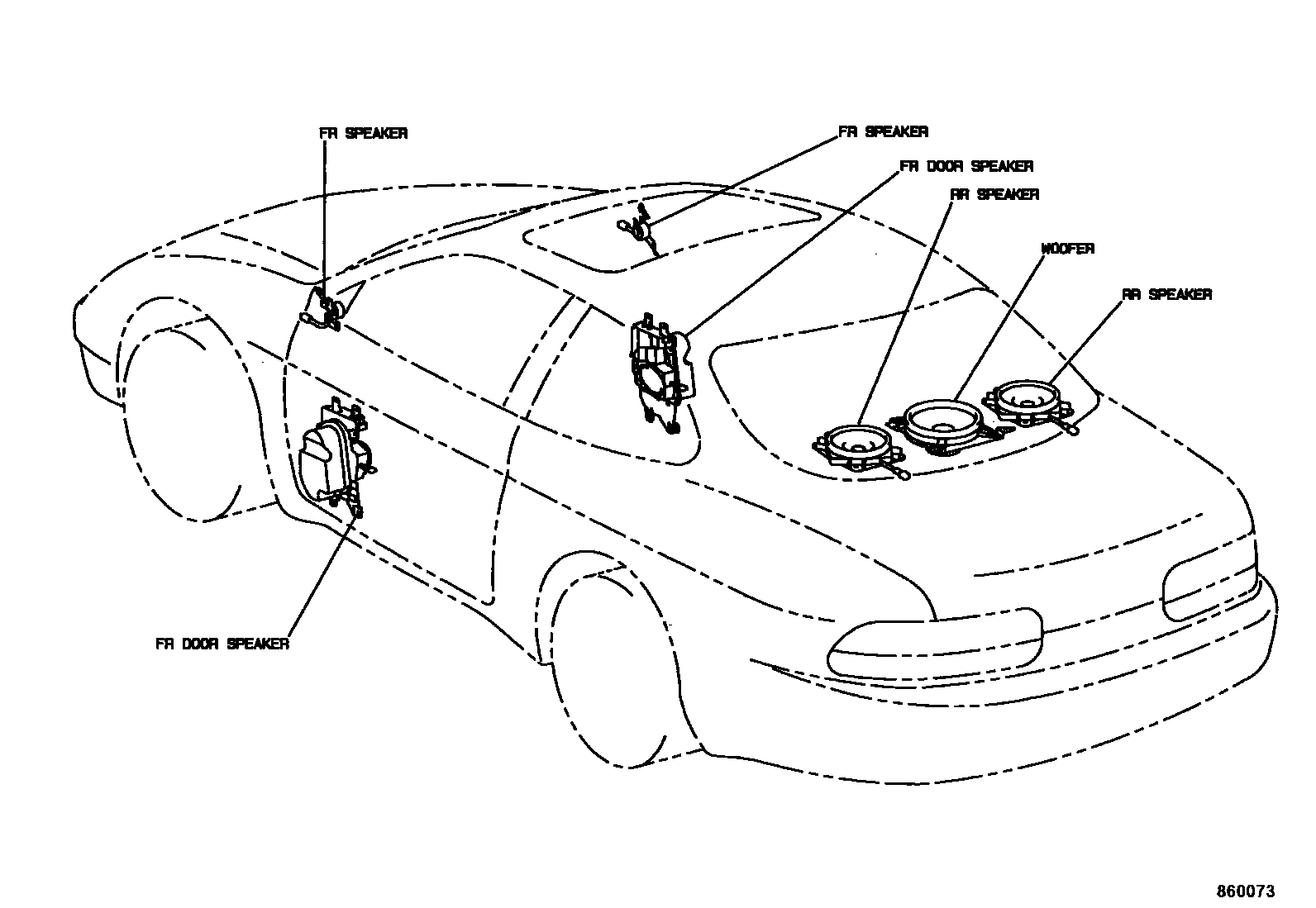

Toyota LEXUS SC300/400 — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-24190i199104-199508

main86150-24200i199508-199601

main86150-24210i199104

W(CD AUTO CHANGER),RH

main86150-24220i199104

W(CD AUTO CHANGER),LH

86160SPEAKER ASSY, FRONT NO.1

main86160-24200i199104-199508

main86160-24210i199601

main86160-24220i199104

W(CD AUTO CHANGER),RH

main86160-24230i199104

W(CD AUTO CHANGER),LH

86160BSPEAKER ASSY, REAR

main86160-24270×2i199601

PIONEER

main86160-24280×2i199401

NAKAMICHI

86160YSPEAKER ASSY, REAR NO.2

main86160-24300i199104-199401

50W

main86160-24310i199104-199401

40W

main86160-24320i199104-199401

80W

main86160-24330i199808

50W

9016360013

main90163-60013

9018906160

main90189-06160

9161260610

main91612-60610

9165160614

main91651-60614

8 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota LEXUS SC300/400

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota LEXUS SC300/400. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, REAR NO.2.
