Toyota LEXUS SC300/400 — REAR COMBINATION LAMP

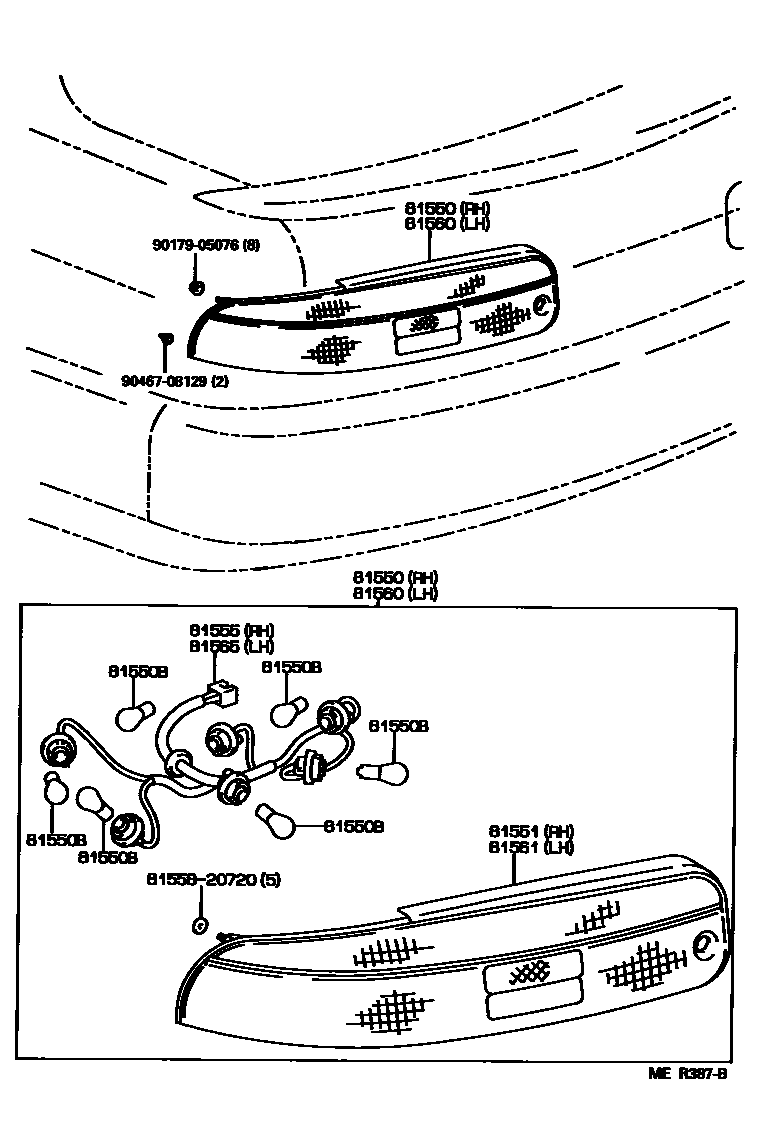

Parts diagram

81550LAMP ASSY, REAR COMBINATION, RH

main81550-24050i199104-199306

main81550-24051i199306-199401

main81550-24070i199608

main81550-24110i199401-199608

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×6i199608

12V 21W

main99132-11270×10i199104-199401

12V 27W

main99132-12050×6i199401-199608

12V 5W

main99132-21270×2i199104-199401

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-24050i199104-199306

main81551-24051i199306-199401

main81551-24070i199608

main81551-24110i199401-199608

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-24050i199104-199401

main81555-24070i199608

main81555-24110i199401-199608

81560LAMP ASSY, REAR COMBINATION, LH

main81560-24060i199104-199306

main81560-24061i199306-199401

main81560-24070i199608

main81560-24120i199401-199608

81561LENS, REAR COMBINATION LAMP, LH

main81561-24060i199104-199306

main81561-24061i199306-199401

main81561-24070i199608

main81561-24120i199401-199608

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-24050i199104-199401

main81555-24070i199608

main81555-24110i199401-199608

8155820720SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-20720

9017905076

main90179-05076

9046708129

main90467-08129

10 parts on this diagram · 3 diagrams in section

REAR COMBINATION LAMP for Toyota LEXUS SC300/400

This section contains 12 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota LEXUS SC300/400. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH, LAMP ASSY, REAR COMBINATION, LH.
