Toyota LEXUS SC300/400 — HEATING & AIR CONDITIONING - WATER PIPING

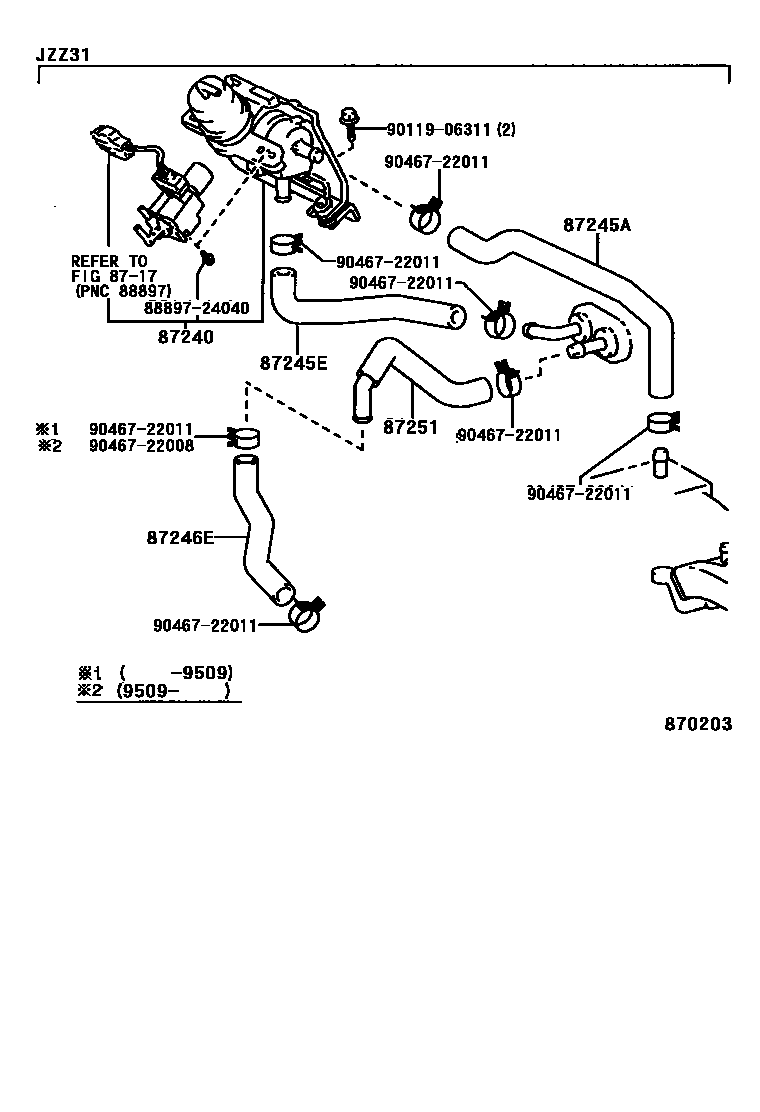

Parts diagram

8717HEATING & AIR CONDITIONING - VACUUM PIPING

→ Go to FIG 87-17

87240VALVE ASSY, HEATER WATER

main87240-24040i199104

87245AHOSE, HEATER WATER, INLET A

main87245-24220i199104-199508

main87245-24260i199108-199209

main87245-24300i199209

main87245-24370i199508-199709

main87245-24400i199709

87245EHOSE, HEATER WATER, INLET E

main87245-24290i199104

87246EHOSE, HEATER WATER, OUTLET E

main87245-24230i199104-199508

main87245-24270i199108

main87245-24380i199508-199709

main87245-24410i199709

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-24030i199104-199508

main87251-24040i199108

main87251-24060i199508-199709

main87251-24080i199709

8889724040VALVE, COOLER MAGNET

main88897-24040

9011906311

main90119-06311

9046722008

main90467-22008

9046722011

main90467-22011

10 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota LEXUS SC300/400

This section contains 10 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota LEXUS SC300/400. Key components include: HEATING & AIR CONDITIONING - VACUUM PIPING, VALVE ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, INLET E, HOSE, HEATER WATER, OUTLET E.
