Toyota LEXUS RX450HL — PRE-COLLISION SYSTEM

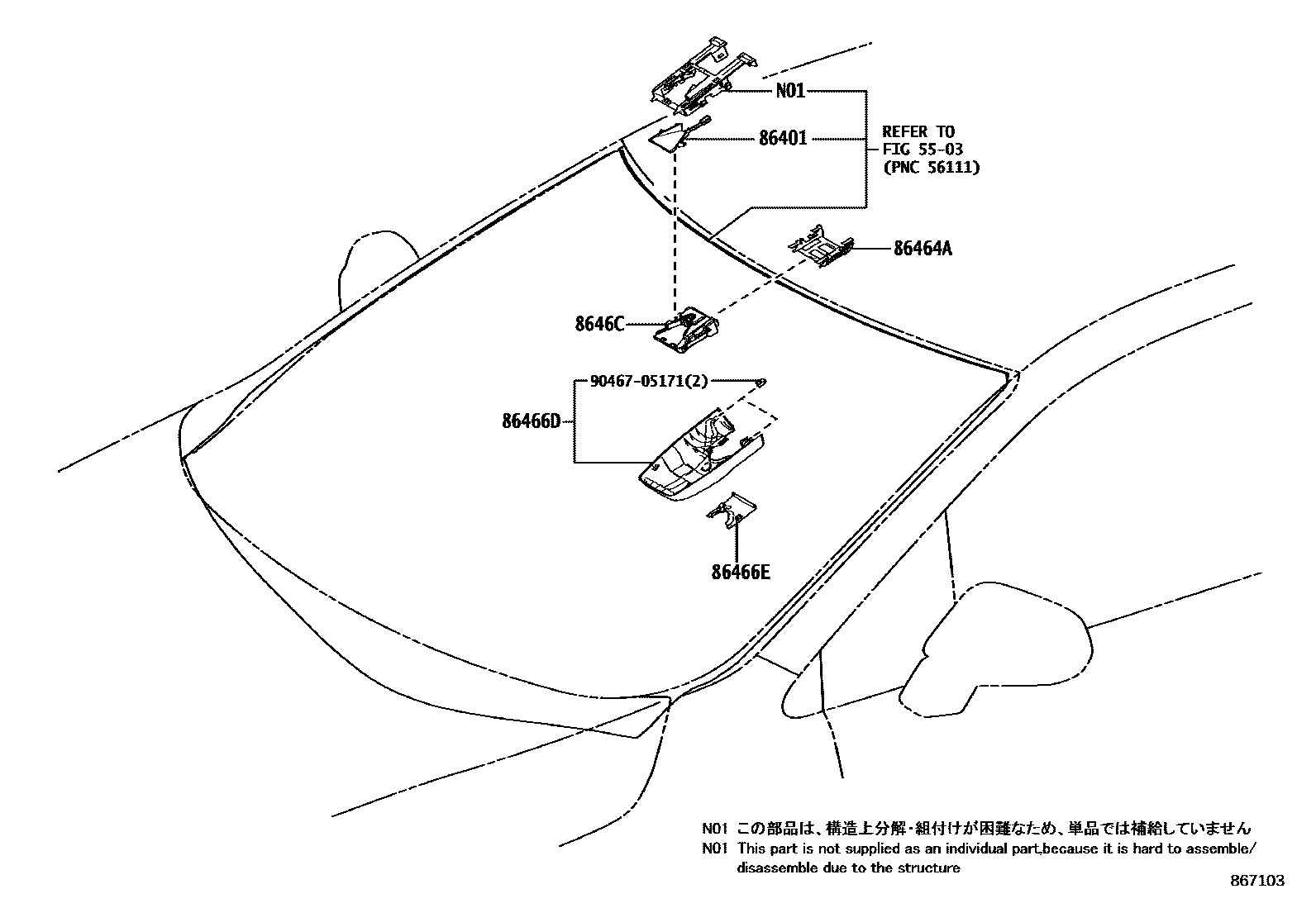

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-48011i201712-201908

main86401-48060i201908

86464ALATCH, FORWARD RECOGNITION

main86464-26010i201908

main86464-48011i201712-201908

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-48042i201712-201908

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-48050i201712-201908

8646CCAMERA, FORWARD RECOGNITION

main8646C-48022i201712-201908

main8646C-48050i201908-202007

main8646C-48051i202007-202107

main8646C-48052i202107-202111

main8646C-48053i202111

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota LEXUS RX450HL

This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota LEXUS RX450HL. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
