Toyota LEXUS RX450HL/350L — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

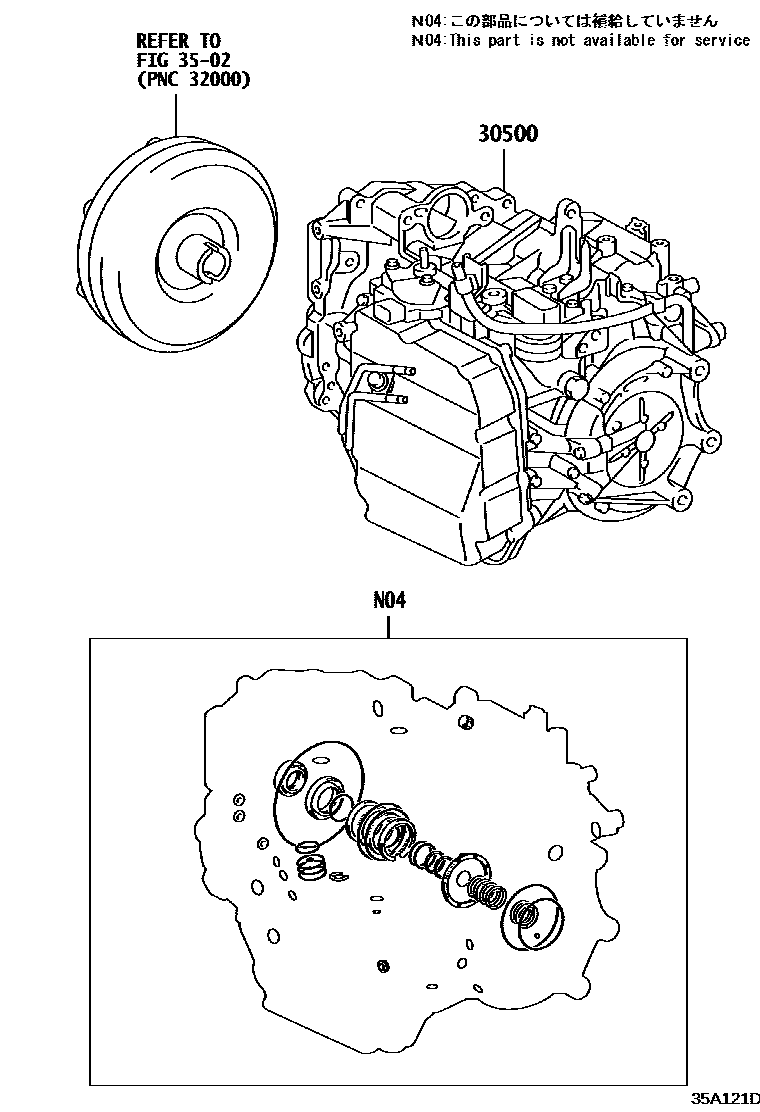

Parts diagram
30500TRANSAXLE ASSY, AUTOMATIC
main30500-48550i201712-201904
U881E
sub30500-48551
main30500-48551i201905-201908
U881E
main30500-48560i201712-201904
U881F
sub30500-48561
main30500-48561i201905-201908
U881F
3502

2 parts on this diagram · 1 diagram in section
