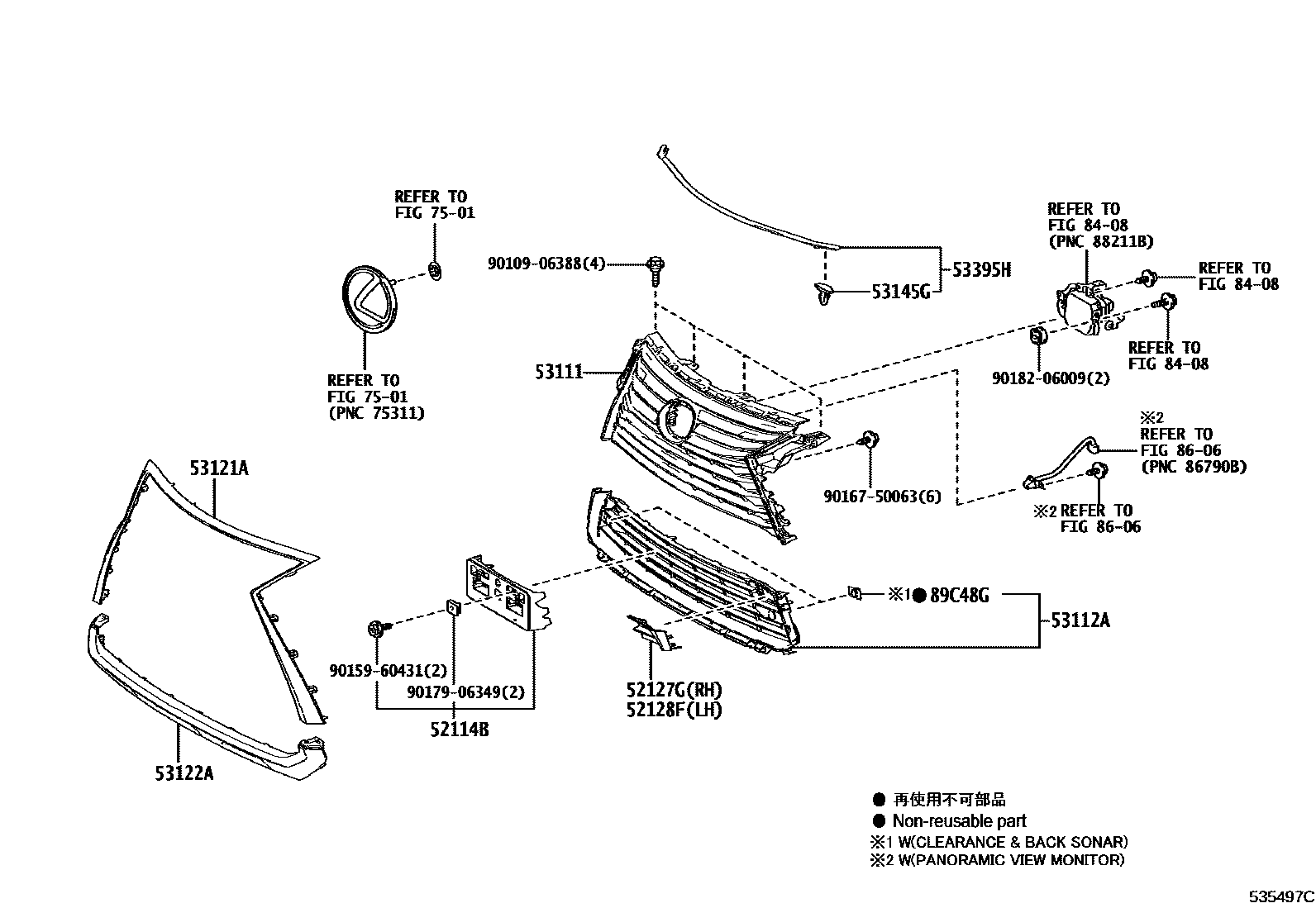

Toyota LEXUS RX450HL/350L — RADIATOR GRILLE

0001 1 0002 1

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-48400iGGL2#,GYL26201712-201908

main52114-48450iGGL2#,GYL26201908

52127GCOVER, FRONT BUMPER HOLE, RH

main52127-48140iGGL2#,GYL26201712-201908

main52127-48170iGGL2#,GYL26201908

52128FCOVER, FRONT BUMPER HOLE, LH

main52128-48110iGGL2#,GYL26201712-201908

main52128-48140iGGL2#,GYL26201908

53111GRILLE, RADIATOR

main53111-48320iGGL2#,GYL26201712-201908

NO PAINT REQ.

53112AGRILLE, RADIATOR, LOWER

main53112-48901iGGL2#,GYL26201712-201908

53121AMOULDING, RADIATOR GRILLE

main53121-48130iGGL2#,GYL26201712-201908

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-48050iGGL2#,GYL26201712-201908

53145GCLIP, RADIATOR GRILLE

main53145-60030iGGL2#,GYL26201712-201908

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-48080iGGL2#,GYL26201712-201908

main53395-48100iGGL2#,GYL26201908

7501

8408

8606

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

9010906388

main90109-06388

9015960431

main90159-60431

9016750063

main90167-50063

9017906349

main90179-06349

9018206009

main90182-06009

18 parts on this diagram · 2 diagrams in section
