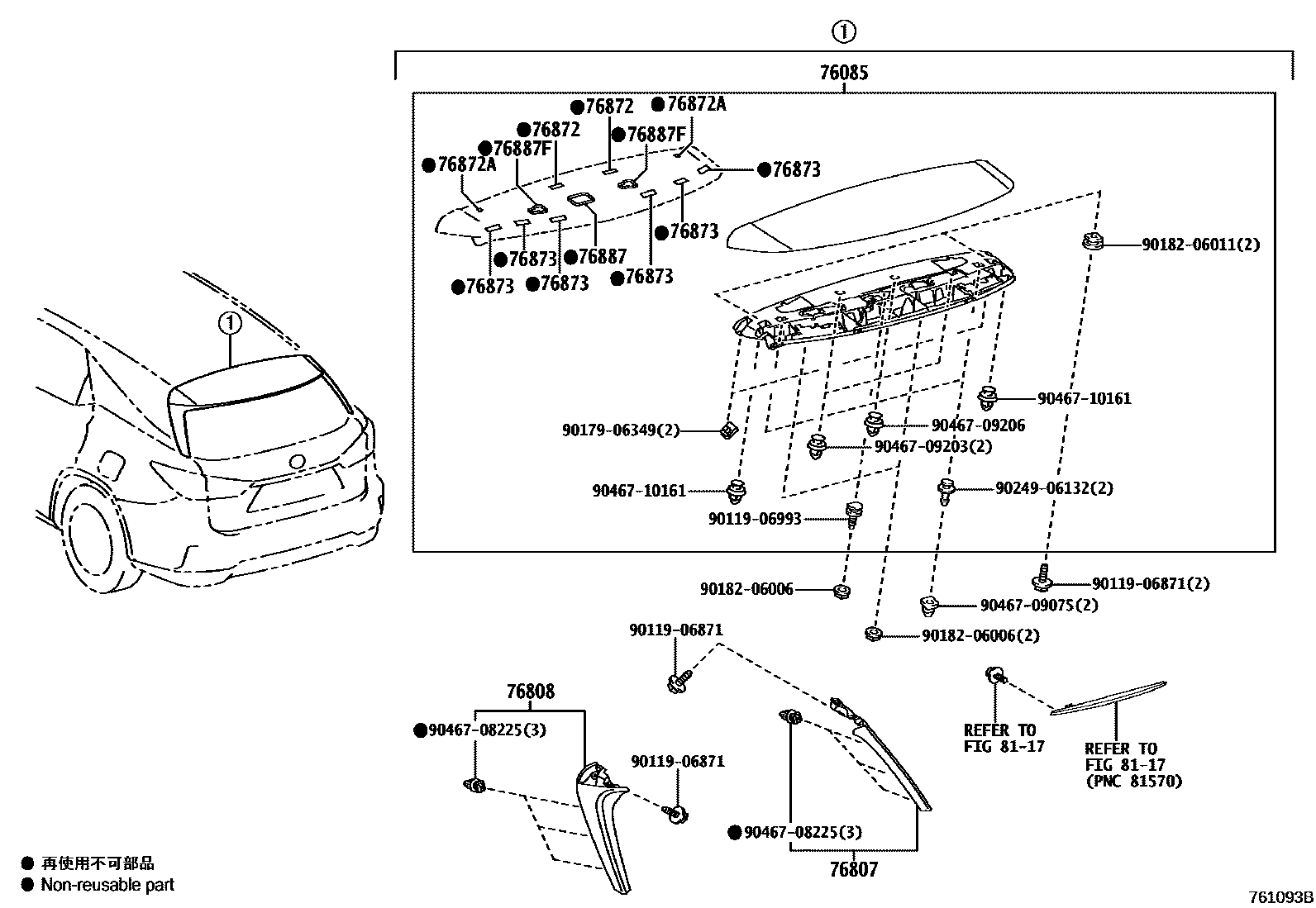

Toyota LEXUS RX450HL/350L — MUDGUARD & SPOILER

0001 1 0002 1

76085SPOILER SUB-ASSY, REAR

main76085-48908-A1iGGL2#,GYL26201712-201908

SONIC QUARTZ,085

main76085-48908-B0iGGL2#,GYL26201712-201908

SONIC TITANIUM,1J7

main76085-48908-B1iGGL2#,GYL26201712-201908

PLATINUM SILVER ME.,1J4

main76085-48908-B2iGGL2#,GYL26201712-202107

MERCURY GRAY MC.,1H9

main76085-48908-B3iGGL2#,GYL26202107

SONIC CHROME,1L1

main76085-48908-B4iGGL2#,GYL26202107

SONIC IRIDIUM,1L2

main76085-48908-C1iGGL2#,GYL26201712-201908

BLACK,212

main76085-48908-C2iGGL2#,GYL26201712-201908

GRAPHITE BLACK GF.,223

main76085-48908-D0iGGL2#,GYL26201712-201908

RED MC.CS.,3R1

main76085-48908-E0iGGL2#,GYL26201712-201908

SLEEK ECRU ME.,4U7

main76085-48908-E1iGGL2#,GYL26201712-202107

AMBER CS.,4X2

main76085-48908-E2iGGL2#,GYL26201908

ICE ECRU M.M.,4X8

main76085-48908-G0iGGL2#,GYL26201908

TERRANE KHAKI M.M.,6X4

main76085-48908-J0iGGL2#,GYL26201712-201908

DEEP BLUE MC.,8X5

76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH

main76807-48030iGGL2#,GYL26201712-201908

76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH

main76808-48030iGGL2#,GYL26201712-201908

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48011iGGL2#,GYL26201712-201908

76872APROTECTOR, REAR SPOILER, NO.1

main76872-48040iGGL2#,GYL26201712-201908

76873PROTECTOR, REAR SPOILER, NO.2

main76873-78010iGGL2#,GYL26201712-201908

76887SEAL, REAR SPOILER

main76887-48040iGGL2#,GYL26201712-201908

76887FSEAL, REAR SPOILER, NO.2

main76887-48050iGGL2#,GYL26201712-201908

8117

9011906871

main90119-06871

9011906993

main90119-06993

9017906349

main90179-06349

9018206006

main90182-06006

9018206011

main90182-06011

9024906132

main90249-06132

9046708225

main90467-08225

9046709075

main90467-09075

9046709203

main90467-09203

9046709206

main90467-09206

9046710161

main90467-10161

20 parts on this diagram · 2 diagrams in section
