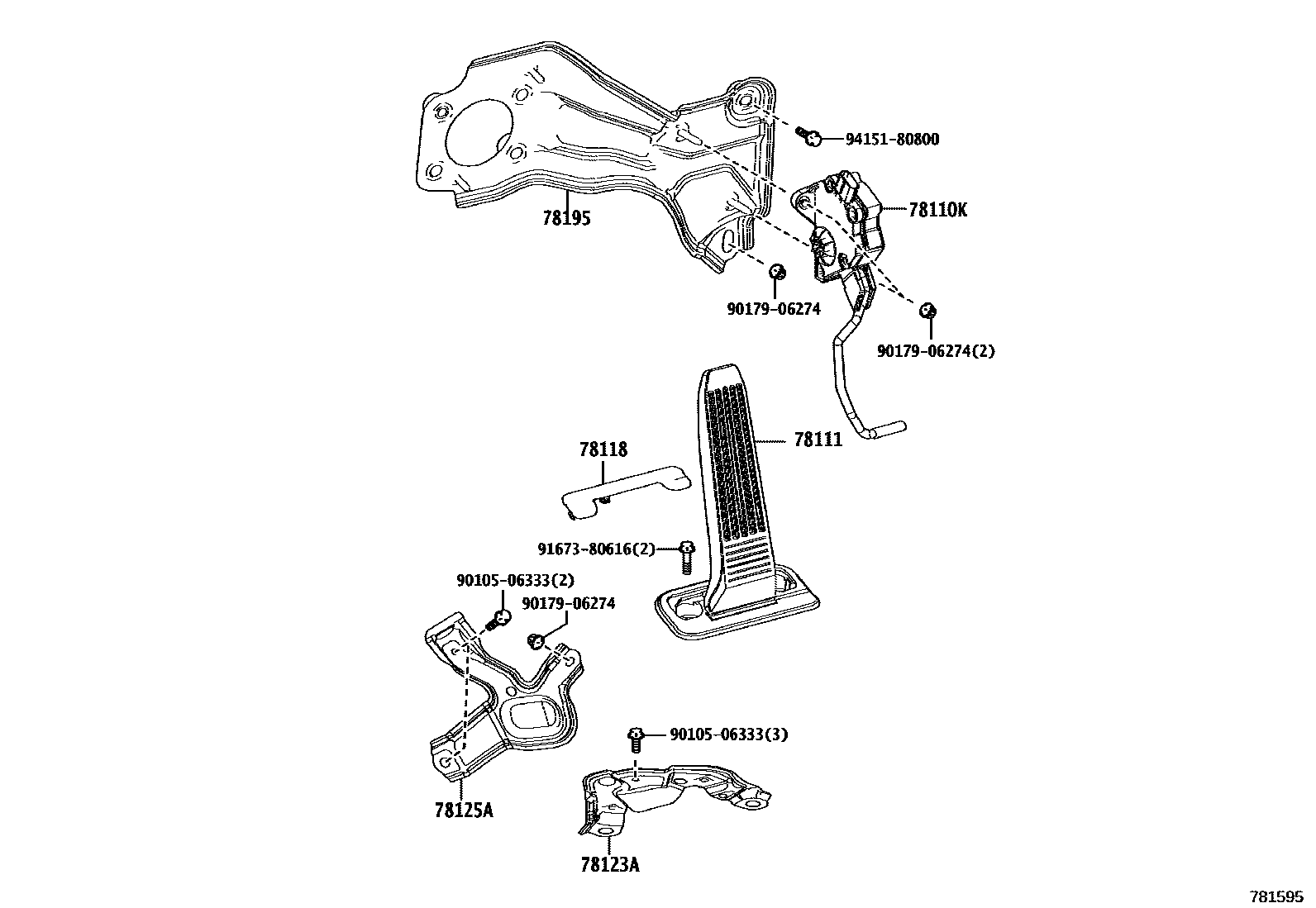

Toyota LEXUS RX450HL/350L — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-48121iGGL2#,GYL26201712-201908

78111PEDAL, ACCELERATOR

main78101-48050iGGL2#,GYL26201712-201908

78118PAD, ACCELERATOR PEDAL

main78117-48010iGGL2#,GYL26201712-201908

78123AREINFORCEMENT, ACCELERATOR PEDAL ROD

main78123-48010iGGL2#,GYL26201712-201908

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-48030iGGL2#,GYL26201712-201908

78195BRACKET, ACCELERATOR LINK

main78195-48010iGGL2#,GYL26201712-201908

9010506333

main90105-06333

9017906274

main90179-06274

9167380616

main91673-80616

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
