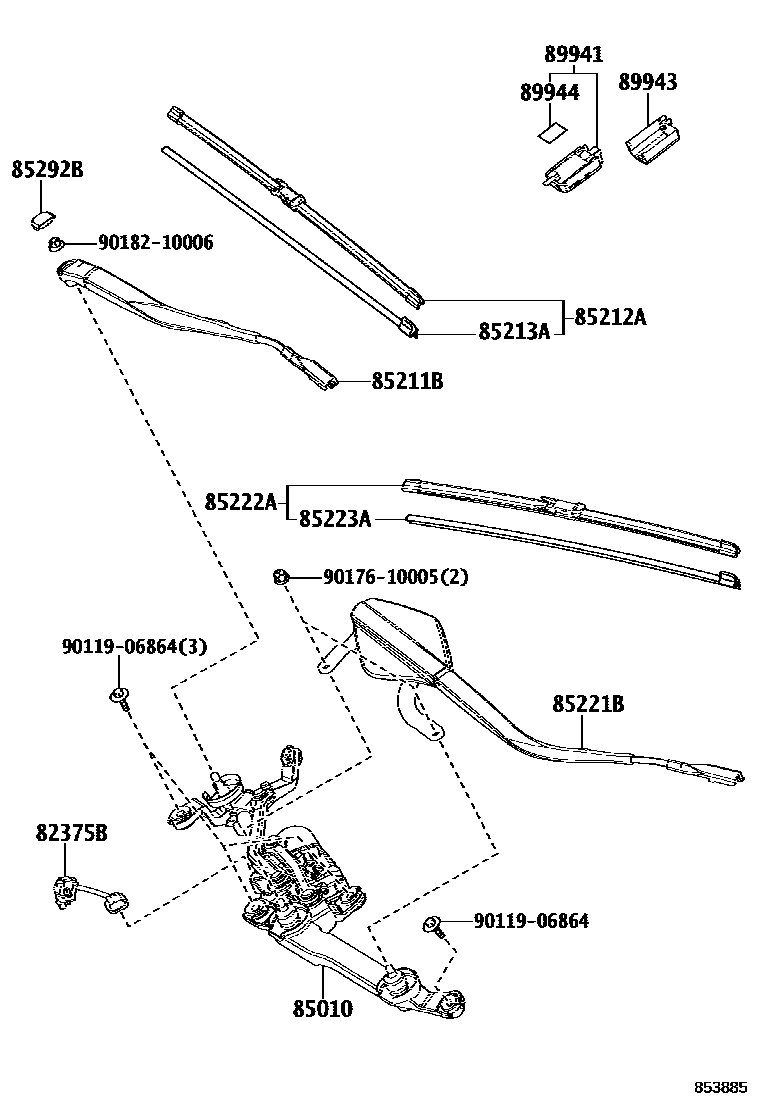

Toyota LEXUS RX450HL/350L — WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-48030iGGL26,GYL26201712-201908

85010MOTOR & LINK ASSY, FR WIPER

main85010-48260iGGL26,GYL26..RHD201712-201908

main85010-48270iGGL26,GYL26..LHD201712-201908

85211BARM, FRONT WIPER, RH

main85211-48190iGGL26,GYL26..RHD201712-201908

main85211-48200iGGL26,GYL26..LHD201712-201908

85212ABLADE, FR WIPER, RH

main85212-48161iGGL26,GYL26..RHD201712-202209

main85212-48171iGGL26,GYL26..LHD201712-202209

85213ARUBBER, WIPER BLADE, RH

main85213-48011iGGL26,GYL26..RHD201712-201908

main85213-48021iGGL26,GYL26..LHD201712-201908

85221BARM, FRONT WIPER, LH

main85221-48190iGGL26,GYL26..RHD201712-201908

main85221-48200iGGL26,GYL26..LHD201712-201908

85222ABLADE, FR WIPER, LH

main85222-48171iGGL26,GYL26..RHD201712-202209

main85222-48181iGGL26,GYL26..LHD201712-202209

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-48011iGGL26,GYL26..RHD201712-201908

main85223-48021iGGL26,GYL26..LHD201712-201908

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iGGL26,GYL26201712-201908

89941SENSOR, RAIN

main89941-48080iGYL26..CHI201908

INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

89943COVER, RAIN SENSOR

main89943-48010iGYL26..CHI201908

INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

89944TAPE, RAIN SENSOR

main89944-42020iGYL26..CHI201908

INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

9011906864

main90119-06864

9017610005

main90176-10005

9018210006

main90182-10006

15 parts on this diagram · 2 diagrams in section
