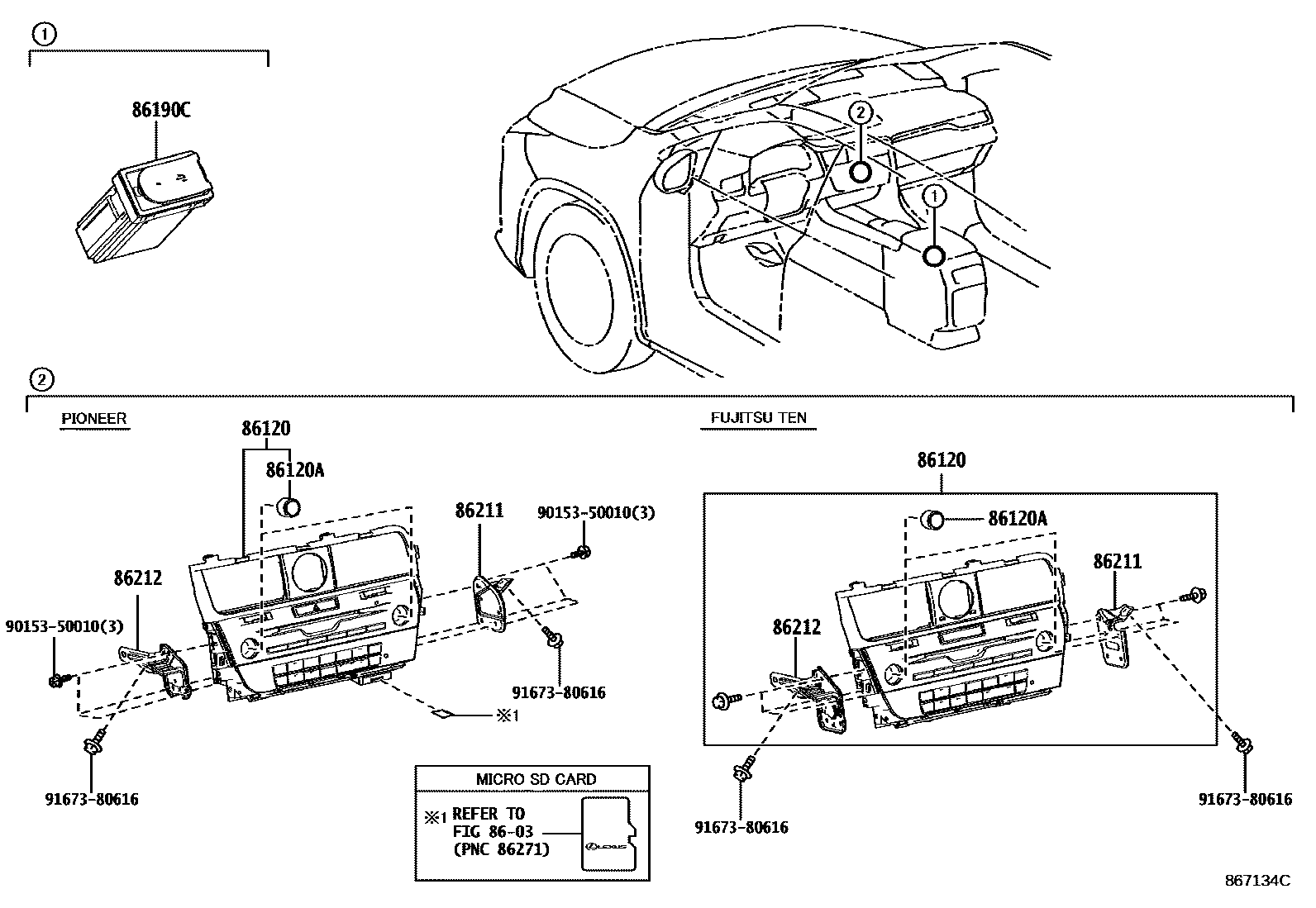

Toyota LEXUS RX450HL/350L — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1AMPLIFIER 0006 1AMPLIFIER 0007 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86140-48490iGGL26,GYL26..GCC201712-201908

FUJITSU TEN

main86140-48540iGGL26,GYL26..LHD..GEN201712-201908

FUJITSU TEN

main86140-48560iGGL26,GYL26..RHD201712-201812

FUJITSU TEN

sub86140-48561

main86140-48561iGGL26,GYL26..RHD201901-201908

DENSO TEN

main86140-48880iGGL26,GYL26..GCC201908-202209

PIONEER

main86140-48A30iGGL26,GYL26..LHD..GEN201908-202209

PIONEER

main86140-48A50iGGL26,GYL26..RHD201908-202209

PIONEER

main86140-48B30iGYL26..CHI201908-202007

PIONEER

main86140-48E40iGYL26..CHI202007-202209

PIONEER

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22112iGGL26..LHD..GEN201712-201908

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

main90010-22112iGGL26,GYL26..LHD..GEN201712-201908

BRAZIL SPEC&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)

main90010-22112iGGL26,GYL26..LHD..GEN201712-201908

BRAZIL SPEC&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER, *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)

main90010-22112iGGL26,GYL26..LHD..GEN201712-201908

AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)

main90010-22112iGGL26,GYL26..LHD..GEN201712-201908

AUDIO-*EMV & DVD&SPEAKER-15SPEAKER, *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)

main90010-22113iGGL26,GYL26..RHD201712-201908

TAIWAN SPEC

main90010-22113iGGL26,GYL26..RHD201712-201908

TAIWAN SPEC&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)

main90010-22113iGGL26,GYL26..RHD201712-201908

TAIWAN SPEC&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER, *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)

main90010-22113iGGL26,GYL26..RHD201712-201908

TAIWAN SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

main90010-22133iGYL26..RHD201908-202209

HONGKONG SPEC&AUDIO-DVD&SPEAKER-15SPEAKER, *MAR

main90010-22133iGGL26,GYL26..LHD..(GCC,GEN)201908-202209

HONGKONG SPEC&AUDIO-LEXUS DISPLAY AUDIO/CD

main90010-22133iGGL26,GYL26..LHD..(GCC,GEN)201908-202209

HONGKONG SPEC&AUDIO-DVD&SPEAKER-12SPEAKER

main90010-22133iGGL26,GYL26..LHD..(GCC,GEN)201908-202209

MACAO SPEC&AUDIO-LEXUS DISPLAY AUDIO/CD

main90010-22133iGGL26,GYL26..LHD..(GCC,GEN)201908-202209

MACAO SPEC&AUDIO-DVD&SPEAKER-12SPEAKER

main90010-22133iGGL26,GYL26..LHD..(GCC,GEN)201908-202209

MACAO SPEC&AUDIO-DVD&SPEAKER-15SPEAKER, *MAR

main90010-22134iGYL26..CHI;GGL26,GYL26..RHD201908-202209

TAIWAN SPEC

main90010-22134iGYL26..CHI;GGL26,GYL26..RHD201908-202209

TAIWAN SPEC&AUDIO-DVD&SPEAKER-12SPEAKER

main90010-22134iGYL26..CHI;GGL26,GYL26..RHD201908-202209

TAIWAN SPEC&AUDIO-DVD&SPEAKER-15SPEAKER, *MAR

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24030iGGL26,GYL26201908

main86190-78010iGGL26,GYL26201712-201908

86211BRACKET, RADIO, NO.1

main86211-48210iGGL26,GYL26..RHD201712-201908

main86211-48220iGGL26,GYL26..LHD201712-201908

main86211-48250iGGL26,GYL26..RHD201908

main86211-48260iGGL26,GYL26..LHD201908

86212BRACKET, RADIO, NO.2

main86212-48210iGGL26,GYL26..RHD201712-201908

main86212-48220iGGL26,GYL26..LHD201712-201908

main86212-48240iGGL26,GYL26..RHD201908

main86212-48250iGGL26,GYL26..LHD201908

9015350010

main90153-50010

9167380616

main91673-80616

8 parts on this diagram · 7 diagrams in section
