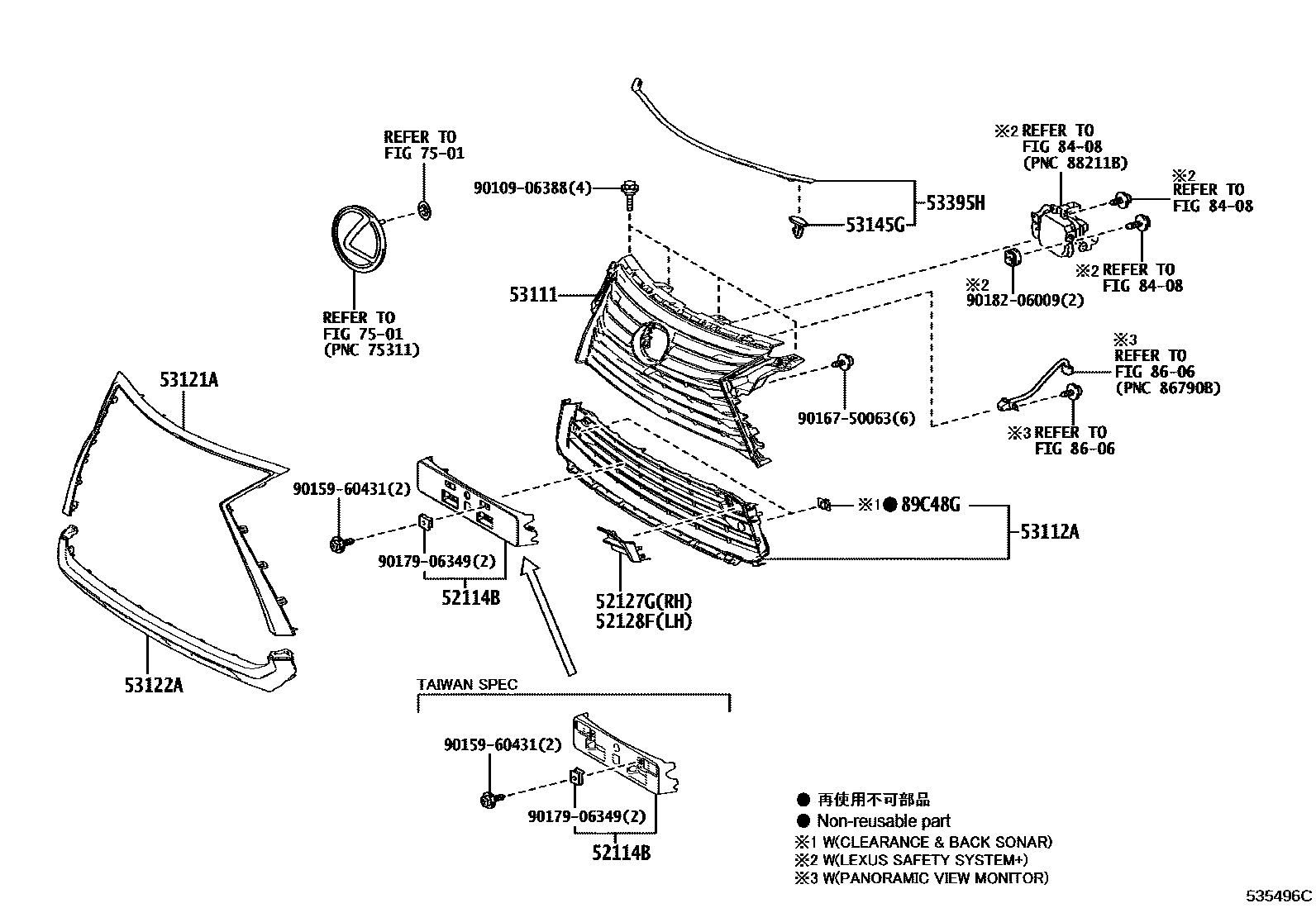

Toyota LEXUS RX450HL/350L — RADIATOR GRILLE
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
52127GCOVER, FRONT BUMPER HOLE, RH
52128FCOVER, FRONT BUMPER HOLE, LH
53111GRILLE, RADIATOR
NO PAINT REQ.
53112AGRILLE, RADIATOR, LOWER
TAIWAN SPEC
TAIWAN SPEC&"VERSION L"*(L)
TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE
TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
53121AMOULDING, RADIATOR GRILLE
53122AMOULDING, RADIATOR GRILLE, LOWER
53145GCLIP, RADIATOR GRILLE
53395HSEAL, HOOD TO RADIATOR GRILLE
7501
8408
8606
89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER
9010906388
main90109-06388
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
9018206009
main90182-06009
18 parts on this diagram · 2 diagrams in section
