Toyota LEXUS RX450HL/350L — METER

0001 1COMBINATION METER 0002 1HEAD-UP DISPLAY 0003 1HEAD-UP DISPLAY

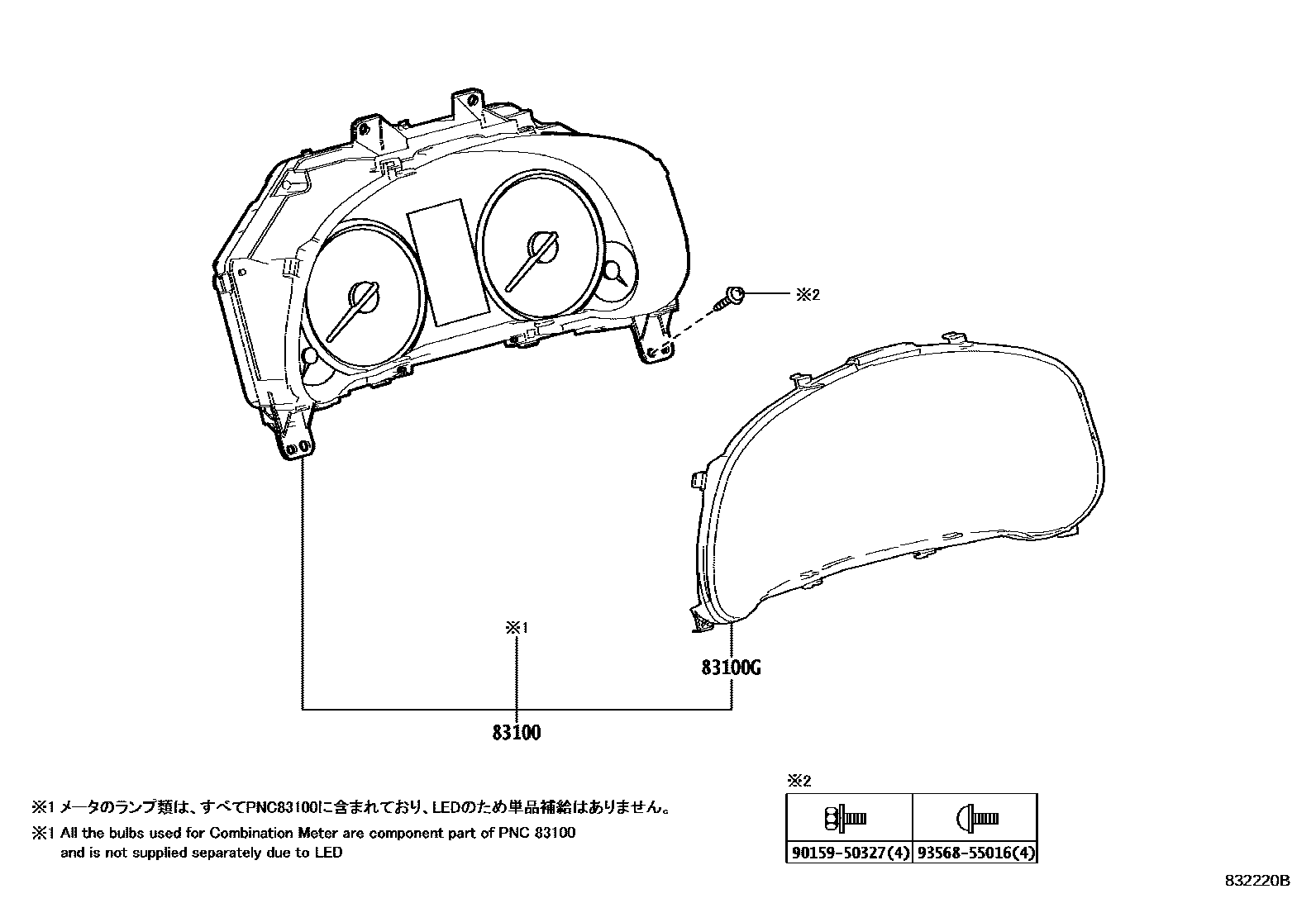

83100METER ASSY, COMBINATION

main83800-48X80iGGL26201712-201908

DENSO

main83800-48Y10iGYL26201712-201908

DENSO

main83800-4D510iGGL26201908-202007

DENSO

main83800-4D530iGYL26201908-202007

DENSO

sub83800-4D531

main83800-4DB10iGGL26202007-202012

DENSO

sub83800-4DB11

main83800-4DB11iGGL26202101

DENSO

main83800-4DB30iGYL26202007-202009

DENSO

sub83800-4DB31

main83800-4DB31iGYL26202010-202012

DENSO

sub83800-4DB32

main83800-4DB32iGYL26202101-202106

DENSO

sub83800-4DF50

main83800-4DF50iGYL26..GCC,GEN202107-202110

DENSO

main83800-4DF51iGYL26202110

DENSO

83100GGLASS, COMBINATION METER

main83852-48S30iGGL26,GYL26201712-202109

9015950327

main90159-50327

9356855016

main93568-55016

4 parts on this diagram · 3 diagrams in section
