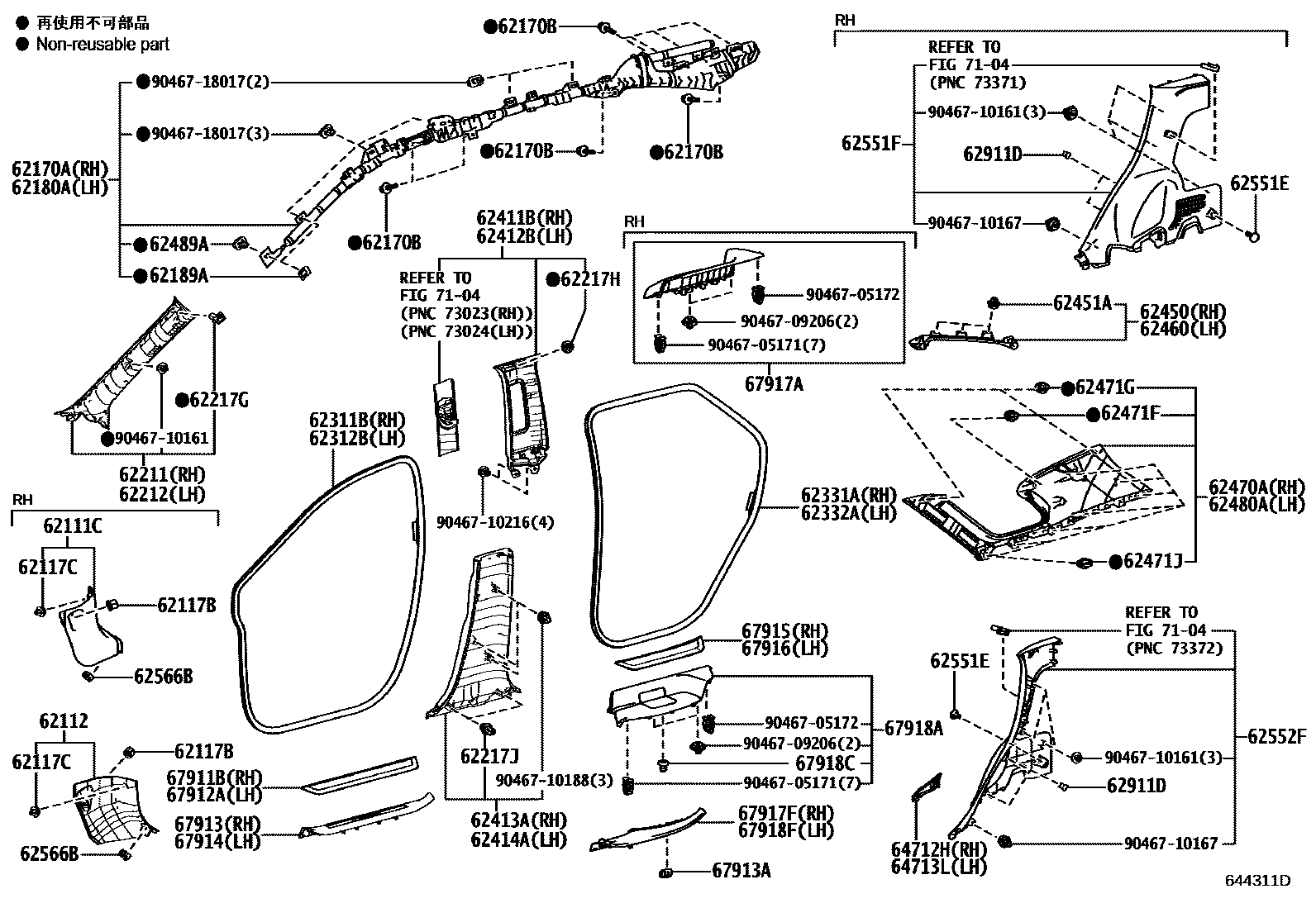

Toyota LEXUS RX450HL/350L — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
62212GARNISH, FRONT PILLAR, LH
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62217JCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
62450GARNISH ASSY, ROOF SIDE RAIL, REAR RH
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
62451ACLIP, SIDE GARNISH
62460GARNISH ASSY, ROOF SIDE RAIL, REAR LH
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
COLOR:RED
COLOR:BLUE
62471GCLIP, ROOF SIDE INNER GARNISH
COLOR:BLUE
62471JCLIP (FOR ROOF SIDE GARNISH)
COLOR:RED
62480AGARNISH ASSY, ROOF SIDE, INNER LH
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
62489ACLIP, ROOF SIDE INNER GARNISH
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62911DHOOK, SIDE WINDOW LOCK
64712HCOVER, DECK SIDE TRIM, FRONT RH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
64713LCOVER, DECK SIDE TRIM, FRONT LH
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM04,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM04
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
67917FPLATE, REAR DOOR SCUFF, INSIDE RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
67918CCLIP(FOR REAR SCUFF PLATE)
67918FPLATE, REAR DOOR SCUFF, INSIDE LH
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
7104
9046705171
main90467-05171
9046705172
main90467-05172
9046709206
main90467-09206
9046710161
main90467-10161
9046710167
main90467-10167
9046710188
main90467-10188
9046710216
main90467-10216
9046718017
main90467-18017
58 parts on this diagram · 2 diagrams in section
