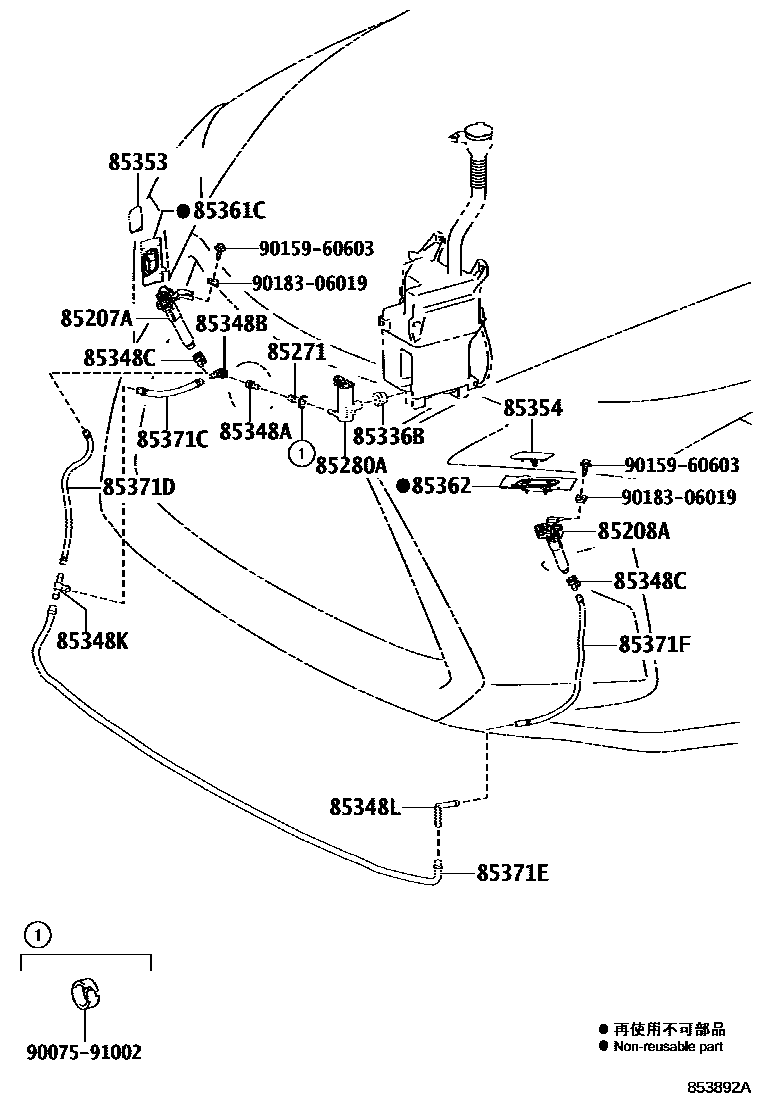

Toyota LEXUS RX450HL/350L — HEADLAMP CLEANER

0001 1 0002 1

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-48120iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main85207-48120iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main85207-48120iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-48120iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main85208-48120iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main85208-48120iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15074iGGL26,GYL26..GCC,GEN201908

L=80,HEADLAMP-LED TRIPLE BEAM TYPE

main90075-15074iGYL26..CHI201908

L=80

main90075-15074iGYL26..CHI201908

L=80,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-15074iGYL26..CHI201908

L=80,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-33030iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE

main85280-33030iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main85280-33030iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85336BPACKING, HEADLAMP CLEANER WASHER

main90099-32089iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

main90099-32089iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90099-32089iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

main90075-17012iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-17012iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17009iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

main90075-17009iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-17009iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main90075-17011iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

main90075-17011iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-17011iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main90075-17010iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

main90075-17010iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-17010iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

85353COVER, HEADLAMP WASHER, RH

main85353-48050-A1iGYL26..CHI201908

SONIC QUARTZ,085

main85353-48050-A1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC QUARTZ,085

main85353-48050-A1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC QUARTZ,085

main85353-48050-A1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC QUARTZ,085

main85353-48050-B1iGGL26,GYL26..GCC,GEN201908

SONIC TITANIUM,1J7

main85353-48050-B1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC TITANIUM,1J7

main85353-48050-B1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC TITANIUM,1J7

main85353-48050-B1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC TITANIUM,1J7

main85353-48050-B2iGYL26..CHI202107

SONIC CHROME,1L1

main85353-48050-B2iGYL26..CHI202107

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC CHROME,1L1

main85353-48050-B2iGYL26..CHI202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC CHROME,1L1

main85353-48050-B2iGGL26,GYL26..GCC,GEN202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC CHROME,1L1

main85353-48050-B3iGGL26,GYL26..GCC,GEN202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC IRIDIUM,1L2

main85353-48050-B3iGYL26..CHI202107

SONIC IRIDIUM,1L2

main85353-48050-B3iGYL26..CHI202107

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC IRIDIUM,1L2

main85353-48050-B3iGYL26..CHI202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC IRIDIUM,1L2

main85353-48050-C0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),BLACK,212

main85353-48050-C0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),BLACK,212

main85353-48050-C0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,BLACK,212

main85353-48050-C0iGGL26,GYL26..GCC,GEN201908

BLACK,212

main85353-48050-C1iGGL26,GYL26..GCC,GEN201908

GRAPHITE BLACK GF.,223

main85353-48050-C1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,GRAPHITE BLACK GF.,223

main85353-48050-C1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),GRAPHITE BLACK GF.,223

main85353-48050-C1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),GRAPHITE BLACK GF.,223

main85353-48050-D0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),RED MC.CS.,3R1

main85353-48050-D0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),RED MC.CS.,3R1

main85353-48050-D0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,RED MC.CS.,3R1

main85353-48050-D0iGGL26,GYL26..GCC,GEN201908

RED MC.CS.,3R1

main85353-48050-E0iGYL26..CHI201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE,AMBER CS.,4X2

main85353-48050-E0iGYL26..CHI201908-202107

AMBER CS.,4X2

main85353-48050-E0iGGL26,GYL26..GCC,GEN201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),AMBER CS.,4X2

main85353-48050-E0iGGL26,GYL26..GCC,GEN201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),AMBER CS.,4X2

main85353-48050-E1iGYL26..CHI201908

ICE ECRU M.M.,4X8

main85353-48050-E1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),ICE ECRU M.M.,4X8

main85353-48050-E1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),ICE ECRU M.M.,4X8

main85353-48050-E1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,ICE ECRU M.M.,4X8

main85353-48050-G0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),TERRANE KHAKI M.M.,6X4

main85353-48050-G0iGYL26..CHI201908

TERRANE KHAKI M.M.,6X4

main85353-48050-G0iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,TERRANE KHAKI M.M.,6X4

main85353-48050-G0iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),TERRANE KHAKI M.M.,6X4

main85353-48050-J1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),DEEP BLUE MC.,8X5

main85353-48050-J1iGYL26..CHI201908

DEEP BLUE MC.,8X5

main85353-48050-J1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,DEEP BLUE MC.,8X5

main85353-48050-J1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),DEEP BLUE MC.,8X5

85354COVER, HEADLAMP WASHER, LH

main85354-48050-A1iGYL26..CHI201908

SONIC QUARTZ,085

main85354-48050-A1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC QUARTZ,085

main85354-48050-A1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC QUARTZ,085

main85354-48050-A1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC QUARTZ,085

main85354-48050-B1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC TITANIUM,1J7

main85354-48050-B1iGYL26..CHI201908

SONIC TITANIUM,1J7

main85354-48050-B1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC TITANIUM,1J7

main85354-48050-B1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC TITANIUM,1J7

main85354-48050-B2iGGL26,GYL26..GCC,GEN202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC CHROME,1L1

main85354-48050-B2iGYL26..CHI202107

SONIC CHROME,1L1

main85354-48050-B2iGYL26..CHI202107

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC CHROME,1L1

main85354-48050-B2iGYL26..CHI202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC CHROME,1L1

main85354-48050-B3iGYL26..CHI202107

HEADLAMP-LED TRIPLE BEAM TYPE,SONIC IRIDIUM,1L2

main85354-48050-B3iGGL26,GYL26..GCC,GEN202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),SONIC IRIDIUM,1L2

main85354-48050-B3iGGL26,GYL26..GCC,GEN202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),SONIC IRIDIUM,1L2

main85354-48050-B3iGGL26,GYL26..GCC,GEN202107

SONIC IRIDIUM,1L2

main85354-48050-C0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),BLACK,212

main85354-48050-C0iGYL26..CHI201908

BLACK,212

main85354-48050-C0iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,BLACK,212

main85354-48050-C0iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),BLACK,212

main85354-48050-C1iGYL26..CHI201908

GRAPHITE BLACK GF.,223

main85354-48050-C1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,GRAPHITE BLACK GF.,223

main85354-48050-C1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),GRAPHITE BLACK GF.,223

main85354-48050-C1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),GRAPHITE BLACK GF.,223

main85354-48050-D0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,RED MC.CS.,3R1

main85354-48050-D0iGYL26..CHI201908

RED MC.CS.,3R1

main85354-48050-D0iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),RED MC.CS.,3R1

main85354-48050-D0iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),RED MC.CS.,3R1

main85354-48050-E0iGYL26..CHI201908-202107

AMBER CS.,4X2

main85354-48050-E0iGYL26..CHI201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE,AMBER CS.,4X2

main85354-48050-E0iGYL26..CHI201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),AMBER CS.,4X2

main85354-48050-E0iGYL26..CHI201908-202107

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),AMBER CS.,4X2

main85354-48050-E1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),ICE ECRU M.M.,4X8

main85354-48050-E1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),ICE ECRU M.M.,4X8

main85354-48050-E1iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,ICE ECRU M.M.,4X8

main85354-48050-E1iGGL26,GYL26..GCC,GEN201908

ICE ECRU M.M.,4X8

main85354-48050-G0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),TERRANE KHAKI M.M.,6X4

main85354-48050-G0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),TERRANE KHAKI M.M.,6X4

main85354-48050-G0iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE,TERRANE KHAKI M.M.,6X4

main85354-48050-G0iGGL26,GYL26..GCC,GEN201908

TERRANE KHAKI M.M.,6X4

main85354-48050-J1iGYL26..CHI201908

DEEP BLUE MC.,8X5

main85354-48050-J1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE,DEEP BLUE MC.,8X5

main85354-48050-J1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB),DEEP BLUE MC.,8X5

main85354-48050-J1iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS),DEEP BLUE MC.,8X5

85361CBRACKET, WASHER

main85361-48020iGGL26,GYL26..GCC,GEN201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main85361-48020iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

main85361-48020iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85362BRACKET, WASHER, NO.2

main85362-48020iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE

main85362-48020iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main85362-48020iGYL26..CHI201908

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85371CHOSE, HEADLAMP CLEANER, NO.1

main90075-15076iGYL26..CHI201908

L=260

main90075-15076iGYL26..CHI201908

L=260,HEADLAMP-LED TRIPLE BEAM TYPE

main90075-15076iGYL26..CHI201908

L=260,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-15076iGYL26..CHI201908

L=260,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85371DHOSE, HEADLAMP CLEANER, NO.2

main90075-15070iGYL26..CHI201908

L=140

main90075-15070iGYL26..CHI201908

L=140,HEADLAMP-LED TRIPLE BEAM TYPE

main90075-15070iGYL26..CHI201908

L=140,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90075-15070iGYL26..CHI201908

L=140,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85371EHOSE, HEADLAMP CLEANER, NO.3

main85275-48030iGYL26..CHI201908

L=2370

main85275-48030iGYL26..CHI201908

L=2370,HEADLAMP-LED TRIPLE BEAM TYPE

main85275-48030iGYL26..CHI201908

L=2370,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main85275-48030iGYL26..CHI201908

L=2370,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85371FHOSE, HEADLAMP CLEANER, NO.4

9007591002

main90075-91002

9015960603

main90159-60603

9018306019

main90183-06019

21 parts on this diagram · 2 diagrams in section
