Toyota LEXUS RX450HL/350L — FRONT SEAT & SEAT TRACK

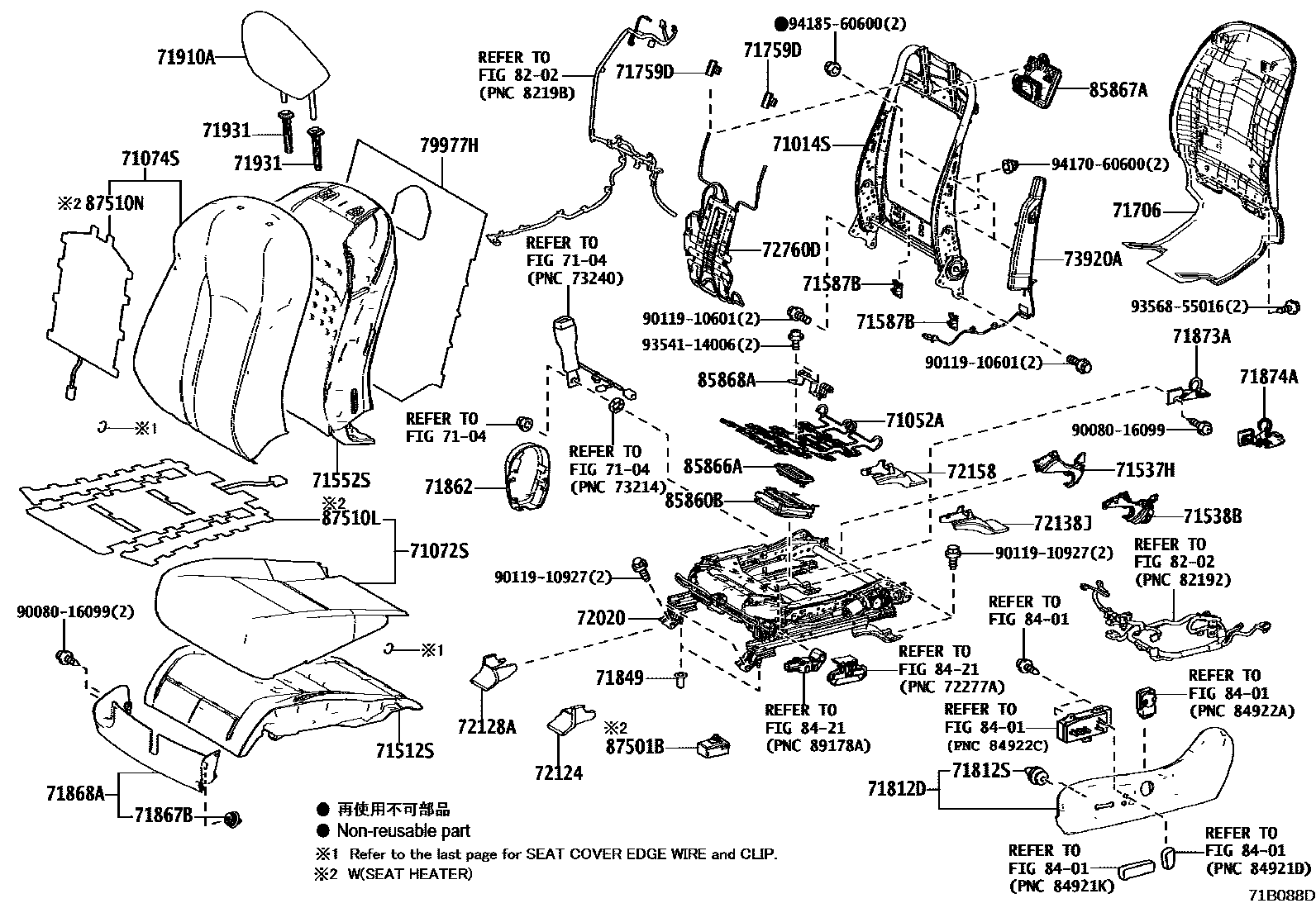

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-48100i201712-201908
main71014-48110i201712-201908
NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main71014-48110i201712-201908
"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main71014-48110i201712-201908
AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-78010i201712-201908
main71051-78020i201908
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-48A30-A4i201712-201908
IVORY,TRIM0#
main71072-48A30-C3i201712-201908
BLACK,TRIM2#
main71072-48A30-E3i201712-201908
NOBLE BROWN,TRIM4#
main71072-48A30-F3i201712-201908
TOPAZ BROWM,TRIM5#
main71072-48A40-A4i201712-201806
SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#
sub71072-48A41
main71072-48A40-A4i201712-201806
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#
sub71072-48A41
main71072-48A40-A4i201712-201806
IVORY,TRIM0#
sub71072-48A41
main71072-48A40-C3i201712-201806
SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
sub71072-48A41
main71072-48A40-C3i201712-201806
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
sub71072-48A41
main71072-48A40-C3i201712-201806
BLACK,TRIM2#
sub71072-48A41
main71072-48A40-E3i201712-201806
NOBLE BROWN,TRIM4#
sub71072-48A41
main71072-48A40-E3i201712-201806
SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#
sub71072-48A41
main71072-48A40-E3i201712-201806
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#
sub71072-48A41
main71072-48A40-F3i201712-201806
SEAT HEATER-WITH(FRONT SEAT),TOPAZ BROWM,TRIM5#
sub71072-48A41
main71072-48A40-F3i201712-201806
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),TOPAZ BROWM,TRIM5#
sub71072-48A41
main71072-48A40-F3i201712-201806
TOPAZ BROWM,TRIM5#
sub71072-48A41
main71072-48A41-A4i201807-201908
IVORY,TRIM0#
main71072-48A41-A4i201807-201908
SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#
main71072-48A41-A4i201807-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#
main71072-48A41-C3i201807-201908
BLACK,TRIM2#
main71072-48A41-C3i201807-201908
SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71072-48A41-C3i201807-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71072-48A41-E3i201807-201908
NOBLE BROWN,TRIM4#
main71072-48A41-E3i201807-201908
SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#
main71072-48A41-E3i201807-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#
main71072-48A41-F3i201807-201908
TOPAZ BROWM,TRIM5#
main71072-48A41-F3i201807-201908
SEAT HEATER-WITH(FRONT SEAT),TOPAZ BROWM,TRIM5#
main71072-48A41-F3i201807-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),TOPAZ BROWM,TRIM5#
main71072-48B80-A6i201908
IVORY,TRIM0#
main71072-48B80-C6i201908
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-48C50-A3i201712-201908
IVORY,TRIM0#
main71074-48C50-C2i201712-201908
BLACK,TRIM2#
main71074-48C50-E2i201712-201908
NOBLE BROWN,TRIM4#
main71074-48C50-F2i201712-201908
TOPAZ BROWM,TRIM5#
main71074-48C60-A3i201712-201908
IVORY,TRIM0#
main71074-48C60-A3i201712-201908
SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#
main71074-48C60-A3i201712-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#
main71074-48C60-C2i201712-201908
BLACK,TRIM2#
main71074-48C60-C2i201712-201908
SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71074-48C60-C2i201712-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#
main71074-48C60-E2i201712-201908
NOBLE BROWN,TRIM4#
main71074-48C60-E2i201712-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#
main71074-48C60-E2i201712-201908
SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#
main71074-48C60-F2i201712-201908
TOPAZ BROWM,TRIM5#
main71074-48C60-F2i201712-201908
SEAT HEATER-WITH(FRONT SEAT),TOPAZ BROWM,TRIM5#
main71074-48C60-F2i201712-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),TOPAZ BROWM,TRIM5#
main71074-48E60-A3i201908
IVORY,TRIM0#
main71074-48E60-C3i201908
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-48070i201908
main71502-48080i201712-201908
main71512-48270i201908
main71512-48280i201712-201908
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-42010-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main71537-42010-C0i201712-201908
BLACK,TRIM1#,2#,4#
main71537-42010-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main71537-42010-E0i201908-202007
NOBLE BROWN,TRIM04
main71537-42010-E0i201712-201908
NOBLE BROWN,TRIM0#,5#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-42010-C0i201712-201908
BLACK,TRIM1#,2#,4#
main71538-42010-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main71538-42010-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main71538-42010-E0i201712-201908
NOBLE BROWN,TRIM0#,5#
main71538-42010-E0i201908-202007
NOBLE BROWN,TRIM04
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-48200i201908
main71552-48210i201712-201908
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-52030i201712-201908
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-52030i201712-201908
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-48150-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main71705-48150-C0i201712-201908
BLACK,TRIM1#,2#,4#
main71705-48150-E0i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
main71705-48150-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main71705-48170-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main71705-48170-C0i202007
BLACK,TRIM0#,2#
71759DHOOK, FRONT SEATBACK, NO.2
main71759-47011i201712-201908
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-48180-C0i201712-201908
BLACK,TRIM1#,2#,4#
main71812-48180-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main71812-48180-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main71812-48180-E0i201712-201908
NOBLE BROWN,TRIM0#,5#
main71812-48180-E0i201908-202007
NOBLE BROWN,TRIM04
71812SCLIP, FRONT SEAT CUSHION SHIELD, LH
main71769-47020i201712-201908
71849CAP, SEAT ADJUSTER COVER, LH
main71848-76010i201712-201908
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-42080-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main71862-42080-C0i201712-201908
BLACK,TRIM1#,2#,4#
main71862-42080-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main71862-42080-E0i201712-201908
NOBLE BROWN,TRIM0#,5#
main71862-42080-E0i201908-202007
NOBLE BROWN,TRIM04
71867BCLIP(FOR FRONT SEAT CUSHION INNER SHIELD)
main71769-47020i201712-201908
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-48050-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main71868-48050-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main71868-48050-C0i201712-201908
BLACK,TRIM1#,2#,4#
main71868-48050-E0i201908-202007
NOBLE BROWN,TRIM04
main71868-48050-E0i201712-201908
NOBLE BROWN,TRIM0#,5#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-78020i201712-201908
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-60030i201712-201908
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-60110i201712-201908
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-78020i201712-201908
71910AHEADREST ASSY, FRONT SEAT
main71910-48A80-A0i201712-201908
IVORY,TRIM0#
main71910-48A80-C0i201712-201908
BLACK,TRIM2#
main71910-48A80-E0i201712-201908
NOBLE BROWN,TRIM4#
main71910-48A80-F0i201712-201908
TOPAZ BROWN,TRIM5#
main71910-48E10-A3i201908
IVORY,TRIM0#
main71910-48E10-C3i201908
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A4i201908-202007
W(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
sub71930-47020
main71930-47020-A4i201712-201908
W(LOCK),IVORY,TRIM0#
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),NEW ZEALAND SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),I
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),IVORY,TRIM00,01,02,03
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),IVORY,TRIM04
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),AUSTRALIA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVO
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM00,01,02
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),IVORY,TRIM04
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
sub71930-47020
main71930-47020-A4i201908-202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),BLACK,TRIM04,2#
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),AUSTRALIA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLA
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,5#,6
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),NEW ZEALAND SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),B
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,5#
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM00,01,02
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM04,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i201908-202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i201712-201908
W(LOCK),BLACK,TRIM2#,4#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),CHILE SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,T
sub71930-47020
main71930-47020-C4i202007
W(LOCK),BRAZIL SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,
sub71930-47020
main71930-47020-C4i202007
W(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#,5#,6
sub71930-47020
main71930-47020-C4i202007
W(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),BLACK,TRIM0#,2#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,1#,2#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM0#,1#,2#,4#,5#,6#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#,5#
sub71930-47020
main71930-47020-C4i202007
W(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71930-47020
main71930-47020-L1i201712-201908
W(LOCK),NOBLE BROWN,TRIM5#
sub71930-47020
main71931-47020-A4i201908-202007
W/O(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
sub71931-47020
main71931-47020-A4i201712-201908
W/O(LOCK),IVORY,TRIM0#
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),IVORY,TRIM04
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),AUSTRALIA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),I
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),NEW ZEALAND SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVERMATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN),IVORY,TRIM00,01,02,03
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM00,01,
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),IVORY,TRIM04
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
sub71931-47020
main71931-47020-A4i201908-202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,5#
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM04,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM00,01,
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN),BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),NEW ZEALAND SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVERMATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),AUSTRALIA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),B
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),BLACK,TRIM04,2#
sub71931-47020
main71931-47020-C4i201908-202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#,
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN),BLACK,TRIM0#,1#,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,1#,
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM0#,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),BRAZIL SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLAC
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),CHILE SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),BLACK,TRIM0#,2#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),AUSTRALIA SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,2#,4#,5#
sub71931-47020
main71931-47020-C4i202007
W/O(LOCK),NEW ZEALAND SPEC&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,2#,4#,5#,6#
sub71931-47020
main71931-47020-C4i201712-201908
W/O(LOCK),BLACK,TRIM2#,4#
sub71931-47020
main71931-47020-L1i201712-201908
W/O(LOCK),NOBLE BROWN,TRIM5#
sub71931-47020
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-48101i201908
main72020-48111i201712-201908
main72020-48121i201712-201908
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-48120-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main72124-48120-C0i201712-201908
BLACK,TRIM1#,2#,4#
main72124-48120-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main72124-48120-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main72124-48120-E0i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-48090-C0i201712-201908
BLACK,TRIM1#,2#,4#
main72128-48090-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main72128-48090-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main72128-48090-E0i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
main72128-48090-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-48120-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main72138-48120-C0i201712-201908
BLACK,TRIM1#,2#,4#
main72138-48120-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main72138-48120-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main72138-48120-E0i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-48120-C0i201908-202007
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
main72158-48120-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#,6#
main72158-48120-C0i201712-201908
BLACK,TRIM1#,2#,4#
main72158-48120-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main72158-48120-E0i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-48060i201712-201908
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-48050i201712-201908
79977HFELT, FRONT SEATBACK, LH
main79977-78010i201712-201908
8202
8401
8421
85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
main85860-48020i201712-201908
85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH
main85866-48010i201712-201908
85866ADUCT, SEAT CUSHION CLIMATE CONTROL, LH
main85866-48010i201712-201908
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-48030i201712-201908
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-48040i201712-201908
85868BRACKET, SEAT CUSHION CLIMATE CONTROL, RH
main85868-48010i201712-201908
85868ABRACKET, SEAT CUSHION CLIMATE CONTROL, LH
main85868-48010i201712-201908
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-48030i201712-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main87501-48030i201712-201908
"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main87501-48030i201712-201908
SEAT HEATER-WITH(FRONT SEAT)
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-48200i201712-201807
SEAT HEATER-WITH(FRONT SEAT)
sub87510-48201
main87510-48200i201712-201807
"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
sub87510-48201
main87510-48200i201712-201807
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
sub87510-48201
main87510-48201i201807-201908
"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main87510-48201i201807-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main87510-48201i201807-201908
SEAT HEATER-WITH(FRONT SEAT)
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-48070i201712-201908
"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
main87530-48070i201712-201908
SEAT HEATER-WITH(FRONT SEAT)
main87530-48070i201712-201908
SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)
9008016099
main90080-16099
9011910601
main90119-10601
9011910927
main90119-10927
9354114006
main93541-14006
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

53 parts on this diagram · 19 diagrams in section

Toyota LEXUS RX450HL/350L FRONT SEAT & SEAT TRACK — Parts Diagram | EPC Data
