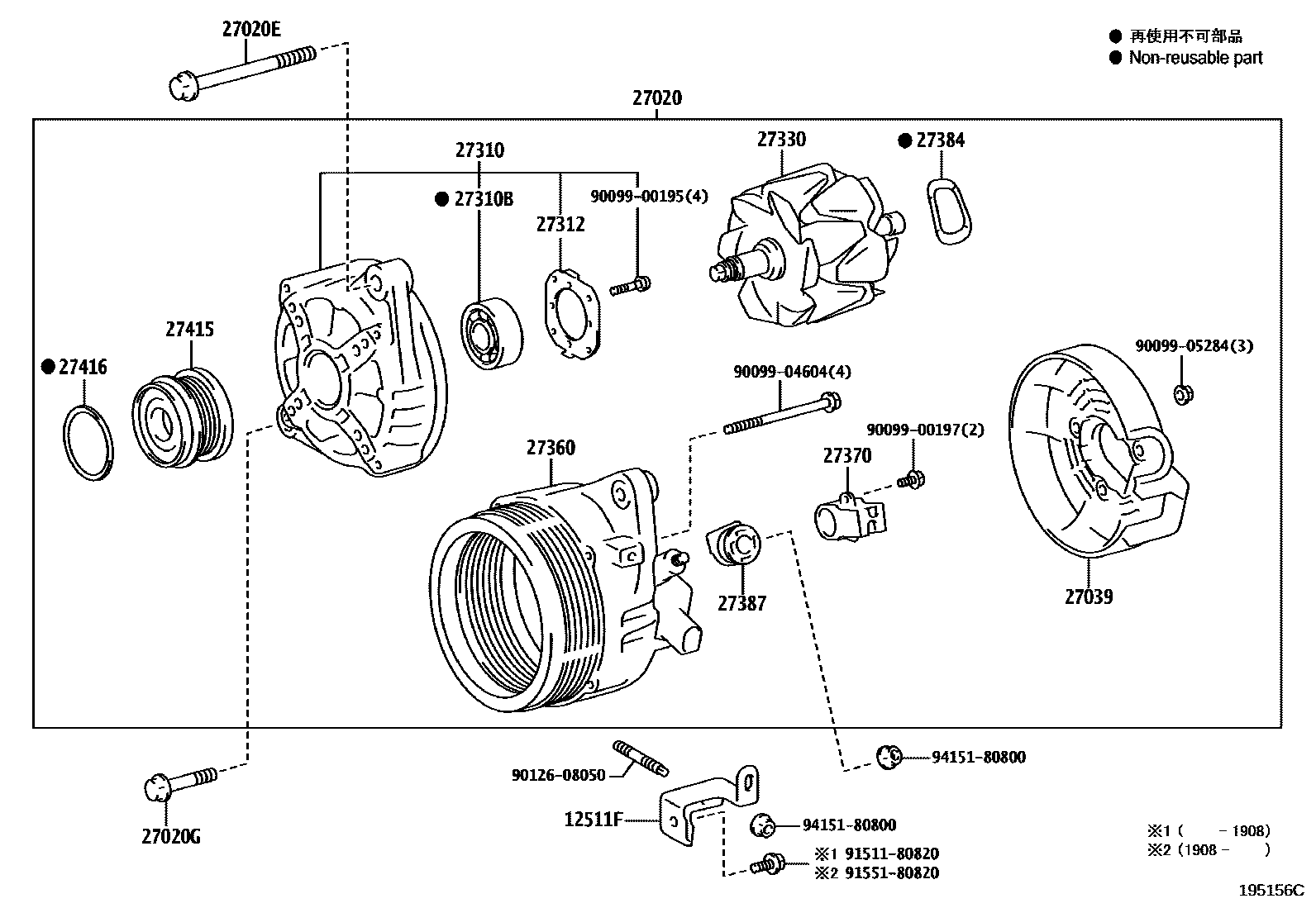

Toyota LEXUS RX450HL/350L — ALTERNATOR
12511FBRACKET, ALTERNATOR, NO.1
27020ALTERNATOR ASSY
12V 180A
27020EBOLT(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
9009900195
main90099-00195
9009900197
main90099-00197
9009904604
main90099-04604
9009905284
main90099-05284
9012608050
main90126-08050
9151180820
main91511-80820
9155180820
main91551-80820
9415180800
main94151-80800
23 parts on this diagram · 1 diagram in section
