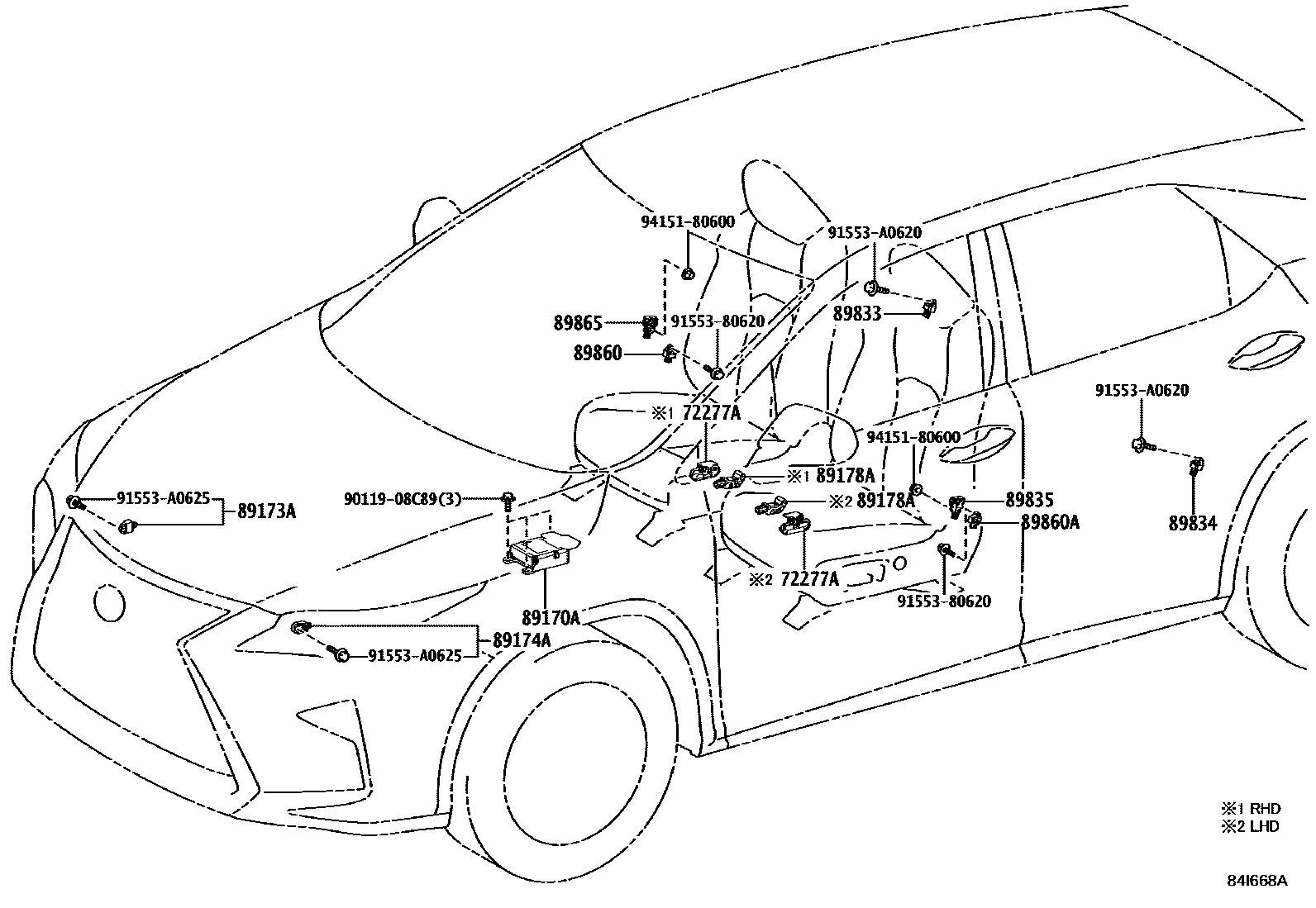

Toyota LEXUS RX450HL/350L — AIR BAG

0001 1 0002 1

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47010iGGL26,GYL26201712-201908

89170ACOMPUTER ASSY, AIRBAG

main89170-48B00iGYL26..RHD201712-201908

main89170-48B10iGGL26..RHD201712-201908

main89170-48B60iGYL26..LHD201712-201908

main89170-48B70iGGL26..LHD201712-201908

main89170-48D00iGYL26..RHD201908

main89170-48D10iGGL26..RHD201908

main89170-48D60iGYL26..CHI201908-202007

main89170-48D70iGGL26..LHD201908

main89170-48F30iGYL26..CHI202007

89173ASENSOR, AIRBAG, FRONT RH

main89173-79095iGGL26,GYL26201712-201908

89174ASENSOR, AIRBAG, FRONT LH

main89173-79095iGGL26,GYL26201712-201908

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iGGL26,GYL26201712-201908

89833SENSOR, AIRBAG, REAR RH

main89831-28040iGGL26,GYL26201712-201908

89834SENSOR, AIRBAG, REAR LH

main89831-28040iGGL26,GYL26201712-201908

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-47010iGGL26,GYL26201712-201908

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-47050

89860ASENSOR ASSY, SIDE AIRBAG, LH

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-47010iGGL26,GYL26201712-201908

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0620

main91553-A0620

91553A0625

main91553-A0625

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
