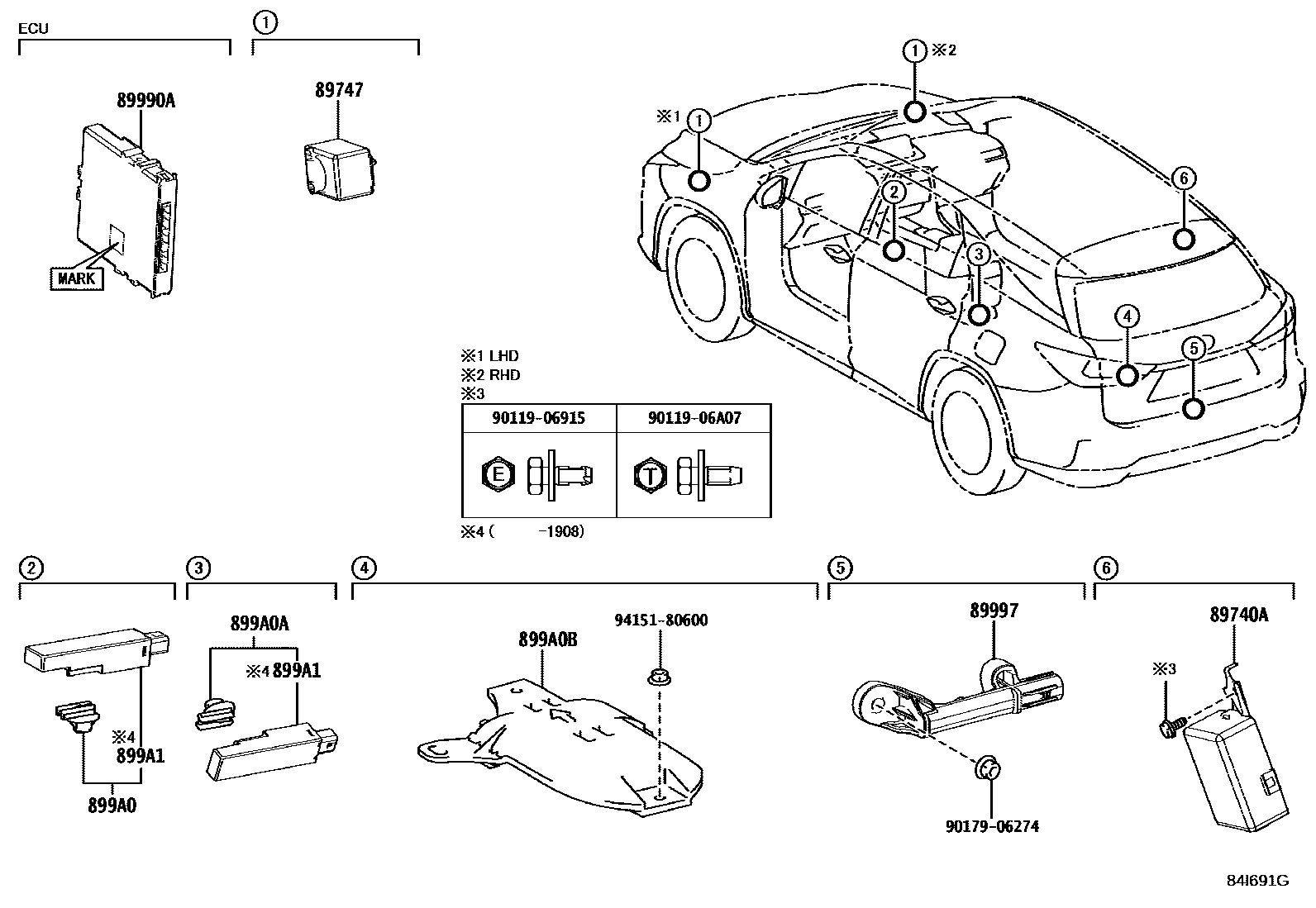

Toyota LEXUS RX450HL/350L — WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-48290iGGL26,GYL26201712-202007

main89740-48390iGGL26,GYL26202007-202205

sub89740-48391

main89740-48391iGGL26,GYL26202206

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGGL26,GYL26201712-201908

89990ACOMPUTER ASSY, SMART KEY

main89990-48470iGGL26201712-201908

main89990-48480iGYL26201803-201908

main89990-48690iGGL26201908-202007

MARK=89990-48690

main89990-48700iGYL26201908-202007

MARK=89990-48700

main89990-48890iGGL26202007-202209

MARK=89990-48890

main89990-48A00iGYL26202007-202107

MARK=89990-48A00

main89990-48A20iGYL26202107-202207

MARK=89990-48A20

sub89990-48A21

main89990-48A21iGYL26202208-202209

MARK=89990-48A21

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGGL26,GYL26201712-201908

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iGGL26,GYL26201712-201908

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iGGL26,GYL26201712-201908

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-48020iGGL26,GYL26201712-201908

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A1-60010iGGL26201712-201908

9011906915

main90119-06915

9011906A07

main90119-06A07

9017906274

main90179-06274

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
