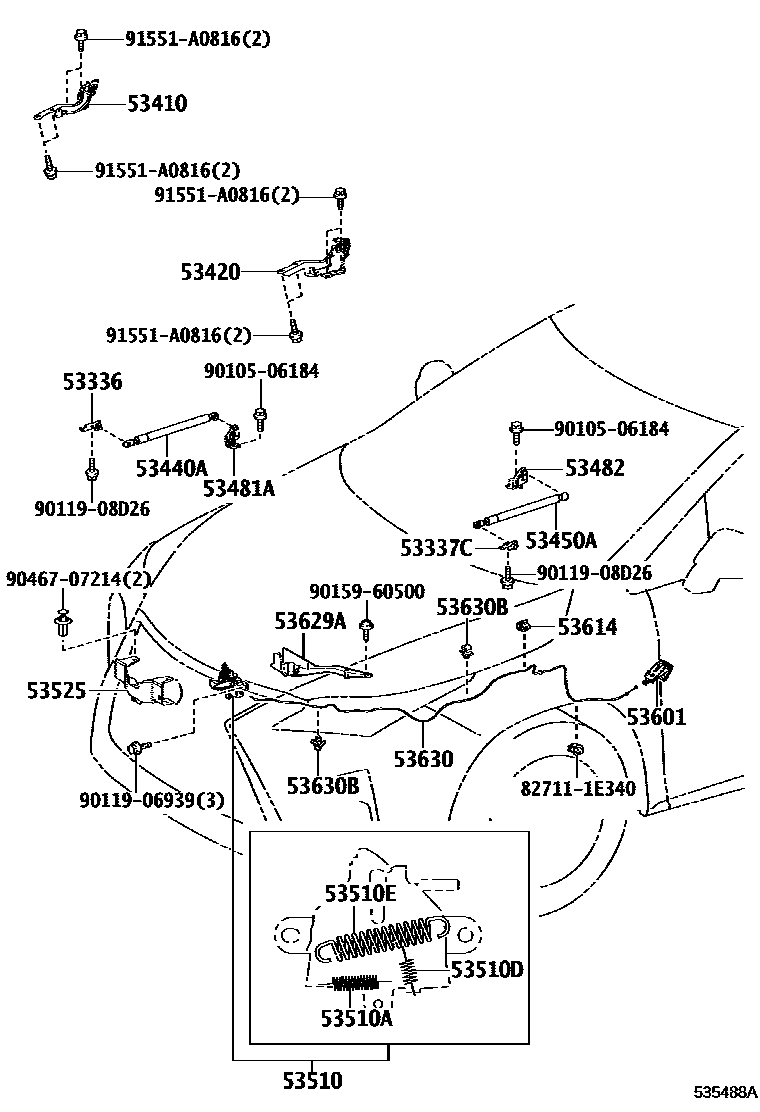

Toyota LEXUS RX450HL/350L — HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.4,CW=12
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,1#,2#,40,41,42,43,5#,6#,8#
BLACK,TRIM2#,4#
BLACK,TRIM0#,1#,2#,40,41,42,43,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,40,41,42,43
NOBLE BROWN,TRIM0#,5#,6#
53614CLAMP, HOOD LOCK CONTROL CABLE
53629ACOVER, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E340
9010506184
main90105-06184
9011906939
main90119-06939
9011908D26
main90119-08D26
9015960500
main90159-60500
9046707214
main90467-07214
91551A0816
main91551-A0816
25 parts on this diagram · 2 diagrams in section
