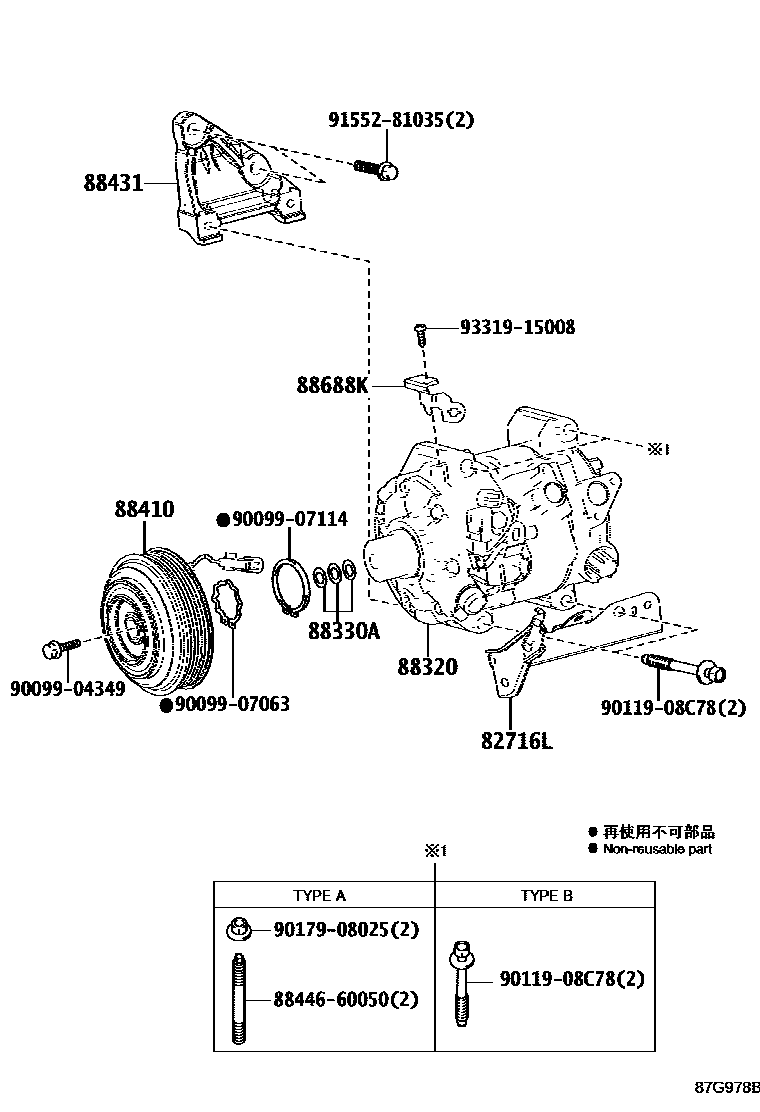

Toyota LEXUS RX450HL/350L — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

82716LBRACKET, WIRING HARNESS CLAMP

main82715-48L30iGGL26,GYL26201712-201908

88320COMPRESSOR ASSY, COOLER

main88320-58020iGGL26201712-201908

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGGL26201712-201908

88410CLUTCH ASSY, MAGNET

main88410-0N010iGGL26201712-201908

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-48050iGGL26201712-201908

main88431-48060iGYL26201803-201908

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGGL26201712-201908

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9017908025

main90179-08025

9155281035

main91552-81035

9331915008

main93319-15008

14 parts on this diagram · 4 diagrams in section
