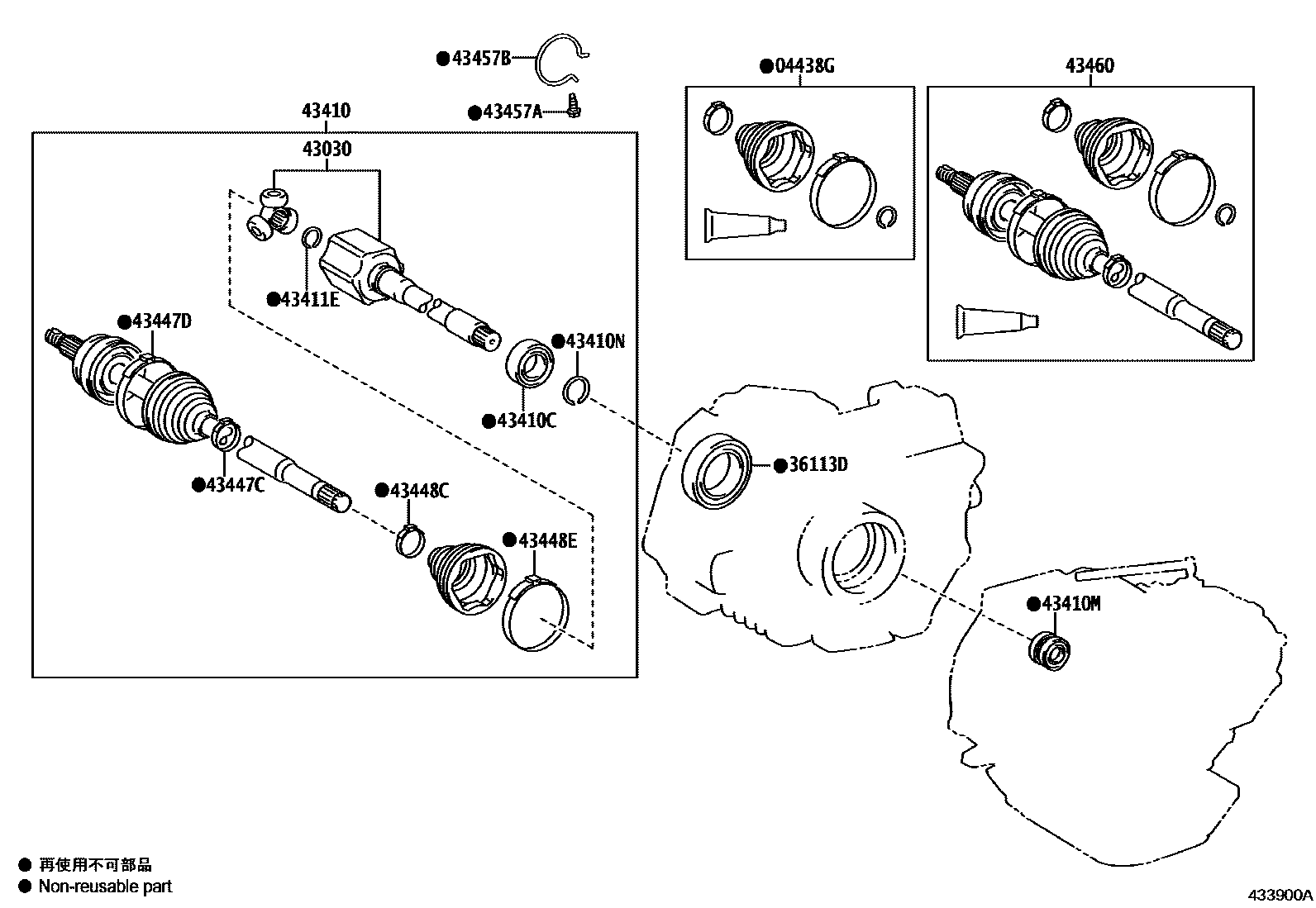

Toyota LEXUS RX450HL/350L — FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-48160iGGL26,GYL26201712-201804

sub04437-48161

main04437-48161iGGL26,GYL26201804-201908

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-36006iGGL26201712-201908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-48060iGGL26201712-201908

main43030-48070iGYL26201803-201908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-48130iGGL26201712-201908

main43410-48150iGYL26201803-201908

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iGGL26201712-201908

main90363-41003iGYL26201803-201908

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40039iGYL26201803-201908

main90316-34001iGGL26201712-201908

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-78010iGYL26201803-201908

main43425-78040iGGL26201712-201908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-58030iGGL26,GYL26201712-201908

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48160iGGL26,GYL26201712-201908

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-78050iGGL26,GYL26201712-201908

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48140iGGL26,GYL26201712-201908

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48130iGGL26,GYL26201712-201908

43457BRACKET, DRIVE SHAFT BEARING

main43457-33030iGYL26201803-201908

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iGYL26201803-201908

*10-1.25PX19.8-8.3

main90901-19060iGGL26201712-201908

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iGGL26201712-201908

main90521-78002iGYL26201803-201908

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80361iGYL26201803-201804

sub43470-80431

main43470-80362iGGL26201712-201804

sub43470-80432

main43470-80431iGYL26201804-201908

main43470-80432iGGL26201804-201908

16 parts on this diagram · 4 diagrams in section
